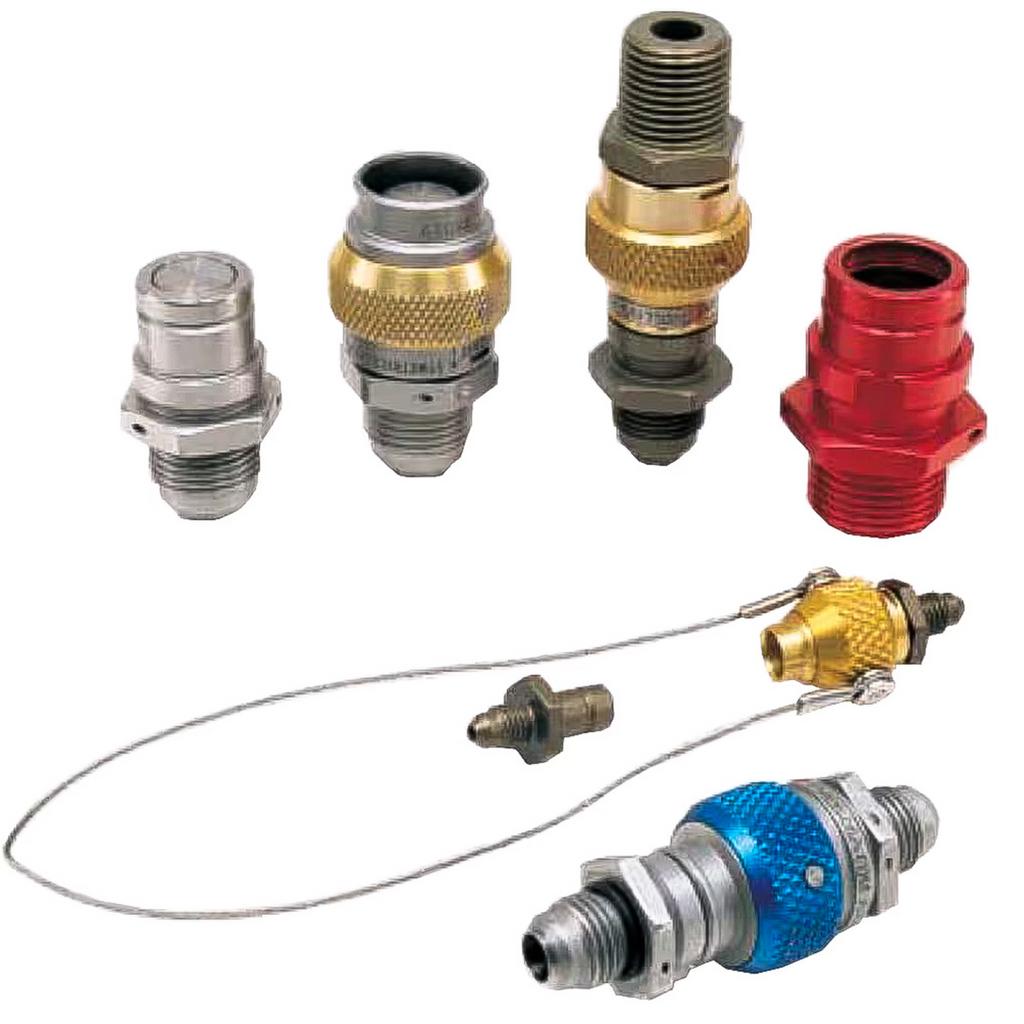

Parker Stratoflex 25408-08A-L15M - Slide-Lok Quick-Disconnect Coupling - PAO Cooling Fluid
Available for Order
Usually ships in 27 to 28 weeks
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Parker 25408-08A-L15M Quick-Disconnect Coupling is specifically designed for high-performance fluid systems using PAO cooling fluids. Constructed with durable stainless steel, this coupling ensures reliable, high-pressure connections while minimizing fluid spillage and air inclusion during disconnection. It is ideal for aerospace, industrial, and automotive applications where cleanliness, efficiency, and secure connections are paramount.
Key Features
- High Pressure Rating: With a maximum operating pressure of 4000 psig and burst pressure of 10,000 psig, this coupling is built for demanding, high-pressure fluid systems.
- Fluid Compatibility: Perfect for use with PAO cooling fluids, this coupling offers versatility for a variety of cooling systems in both industrial and aerospace applications.
- Efficient Fluid Management: The self-sealing valve minimizes fluid spillage and air inclusion during disconnection, ensuring clean and efficient operation.
- Durable Stainless Steel Construction: Made from stainless steel, the coupling is designed for long-term use, offering excellent corrosion resistance and durability under harsh conditions.
- Compact and Easy to Use: With a 1/2 inch inlet and an overall length of 2.00 inches, the coupling is ideal for installations with space constraints while providing reliable, high-performance connections.
Applications
- Aerospace and industrial cooling systems (PAO cooling fluid)
- Fluid systems requiring high-pressure handling
- Automotive cooling systems
Specifications
- Part Number: 25408-08A-L15M
- Line Size (Inlet): 1/2 inch
- Body Material: Stainless Steel
- Fluid Type: PAO Cooling Fluid
- Maximum Operating Pressure: 4000 psig
- Minimum Operating Pressure: -5 psig
- Proof Pressure: 6000 psig
- Burst Pressure: 10,000 psig
- Maximum Fluid Temperature: 350°F
- Minimum Fluid Temperature: -65°F
- Maximum Spill Volume at Disconnection: 0.004 cc
- Maximum Air Inclusion: 0.006 cc
- Maximum Pressure to Connect: 120 psig
- Overall Length: 2.00 inches (hex to hex)
- Outside Diameter: 1.25 inches
- Fitting Type: SAE AS4395E08
Why Choose Parker 25408-08A-L15M?
- Durability: Stainless steel construction ensures long-lasting performance, even in harsh environments.
- Efficient Fluid Handling: Minimizes fluid spillage and air inclusion during disconnection for a cleaner, more efficient system.
- Compact Design: Perfect for tight spaces without sacrificing performance or reliability.
- Versatile Fluid Compatibility: Ideal for PAO cooling fluid systems, offering versatility across various industries.
| General Information | |
|---|---|
| Part # | 25408-08A-L15M |
| Manufacturer | Parker Stratoflex |
| Specifications | |
|---|---|
| Fitting Type | SAE AS4395E08 |
| Fluid Type | PAO Cooling Fluid |
| Line Size - Inlet | 1/2 inch |
| Maximum Fluid Temperature (F) | 350 |
| Maximum Operating Pressure (psig) | 4000 |
| Outside Diameter (inch) | 1.25 |
| Overall Length (inch) | 2.00 (hex to hex) |
