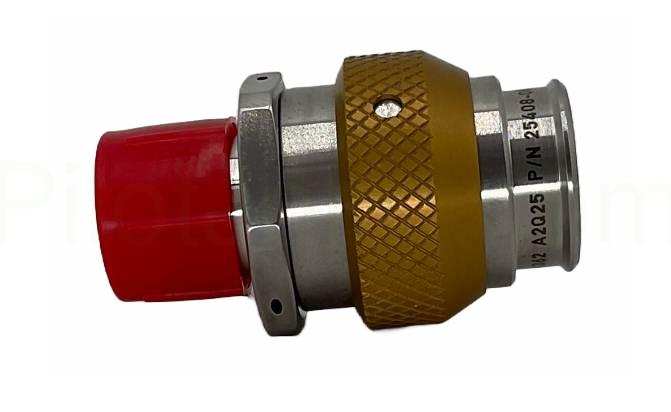

Parker Stratoflex 25408-08A-Y15M - Slide-Lok QD Coupling - Hydraulic, Fuel, PAO, Pneumatic

The Parker 25408-08A-Y15M Quick-Disconnect Coupling is designed for high-performance fluid systems, including hydraulic, fuel, PAO, and pneumatic applications. With a stainless steel body and a robust design, this coupling offers a reliable, leak-free connection under high pressure. The self-sealing valving minimizes fluid spillage and air inclusion during disconnection, making it ideal for applications where efficiency and cleanliness are essential.

Key Features

• High Pressure Rating: This coupling supports a maximum operating pressure of 4000 psig and a burst pressure of 10,000 psig, ensuring it performs reliably under demanding conditions.
• Fluid Compatibility: Compatible with a wide range of fluid types including hydraulic, fuel, PAO, and pneumatic fluids, making it versatile for multiple industries.
• Efficient Fluid Management: The self-sealing design reduces fluid spillage and air inclusion, ensuring clean and efficient operation during the connection and disconnection process.
• Corrosion-Resistant Stainless Steel: Constructed from durable stainless steel, this coupling resists corrosion and provides long-lasting performance.
• Compact and Easy to Use: Designed for tight installations, the 1/2 inch inlet and 2.00 inch overall length allow for convenient use in space-constrained environments, while the quick connect and disconnect feature simplifies operation.

Applications

• Aerospace systems (commercial and military)
• Hydraulic, fuel, PAO, and pneumatic systems
• High-pressure fluid circuits requiring reliable, secure connections

Specifications

• Part Number: 25408-08A-Y15M
• Line Size (Inlet): 1/2 inch
• Body Material: Stainless Steel
• Fluid Type: Hydraulic, Fuel, PAO, Pneumatic
• Maximum Operating Pressure: 4000 psig
• Minimum Operating Pressure: -5 psig
• Proof Pressure: 6000 psig
• Burst Pressure: 10,000 psig
• Maximum Fluid Temperature: 400°F
• Minimum Fluid Temperature: -40°F
• Maximum Spill Volume at Disconnection: 0.004 cc
• Maximum Air Inclusion: 0.006 cc
• Maximum Pressure to Connect: 120 psig
• Overall Length: 2.00 inches (hex to hex)
• Outside Diameter: 1.25 inches
• Fitting Type: SAE AS4395E08

Why Choose Parker 25408-08A-Y15M?

• Durable Construction: Stainless steel construction ensures longevity, strength, and resistance to corrosion.
• Efficient Fluid Handling: Minimizes spillage and air inclusion, improving operational efficiency and cleanliness.
• Compact Design: Its compact size makes it ideal for tight spaces while still offering high-pressure performance.
• Versatile Compatibility: Works with a range of fluids, including hydraulic, fuel, PAO, and pneumatic fluids, offering flexibility across various applications.
