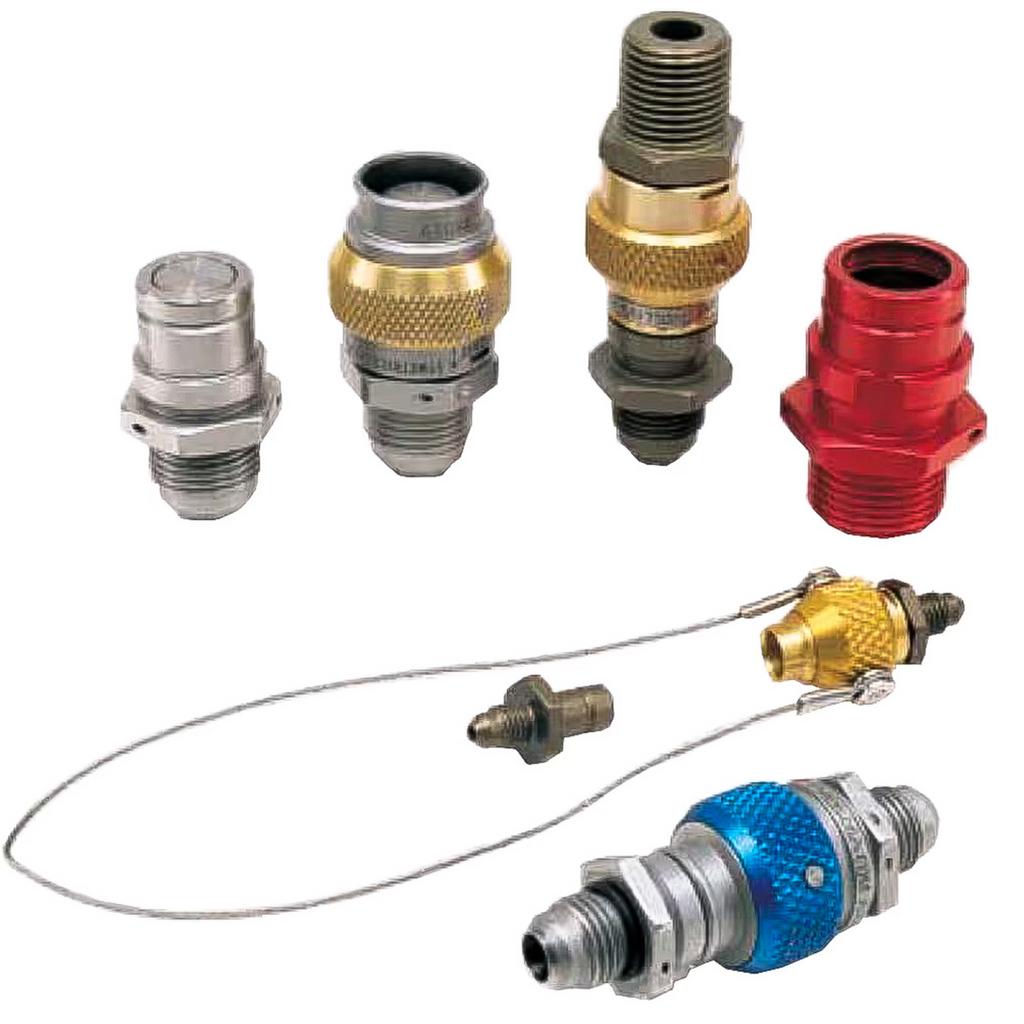

Parker Stratoflex 5103-03A-Y15 - Slide-Lok QD Coupling - Hydraulic, Fuel, PAO, Pneumatic
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Parker 5103-03A-Y15 Quick-Disconnect Coupling is designed for high-performance fluid systems using various fluids such as hydraulic, fuel, PAO, and pneumatic fluids. Made from durable stainless steel, this coupling offers secure, reliable connections and is built to perform under high-pressure conditions. Its self-sealing valve minimizes fluid spillage and air inclusion during disconnection, making it perfect for applications requiring cleanliness and efficiency.
Key Features
- High Pressure Capability: Rated for a maximum operating pressure of 4000 psig and burst pressure of 10,000 psig, this coupling is designed for demanding, high-pressure fluid systems.
- Fluid Compatibility: This coupling is suitable for a variety of fluid types, including hydraulic, fuel, PAO, and pneumatic fluids, making it highly versatile across different industries.
- Efficient Fluid Handling: The self-sealing valve minimizes air inclusion and fluid spillage during disconnection, ensuring clean and efficient operation.
- Durable Stainless Steel Construction: Built from stainless steel for superior corrosion resistance and long-lasting performance even in harsh environments.
- Compact Design: With a 3/16 inch inlet and an overall length of 1.37 inches, this coupling is perfect for installations with space constraints, while still maintaining high performance.
Applications
- Aerospace systems (commercial and military)
- Hydraulic, fuel, PAO, and pneumatic systems
- High-pressure fluid circuits requiring secure, leak-free connections
Specifications
- Part Number: 5103-03A-Y15
- Line Size (Inlet): 3/16 inch
- Body Material: Stainless Steel
- Fluid Type: Hydraulic, Fuel, PAO, Pneumatic
- Maximum Operating Pressure: 4000 psig
- Minimum Operating Pressure: -5 psig
- Proof Pressure: 6000 psig
- Burst Pressure: 10,000 psig
- Maximum Fluid Temperature: 400°F
- Minimum Fluid Temperature: -40°F
- Maximum Spill Volume at Disconnection: 0.002 cc
- Maximum Air Inclusion: 0.005 cc
- Maximum Pressure to Connect: 400 psig
- Overall Length: 1.37 inches (hex to hex)
- Outside Diameter: 0.36 inches
- Fitting Type: SAE AS4395E03
Why Choose Parker 5103-03A-Y15?
- Durable Construction: Stainless steel ensures long-lasting durability and corrosion resistance, providing excellent reliability in harsh environments.
- Efficient Fluid Management: Minimizes fluid spillage and air inclusion during disconnection, improving system efficiency and cleanliness.
- Compact and Reliable: Ideal for tight spaces without sacrificing performance, offering high-pressure capability in a small package.
- Versatile Fluid Compatibility: Works with hydraulic, fuel, PAO, and pneumatic fluids, offering flexibility for multiple fluid systems.
| General Information | |
|---|---|
| Part # | 5103-03A-Y15 |
| Manufacturer | Parker Stratoflex |
| Specifications | |
|---|---|
| Fitting Type | SAE AS4395E03 |
| Fluid Type | Various (Hydualic, Fuel, PAO, Pnuematic) |
| Line Size - Inlet | 3/16 inch |
| Maximum Fluid Temperature (F) | 400 |
| Maximum Operating Pressure (psig) | 4000 |
| Outside Diameter (inch) | 0.36 |
| Overall Length (inch) | 1.37 (hex to hex) |
