Tektronix TBS1000C - 2 Channel Digital Storage Oscilloscope for Avionics Testing

The Tektronix TBS1000C - 2 Channel Digital Storage Oscilloscope is designed to deliver reliable and precise signal analysis, making it an essential tool for avionics engineers and maintenance professionals. With a focus on affordability and simplicity, the TBS1000C provides the key features required for avionics testing in a compact and easy-to-use format. Its **2-channel design**, available in bandwidths from **50 MHz to 200 MHz**, ensures that you can capture and analyze the critical signals needed for ensuring the safety and reliability of avionics systems.

Key Features for Avionics Testing:

• Compact and Portable Design for Field and Lab Use:
  The TBS1000C’s lightweight and compact form factor make it ideal for avionics professionals who need to perform diagnostics in various settings, from the lab bench to the field. With a small footprint and user-friendly interface, it is the perfect oscilloscope for quick and easy signal analysis, no matter where avionics testing is required.
• 2 Channels with Flexible Bandwidth Options:
  Offering **2 channels** and bandwidth options ranging from **50 MHz to 200 MHz**, the TBS1000C is versatile enough for a variety of avionics applications. From testing communication modules to monitoring signals in navigation and flight control systems, the TBS1000C delivers the resolution and speed required to ensure accurate signal capture.
• Intuitive User Interface for Fast Setup and Operation:
  The oscilloscope’s simplified control panel and **7-inch WVGA display** make it easy for avionics engineers to quickly set up and operate the instrument, even in high-pressure environments. The large screen provides clear visibility of waveforms, making it easier to identify issues and perform diagnostics on avionics systems.

Comprehensive Debugging and Analysis:

• Automatic Measurements and Analysis Tools:
  The TBS1000C includes **32 automated measurements** that allow engineers to quickly evaluate key signal parameters during avionics testing. Whether you are analyzing signal timing, voltage levels, or other critical factors, these tools enable efficient analysis, helping to reduce downtime during system troubleshooting.
• Waveform Math and FFT Analysis:
  Equipped with basic waveform math functions such as **addition**, **subtraction**, **multiplication**, and **division**, as well as **FFT analysis**, the TBS1000C allows for detailed analysis of avionics signals. This functionality is essential for evaluating signal integrity and identifying potential issues in systems such as flight control or communication modules.
• Advanced Triggers for Precision Signal Capture:
  The TBS1000C offers advanced triggering options, including **edge, pulse width, and video triggers**, which allow for precise signal capture during avionics testing. This is crucial when analyzing complex avionics systems, where identifying rare or intermittent issues requires reliable triggering.

Connectivity and Data Management:

• USB Connectivity for Data Transfer and Control:
  The TBS1000C features a **USB port**, allowing for easy transfer of waveform data and screenshots to a PC for further analysis or documentation. This capability is especially useful for avionics engineers who need to share test results with colleagues or store data for compliance purposes.
• PC Software for Extended Functionality:

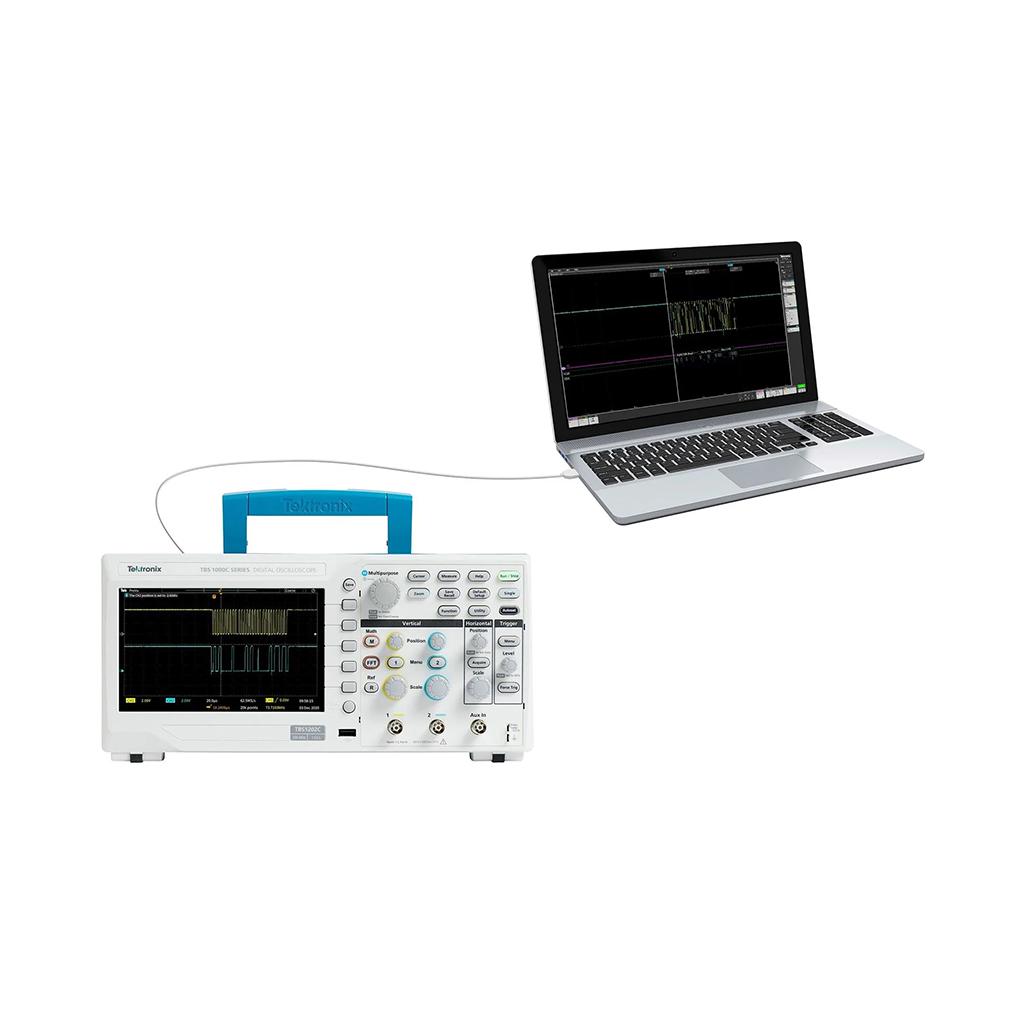

  The TBS1000C is compatible with **OpenChoice® Desktop** and **TekScope PC Software**, which enable remote control of the oscilloscope and further analysis of waveform data on a PC. This is particularly useful for avionics professionals who need to perform more in-depth analysis or collaborate with remote teams on troubleshooting and diagnostics.

Applications in Avionics Testing:

• Communication Systems: Test and verify avionics communication modules, including radios, transponders, and digital communication buses such as RS-232 or CAN.
• Flight Control Systems: Capture and analyze signals in avionics flight control systems to ensure accuracy and responsiveness.
• Navigation Systems: Debug signals from GPS modules, gyroscopes, and other avionics sensors used for navigation.
• Onsite Diagnostics: Perform real-time testing and diagnostics in the field with the portable and user-friendly TBS1000C, ensuring that critical avionics systems are functioning correctly in real-world conditions.

Specifications Summary:

• Channels: 2
• Bandwidth: 50 MHz, 70 MHz, 100 MHz, 150 MHz, or 200 MHz
• Sample Rate: 1 GS/s on all channels
• Display: 7-inch WVGA (800 x 480) display
• Memory: 20k points record length per channel
• Connectivity: USB for data transfer and PC connection
• Power: AC adapter

The Tektronix TBS1000C - 2 Channel Digital Storage Oscilloscope is the ideal solution for avionics engineers and maintenance professionals seeking a compact, reliable, and affordable oscilloscope. Its versatile performance and intuitive interface ensure that avionics testing is efficient and accurate, making it a valuable tool for maintaining the safety and reliability of critical avionics systems.
