Key Features:
• Accurately measure differential pressure from -100 to +100 psi with a resolution of 0.01 psi for precise system evaluation.
• Select from seven units of measure (bar, kPa, PSI, mmHg, inHg, mH2O, inH2O) to suit specific applications.
• Data logging, min/max readings, one-touch zero, and trim mode for efficient troubleshooting and system optimization.
• Optional IR to USB interface and PC application software for data transfer and analysis.
• Designed to withstand the rigors of aviation maintenance environments.

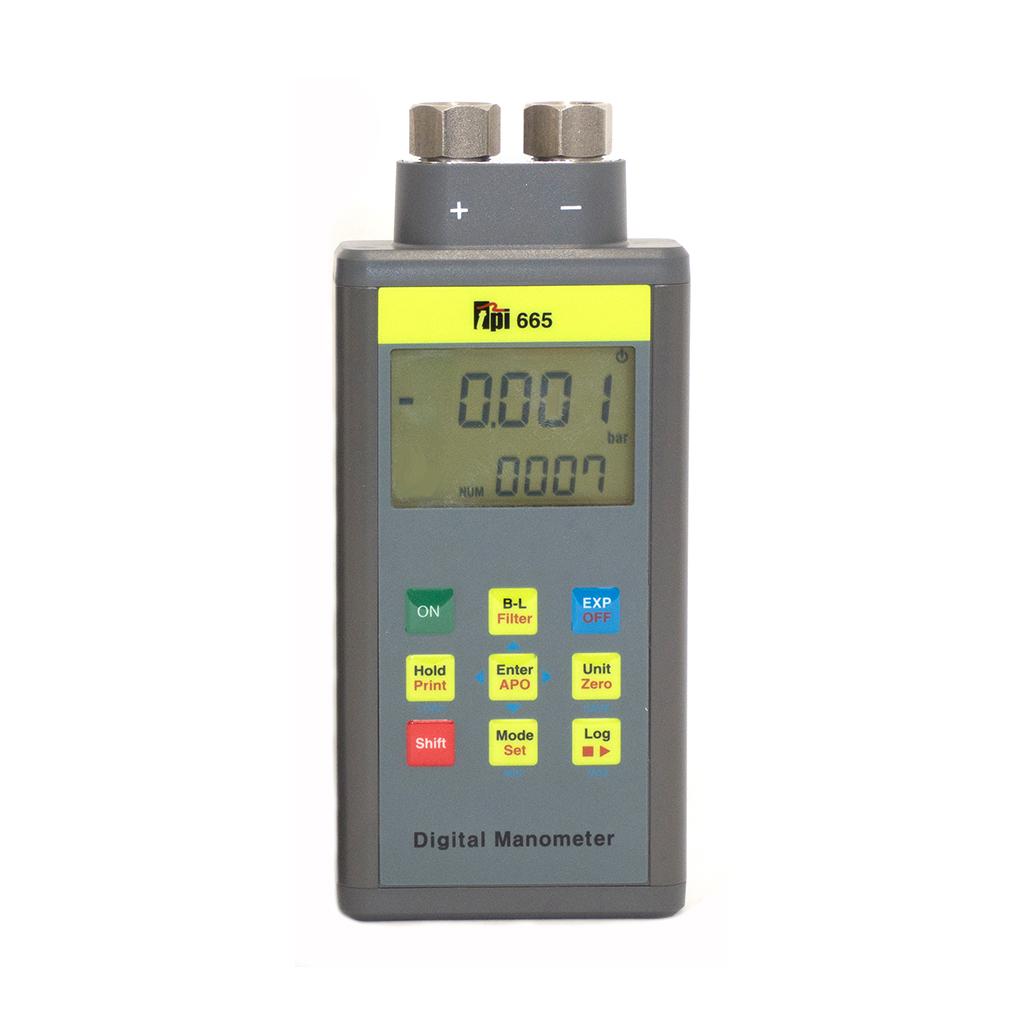

The Test Products International (TPI) 665 Dual Input Differential Manometer helps optimize aircraft system performance, improve safety, and reduce maintenance costs by providing precise pressure measurements and advanced features.
Standard Accessories Included:
Two 1.5 Volt Alkaline Batteries (A002)
Protective Boot with Magnets (A614)
| General Information | |
|---|---|
| Part # | 665 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1.2 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9026200000 |
| Specifications | |
|---|---|
| Accuracy | 0.2% Full scale |
| Auto Power Off | 20 minutes (can be disabled) |
| Battery Life | 600 hours (Typical) |
| Battery Type | AA(1.5V)*2 alkaline (MN1500, LR6) |
| Communication | IR to USB Interface and PC Application software (optional p/n A665) |
| Data Logging | 5000 Data, 1sec ~ 24 hour |
| Data Storage | 16 data points |
| Display | 5 Digit LCD with backlight |
| Functions | One Touch Zero, Data Hold, Back-light, Unit Selection, Smoothing, Auto power Off, Min / Max Record, Resolution Selection |
| Input Type | Differential (1/4” NPT) |
| Measurement Range | ±101.5 psi (±7bar) |
| Resolution (max) | 0.01 psi (0.001 bar) (0.1 inH2O) |
| Units of Measure | 7 Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O) |
