Available for Order
Usually ships in 4 to 5 days
$494.40 /ea.
Qty
Choose a charge kit:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Features:

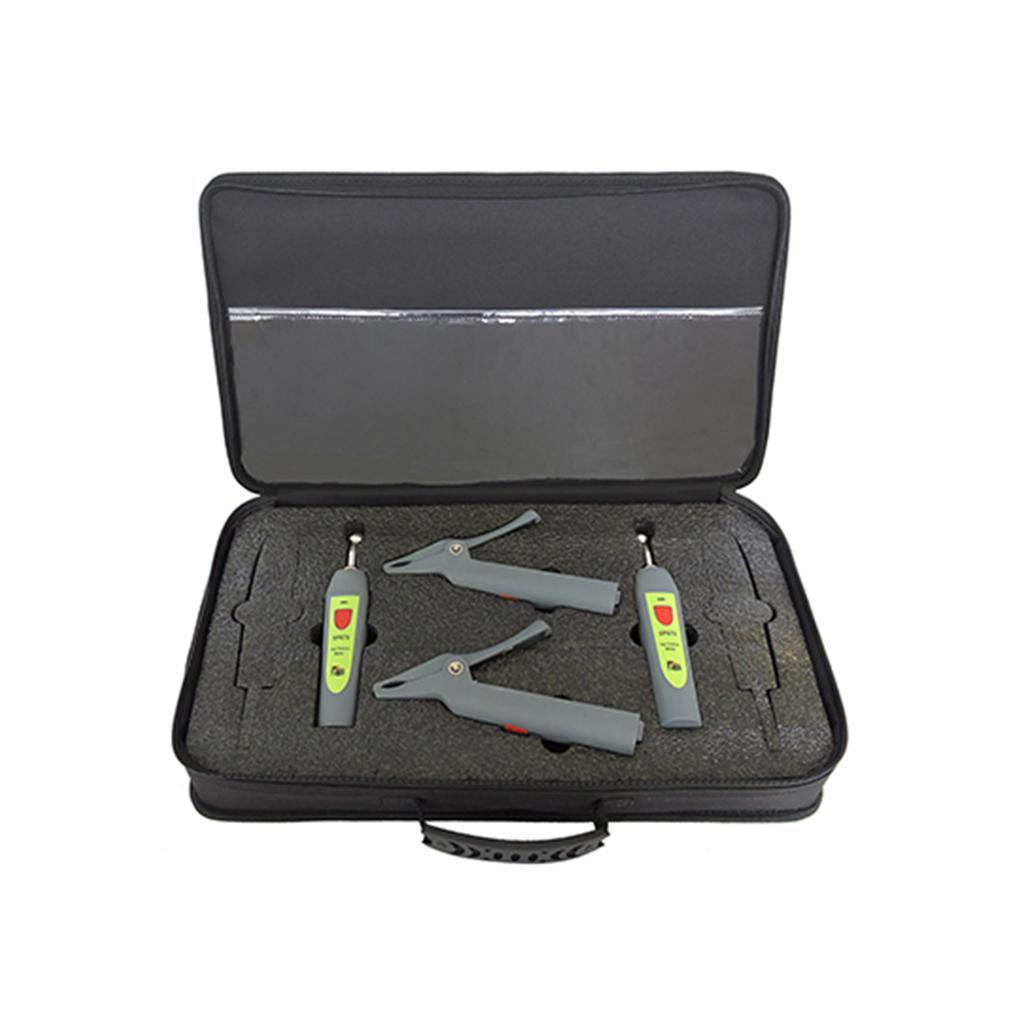

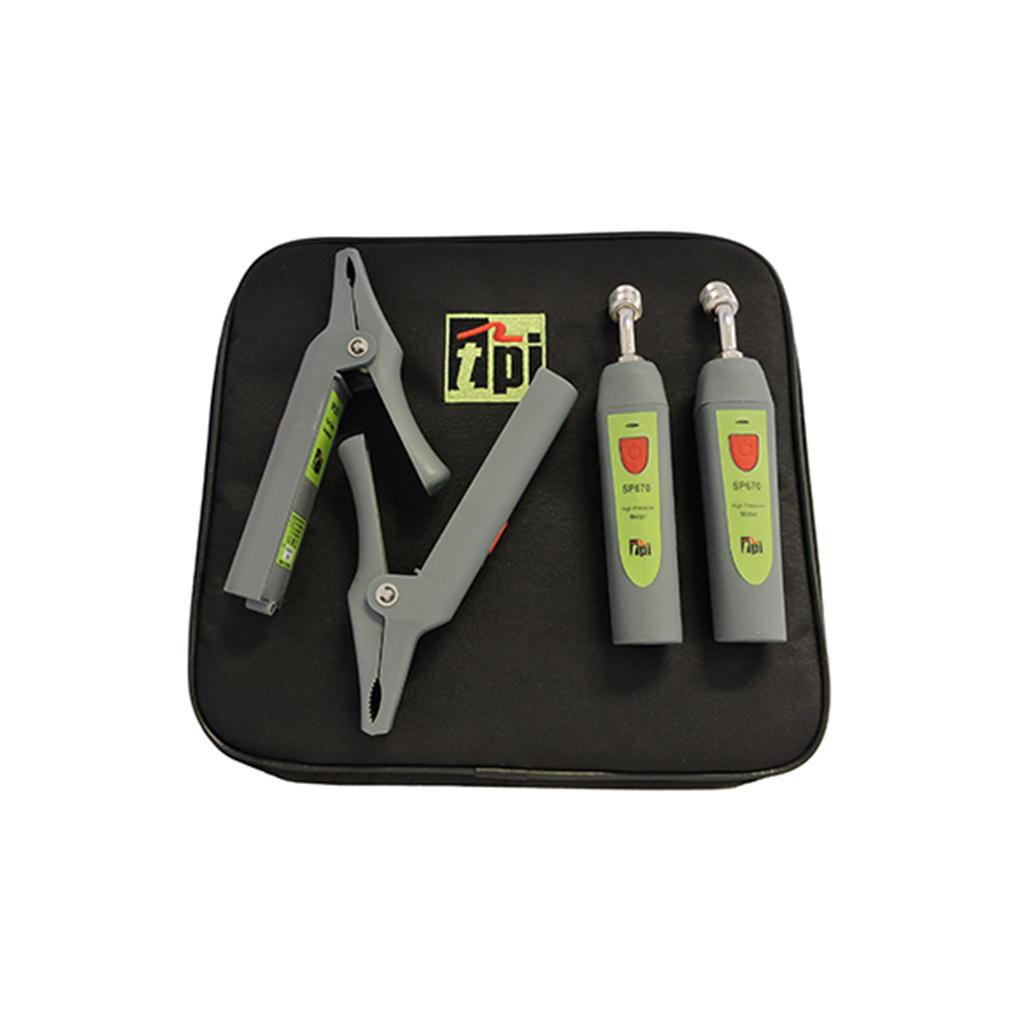

• Comprehensive Measurement Capabilities: This kit includes two SP323 Clamp-Type Temperature Probes and two SP670 High-Pressure Probes for precise temperature and pressure measurements.
• Smart Connectivity: Seamlessly integrate with smartphones and tablets using the Test Products International (TPI) View app for real-time data monitoring and analysis.
• Data Management: Utilize the Test Products International (TPI) View App to record, analyze, and share measurement data for efficient troubleshooting and system optimization.
• Versatile Applications: Measure temperature and pressure in various HVACR components, including air conditioning, heating, and refrigeration systems.
• Advanced Features: Calculate superheat and subcooling for optimal system performance.
The Test Products International (TPI) SPCHKIT Refrigerant Charge Kit empowers technicians to optimize system performance, improve energy efficiency, and enhance overall system reliability by providing essential measurement tools and advanced data analysis capabilities.
| General Information | |
|---|---|
| Part # | SPCHKIT |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 2 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9025198080 |
| Specifications | |
|---|---|
| SP323 Accuracy | 32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C), <32⁰F (<0⁰C) = +/-1.8⁰F (+/-1.0⁰C) |
| SP323 Battery life | Approximately 170 hours |
| SP323 Battery type | AAA x 3 alkaline |
| SP323 Bluetooth | 5.0 (350 foot range depending on obstacles) |
| SP323 Clamp Pipe Size | 1/4 inch to 1 1/2 inch (6mm to 38mm) |
| SP323 Data Logging | 10,000 readings in 1 sec to 59 min 59 sec intervals |
| SP323 Humidity | 0 ~ 80 %RH |
| SP323 Operating temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| SP323 Resolution | 0.1⁰F / 0.1⁰C |
| SP323 Storage temperature | 0 °C ~ 50 °C ( 32 °F ~ 122 °F ) |
| SP323 Temperature Range | -40⁰F to 185⁰F (-40⁰C to 85⁰C) |
| SP323 Weight | 5.64oz (160g) |
| SP670 Accuracy | +/- 0.5% of full scale |
| SP670 Battery life | Approximately 160 hours |
| SP670 Battery type | AAA x 3 alkaline |
| SP670 Bluetooth | 5.0 (350 foot range depending on obstacles) |
| SP670 Humidity | 0 to 80 %RH |
| SP670 Input Connection | 7/16"-20 UNF / ¼" SAE |
| SP670 Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| SP670 Over Pressure Range | 1000 psi (70 ba |
