Key Features:

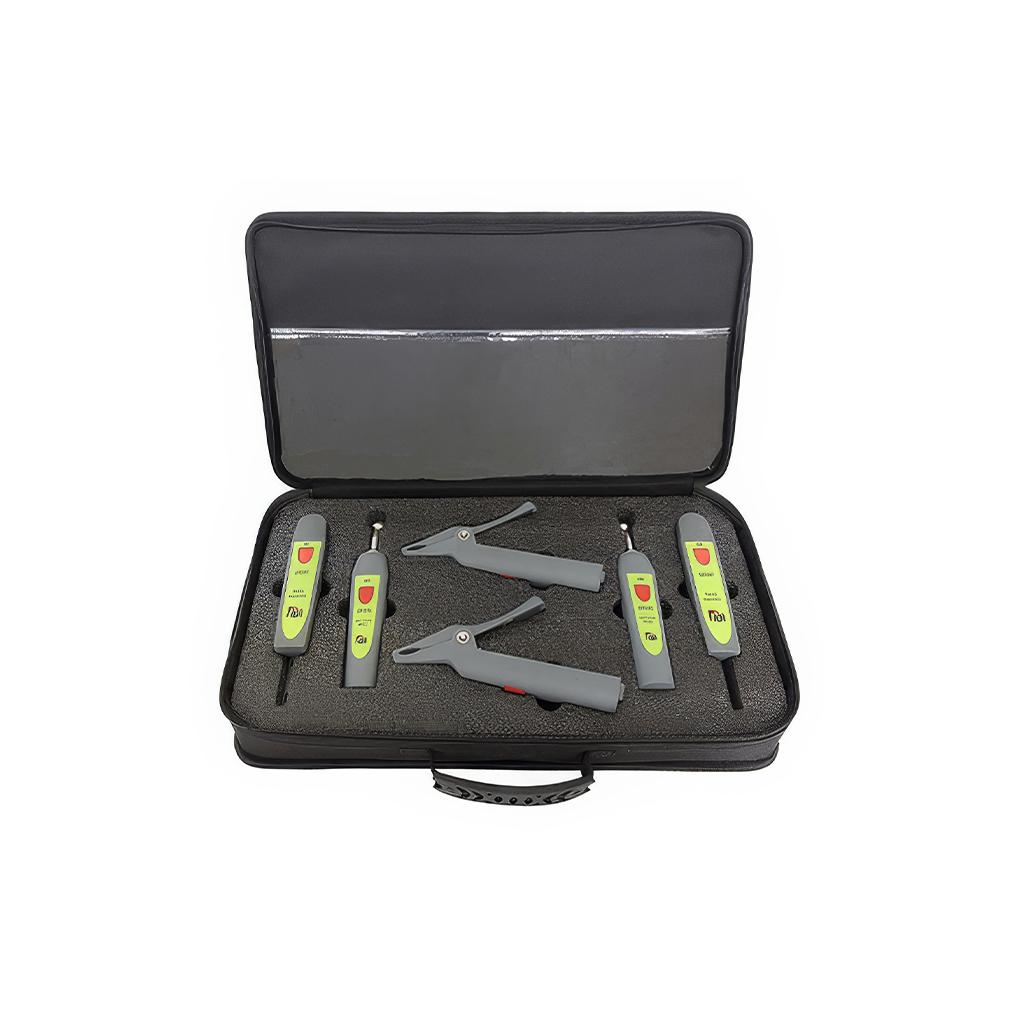

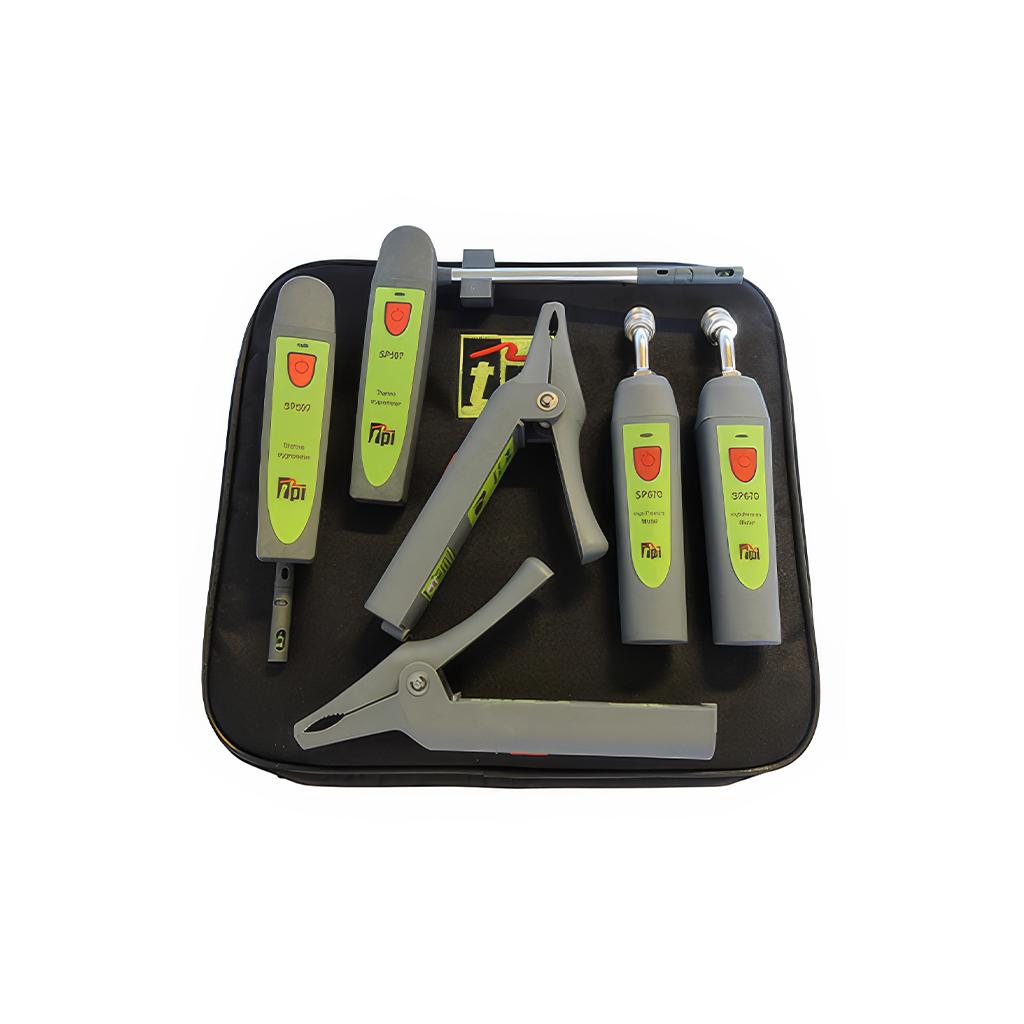

• Comprehensive Measurement Capabilities: Includes two SP323 Clamp Type Temperature Probes, two SP597 Humidity/Temperature Probes, and two SP670 High Pressure Probes for complete system analysis.
• Smart Connectivity: Seamlessly integrate with smartphones and tablets using the Test Products International (TPI) View app for real-time data monitoring and analysis.
• Data Management: Utilize the Test Products International (TPI) View App to record, analyze, and share measurement data for efficient troubleshooting and system optimization.
• Versatile Applications: Measure temperature, humidity, and pressure in various HVACR components, including air conditioning, heating, and refrigeration systems.
• Advanced Features: Calculate superheat and subcooling, perform differential temperature measurements, and identify system imbalances.
The Test Products International (TPI) SPCHGDLX Deluxe Refrigerant Charge Kit empowers technicians to optimize system performance, improve energy efficiency, and enhance overall system reliability by providing a comprehensive suite of measurement tools and advanced data analysis capabilities.
| General Information | |
|---|---|
| Part # | SPCHGDLX |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 2 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Specifications | |
|---|---|
| Battery Life | Approximately 200 hours |
| Battery Type | AAA x 3 alkaline |
| Bluetooth | 5.0 (350 foot range depending on obstacles) |
| Data Logging | 5,000 readings in 1 sec to 59 min 59 sec intervals |
| Operating Humidity | 0 ~ 80 %RH |
| Operating Temperature | 32 °F ~ 122 °F (0 °C ~ 50 °C) |
| SP323 Accuracy | 32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C), <32⁰F (<0⁰C) = +/-1.8⁰F (+/-1.0⁰C) |
| SP323 Battery life | Approximately 170 hours |
| SP323 Battery type | AAA x 3 alkaline |
| SP323 Bluetooth | 5.0 (350 foot range depending on obstacles) |
| SP323 Clamp Pipe Size | 1/4 inch to 1 1/2 inch (6mm to 38mm) |
| SP323 Data Logging | 10,000 readings in 1 sec to 59 min 59 sec intervals |
| SP323 Humidity | 0 ~ 80 %RH |
| SP323 Operating temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| SP323 Resolution | 0.1⁰F / 0.1⁰C |
| SP323 Storage temperature | 0 °C ~ 50 °C ( 32 °F ~ 122 °F ) |
| SP323 Temperature Range | -40⁰F to 185⁰F (-40⁰C to 85⁰C) |
| SP323 Weight | 5.64oz (160g) |
| SP597 Humidity | Range: 0%RH to 100%RH, Resolution: 0.1%RH, Accuracy: +/-3%RH (20%RH t |
