TPI WA2025 - Advanced Digital Multimeter

The TPI WA2025 was designed to meet demanding aviation requirements, including the Boeing-specific designation SPL-25574. Its CAT IV 600V / CAT III 1000V safety ratings and rugged IP51 housing make it well-suited for flight line and hangar environments. Features like the Wire Fault Test and Low Z voltage function help technicians diagnose aircraft electrical systems more accurately. This combination of durability, precision, and aviation approval makes it ideal for avionics troubleshooting.

The WA2025 includes a Wire Fault Test that locates short circuits in wire runs and displays the distance to the short. This dramatically reduces the time required to isolate wiring faults in aircraft harnesses and panels. Instead of manually tracing long wire runs, technicians can quickly pinpoint the issue. This capability supports faster return-to-service and reduced labor costs.

The Low Z voltage function reduces ghost or induced voltage readings that can occur in high-impedance environments. Aircraft electrical systems often contain complex wiring that can produce misleading readings with standard meters. By providing low impedance voltage measurement, the WA2025 ensures more reliable results. This enhances diagnostic confidence during avionics testing and maintenance.

Bluetooth 5.0 output enables remote viewing and report creation. This enables technicians to capture readings digitally, helping streamline compliance documentation and maintenance records. Wireless connectivity also improves workflow efficiency by reducing manual data transcription. In regulated aviation environments, this can support better traceability and reporting accuracy.

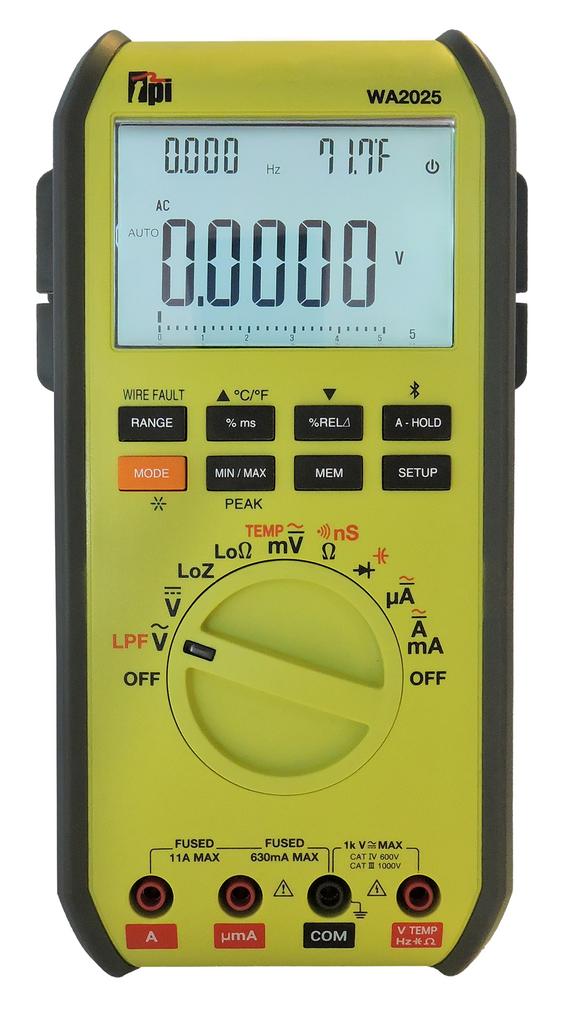

The WA2025 features a 50,000-count triple display with an analog bar graph and backlight. This high-resolution display allows technicians to see subtle changes in readings that lower-count meters might miss. The analog bar graph is particularly useful for identifying trends or fluctuations in electrical signals. Clear visibility improves precision during critical aircraft diagnostics.

The meter includes a low 50Ω resistance range with a 20V DC, 10mA output for stability. This is especially useful when testing continuity and low-resistance circuits common in aircraft systems. Stable output helps eliminate inaccurate readings caused by poor probe contact or oxidation. As a result, avionics technicians can verify wiring integrity with greater confidence.

With CAT IV 600V and CAT III 1,000V ratings, the WA2025 is designed for use in demanding electrical environments. Separate fuse and battery access further enhances user safety during maintenance. These protections help minimize risk when testing aircraft power systems or ground support equipment. Safety compliance is critical in aviation maintenance settings.

The WA2025 offers trend capture and timestamp logging, allowing technicians to monitor changes over time. This is particularly useful for intermittent electrical faults in aircraft systems. By analyzing logged data, maintenance teams can identify patterns that may not be visible in a single reading. This improves long-term troubleshooting effectiveness.

True RMS capability ensures accurate readings of both sinusoidal and non-sinusoidal waveforms. Many aircraft systems use variable frequency drives and complex electrical loads that produce distorted waveforms. A standard averaging meter may provide inaccurate readings in these scenarios. The WA2025’s True RMS measurement supports more reliable avionics diagnostics.

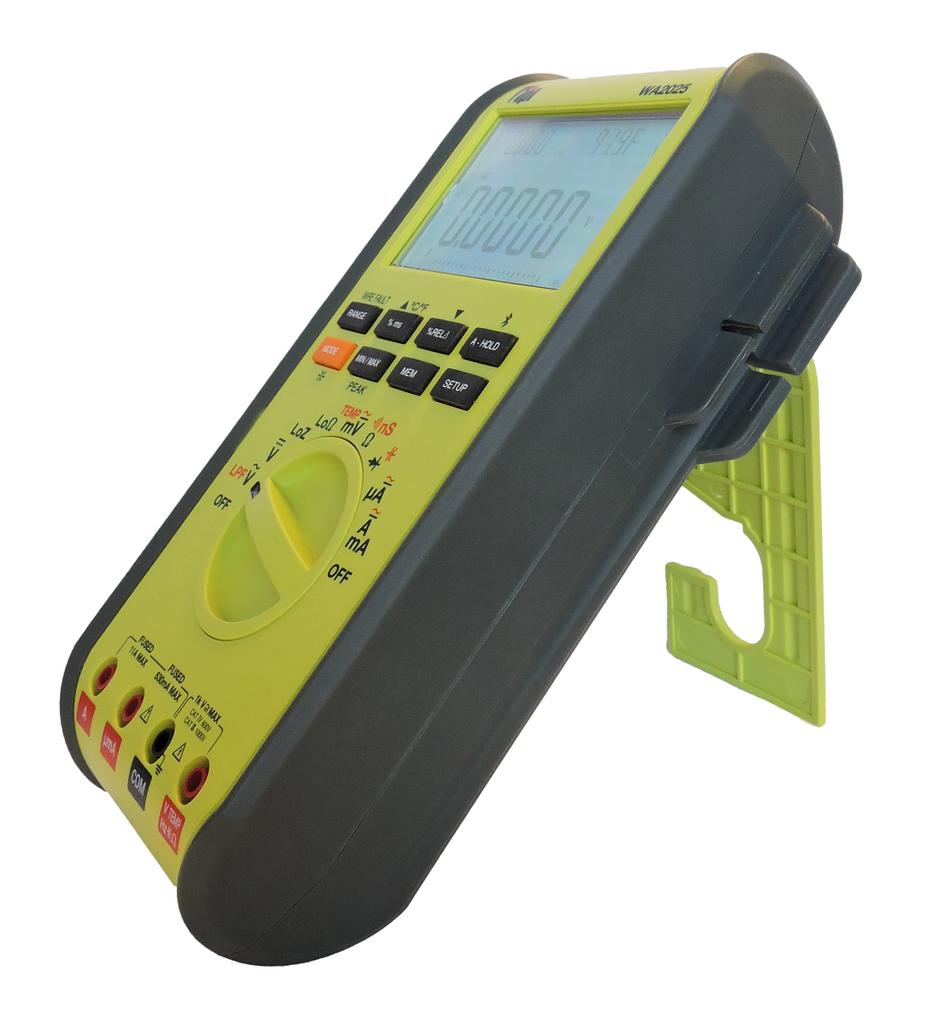

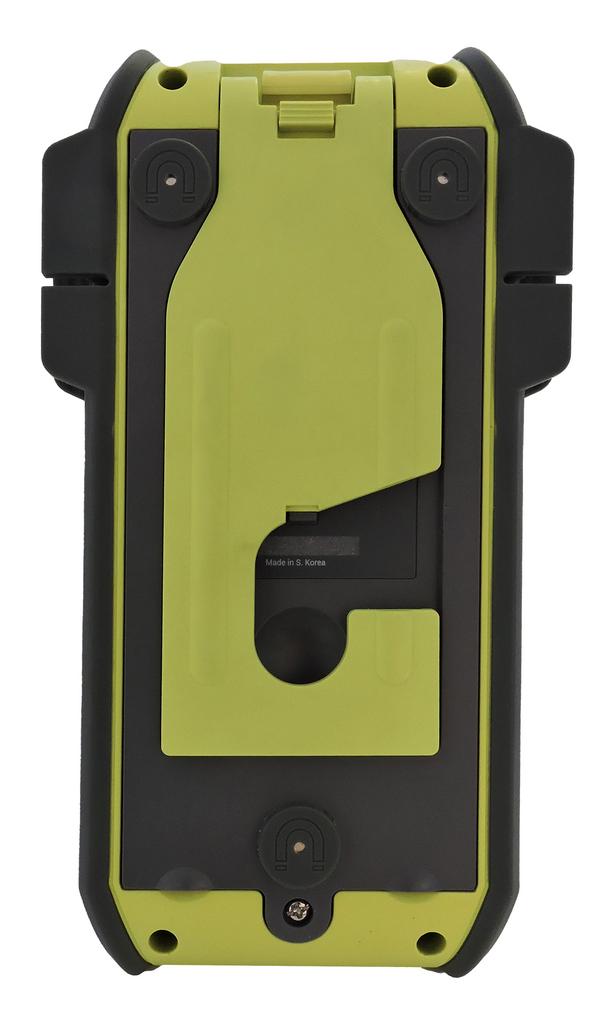

The WA2025 features a rugged IP51-rated housing that protects it against dust and light moisture. Built-in magnets, hanger, and tilt stand enhance usability in tight aircraft workspaces. These ergonomic features allow hands-free operation during troubleshooting. Combined with a three-year limited warranty, the meter is built for dependable long-term use.
