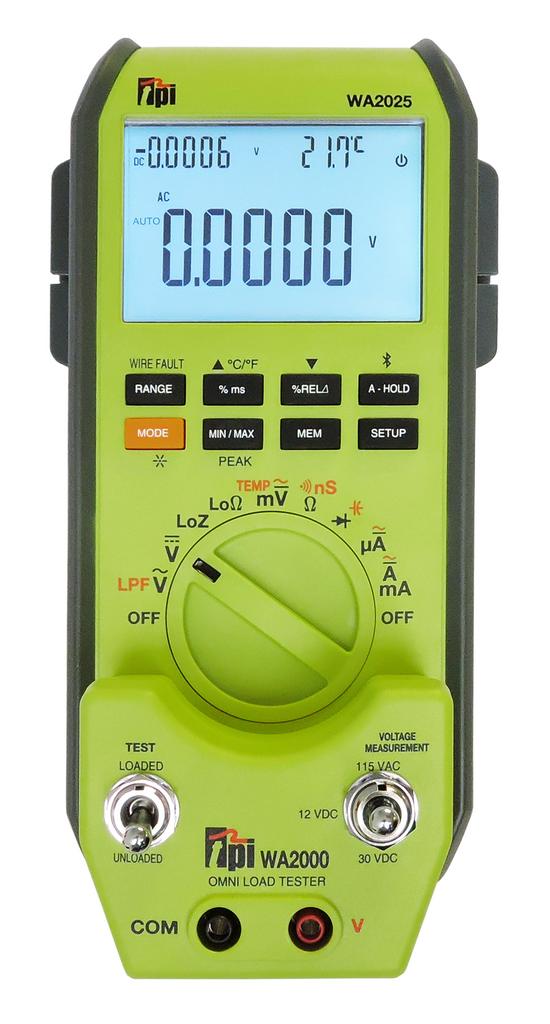

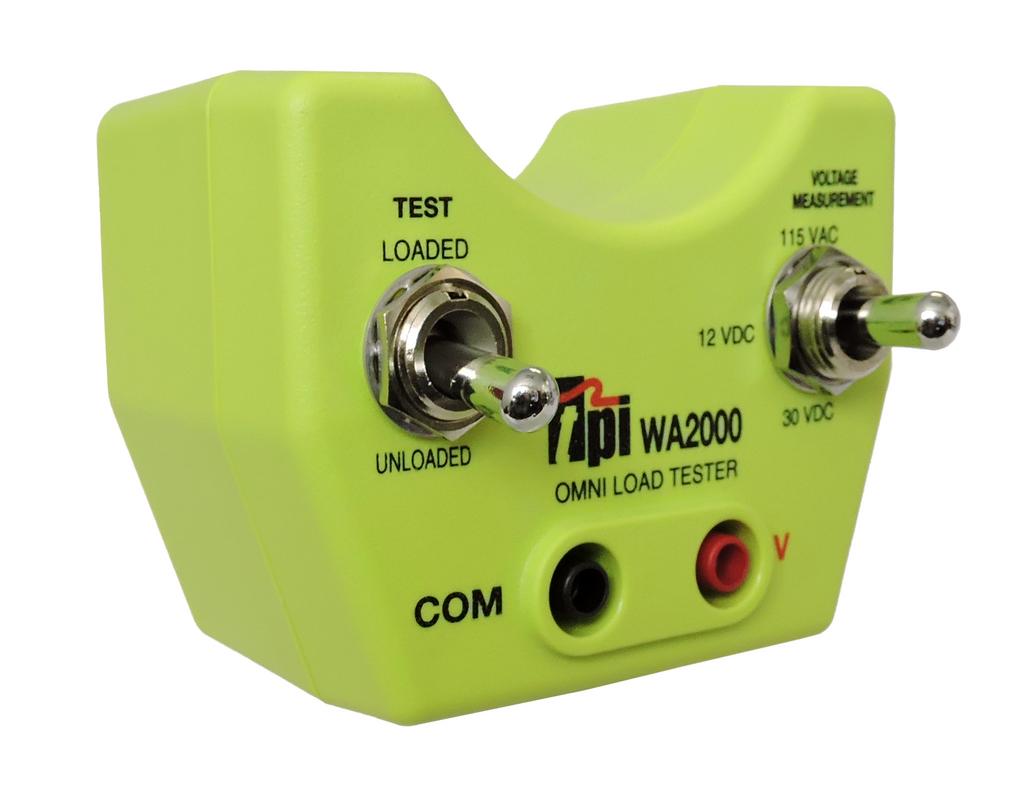

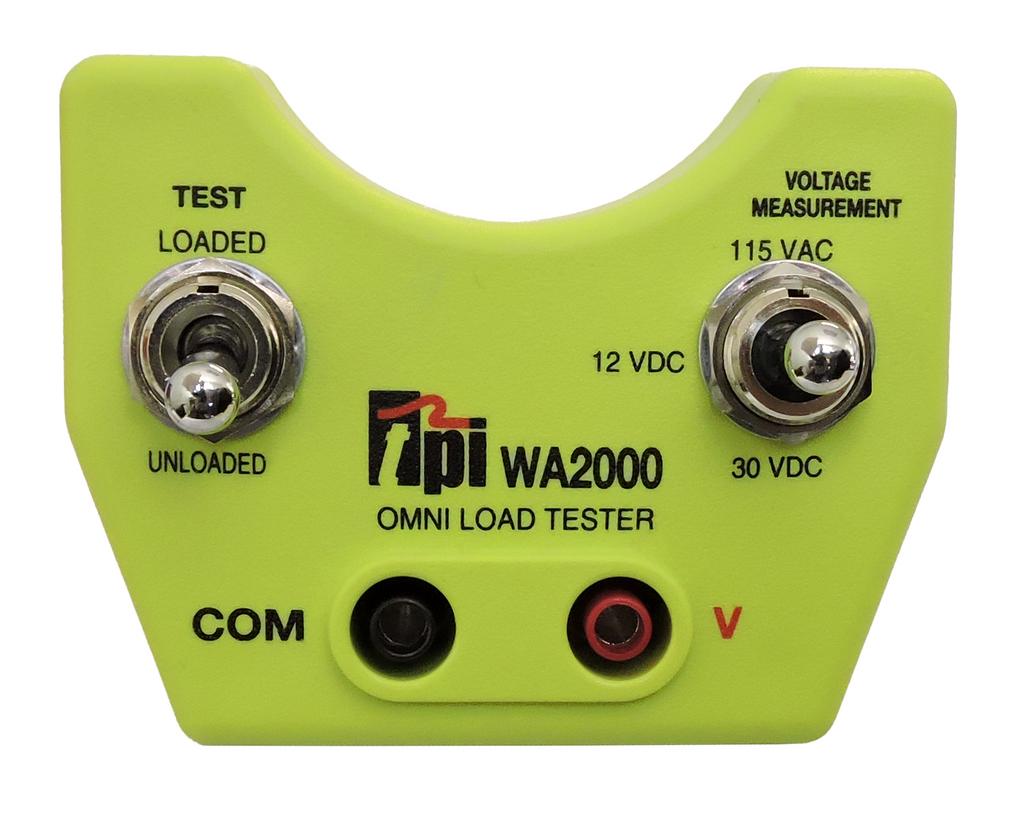

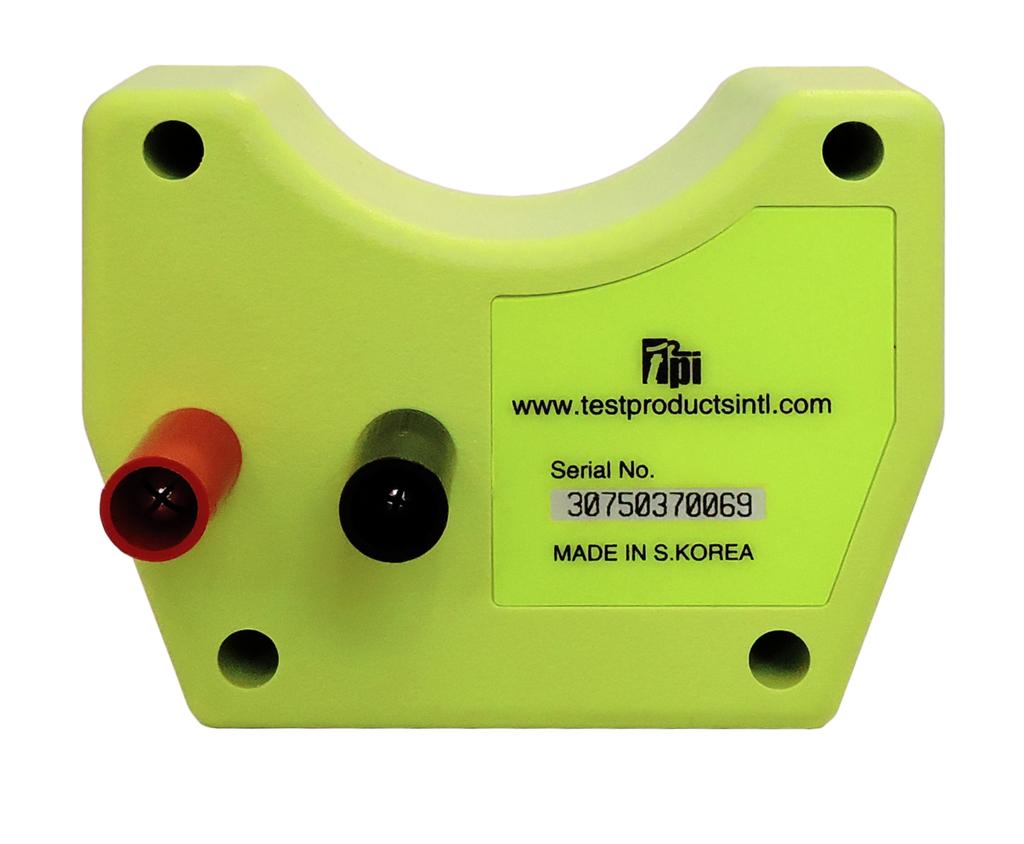

The Test Products International (TPI) WA2000 Electrical Current & Load Tester Accessory (Omni Load Tester) is a compact adapter designed to help aviation maintenance professionals uncover real-world electrical problems that a standard high-impedance multimeter can miss. Used with the TPI WA2025 or a similar meter, the WA2000 enables Electrical Load Ratio Tests by applying a controlled load, allowing you to identify weak connections, high-resistance faults, and intermittent issues before they become repeat failures in service.
- Electrical Load Ratio testing to find load-related faults in aircraft and ground equipment circuits.
- Troubleshooting intermittent faults that only appear under vibration, pressure, temperature changes, or movement.
- Verifying circuit health when traditional voltage checks look normal, but the circuit still fails under load.
- Designed by Boeing specifically for aviation, but could be used for any application.
Traditional high-impedance multimeters limit current to only a few microamps, making it difficult to detect resistances below 3 megaohms during a voltage test. Many real faults are triggered by much lower resistance levels, often in the 100 to 300 ohm range, and can be especially hard to replicate until the aircraft is exposed to vibration. The WA2000 helps you load the circuit, enabling you to detect resistances down to a couple of ohms and pinpoint problems sooner.
Key Features

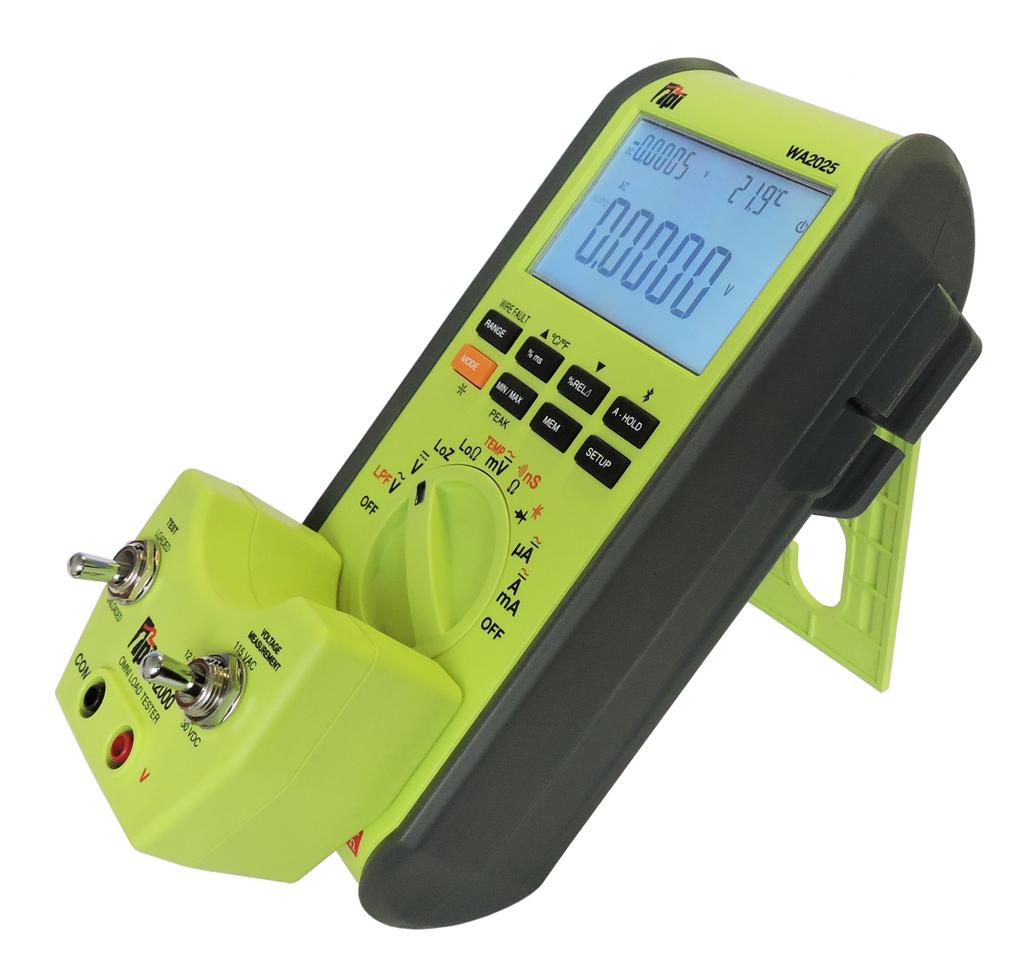

- Adapter design that connects to the WA2025 or a similar meter to help locate load faults in electrical circuits.
- Enables users to test voltage while detecting low resistances that can cause intermittent operation under real conditions.
- Supports common operating test voltages of 12V DC, 30V DC, and 115V AC.
- 10mA load current for effective load-based diagnostics.
- 1,000V overvoltage rating with PTC protection for added durability in the field.
Specifications
- Operating test voltages: 12V DC, 30V DC, 115V AC
- Load current: 10 mA
- Overvoltage rating: 1,000V (PTC protected)
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -4°F to 140°F (-20°C to 60°C)
- Humidity: 0 to 80% RH
Whether you need guidance on selecting the right load testing accessory or have questions about performing Electrical Load Ratio Tests with your WA2025 and WA2000, our expert aviation specialists are ready to help. Contact us via phone, email, or live chat, and we will help you choose the best setup for your troubleshooting workflow so you can find hidden faults faster and return aircraft to service with confidence.
| General Information | |
|---|---|
| Part # | WA2000 |
| Manufacturer | Test Products International |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Traditional high-impedance multimeters limit current flow to microamp levels, which can prevent technicians from identifying low-resistance faults in aircraft wiring. The WA2000 applies a controlled 10 mA load, allowing intermittent and vibration-related resistance issues to become visible during testing. This makes it especially valuable for detecting faults that only appear under operational stress. For avionics technicians, it helps eliminate “no fault found” scenarios that waste time and increase maintenance costs.
Standard digital multimeters typically allow only 3 to 11.5 microamps of current flow, making resistances below 3 MΩ nearly impossible to detect during voltage testing. Many real-world faults occur in the 100 to 300 ohm range and may only appear under vibration. Without a proper load applied, these faults can remain hidden. The WA2000 helps simulate real operating conditions, enabling technicians to identify hidden issues more effectively.
Intermittent faults often occur when circuits are subjected to pressure, temperature changes, or vibration. The WA2000 enables testing under load, allowing resistances as low as a couple of ohms to be identified. This helps reveal faults that may not show up during static bench testing. As a result, technicians can diagnose wiring problems before they cause in-service failures.
The WA2000 supports common aviation test voltages, including 12V DC, 30V DC, and 115V AC. This makes it suitable for a wide range of aircraft electrical systems, from general aviation platforms to commercial and military applications. Because it was originally designed by Boeing for aviation use, it aligns well with typical aircraft power architectures. It can also be adapted for non-aviation electrical troubleshooting environments.
By enabling faster identification of low-resistance and load-related faults, the WA2000 reduces unnecessary component replacement and extended downtime. Instead of replacing wiring or avionics units based on suspicion, technicians can verify actual circuit performance under load. This targeted troubleshooting approach improves reliability and lowers maintenance costs. For MRO facilities, it can significantly streamline electrical fault isolation.
The WA2000 is designed to connect directly to the WA2025 or similar meters. This flexibility allows it to integrate into existing electrical test setups without requiring specialized proprietary instrumentation. Technicians can continue using familiar meters while adding load-testing capability. This makes it a practical accessory rather than a complete system replacement.
The unit includes PTC protection with an overvoltage rating of 1,000V, providing an added layer of safety during testing. This protection helps safeguard both the user and connected equipment from voltage spikes. In high-reliability aviation environments, built-in protection is essential for preventing accidental damage. The design supports safe troubleshooting practices in demanding conditions.
The WA2000 operates within a temperature range of 32°F to 122°F (0°C to 50°C), making it suitable for most hangar and line-maintenance environments. It also supports humidity levels from 0 to 80% RH. These specifications allow technicians to use the Omni Load Tester in a wide range of climates without compromising performance. Its durability aligns with the needs of aviation field operations.
Electrical load ratio testing helps determine whether a circuit can carry current properly under operational demand. Without load testing, circuits may appear functional even when high-resistance faults exist. In aircraft systems, this can lead to intermittent avionics operation or system failures in flight. The WA2000 enables more realistic electrical diagnostics, supporting higher dispatch reliability.
Although the WA2000 was designed by Boeing specifically for aviation, its electrical load testing capability makes it useful in other industries as well. Any application involving 12V DC, 30V DC, or 115V AC systems can benefit from its ability to detect low-resistance faults. Industrial, automotive, and marine technicians may also find it valuable. Its aviation-grade design simply means it meets the high standards required for aircraft maintenance.
