Tronair 01-1161-0009 BAE 146 Custom Towbar / Head (CE)

Tronair 01-1161-0009
Manufacturer: Tronair
Part Number: 01-1161-0009
Condition: New
Rating: 5.0 Based on 1 customer review

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Challenger Head with Shear Protection (CE) - 600, 601, 604, 605
CRJ-100/200, Challenger 850, Hawker 4000 Horizon Head (Ce)
Portable Universal Towbar (Ce) - Tow up to 80,000 lbs
Challenger Head (Ce) - Challenger 601 / 605
Head, Bae Hs 748 (Ce)

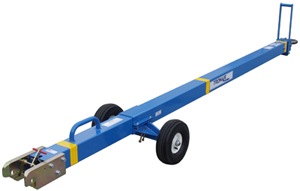

The Tronair 01-1161-0009 custom towbar is designed for towing BAe 146 Aircraft manufactured by British Aerospace.

This towbar includes pneumatic tires with a urethane bumper at the tug end. There is an eyebolt at the towing end of the towbars which incorporates shear pin to limit locking. Axle adaptors attach to the aircraft tow point.

Additional Details:

  • Application: BAe 146 Aircraft manufactured by British Aerospace
  • Maximum Aircraft Gross Weight: 97,500 lbs (43.5 Metric ton)
  • Length:142 3/8 in (361.6 cm) From eyebolt centerline to aircraft attachment.
  • Width: 22 7/8 in (58 cm)
  • Tube: 4 in (10.2 cm) square
  • Weight: 145 lbs (65.8 kg)
  • Finish: Powder Coat
  • Material: Steel

Standard Features

  • Positive locking mechanism to aircraft tow point
  • Handles provided to lift towbar into position
  • Unpainted surfaces plated to resist corrosion
  • Pneumatic or semi-pneumatic tires
  • CE marked
  • Finish: Durable Powder Coat Tronair Blue
Specifications
MaterialSteel
Length142 (361) in (cm)
ShockN/A
Special Features2, 3, 6
Weight145 (66) lb (kg)
Accessories/Kits/Adapters
K-4076Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube
K-4074Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube
K-4499Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths)
K-4075Landing Gear Assembly Kit for towbar with 4" diameter tube
Replacement PartsQuote?
K-1550KIT, REPL. WHEEL (SINGLE)
K-1611
K-1697KIT, REPL. SHEAR BOLT
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, RJ70, RJ85
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight200 lbs.
Pkg. 1 Dimensions120 in. x 26 in. x 18 in.
Pkg. 1 TypeCarton
Freight Class200
Freight NMFC186980-01
Schedule B8716.80.5070
Servicing

We service the 01-1161-0009 and other items like it at our facility.

A few of the common services we offer for this item are:
• Repair
• Overhaul / Refurbishment
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1161-0009. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Wheels
• Casters
• Ball Lok Pin
• Towbar Hydraulic Lift
• PDF Manual
Renting

We provide short-term and long-term rentals for the 01-1161-0009. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 01-1161-0009 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
