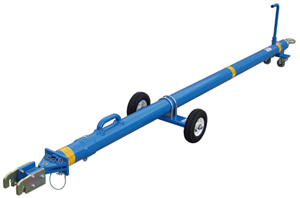

The Tronair 01-1186-0000 is a custom towbar with a bolted-on head for towing the Bombardier Challenger 600, 601, 604, 605, and 650 aircraft.
Standard Features
- Movable front wheel assembly
- Pneumatic tires
- Radial shear protection
- Rear casters
- Tension/compression shear
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Length: 140.8" (358 cm) – from eyebolt centerline to aircraft attachment centerline
- Width: 22.8" (58.1 cm)
- Height: 7.5" (19.05 cm) – from ground to aircraft attachment centerline
- Weight: 118 lbs. (53.5 kg)
| General Information | |
|---|---|
| Part # | 01-1186-0000 |
| Manufacturer | Tronair |
| NSN | 1730014598194 |
| Manual 1 | View Tronair 01-1186-0000 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 200 lbs. |
| Shipping Dimensions | 132 x 18 x 14 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Length | 141 (358) in (cm) |
| Material | Aluminum |
| Shock | Yes |
| Special Features | 1, 2, 3, 5, 6 |
| Weight | 118 (54) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-4074 | Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube |
| K-4075 | Landing Gear Assembly Kit for towbar with 4" diameter tube |
| K-4076 | Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube |
| K-4499 | Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths) |
| Spare Parts | |
|---|---|
| B-016 | Spring, Compression 3,700 lbs |
| B-017-02 | Sleeve, Inner |
| B-018-02 | Sleeve, Outer |
| B-019-02 | Sleeve, Center |
| G-1203-1095 | Jamnut, 1/2-20 Elastic |
| G-1203-1105 | Jamnut, 5/8-18 Elastic |
| G-1300-16040 | Pin, Roll, 5/32" diameter x 1-1/2" long |
| G-1322-06 | Pin, Drive-Lok Groove, 3/8 diameter x 3-1/2" long |
| G1100-105520- | Bolt, Hex Head, Grade 5, 1/4-28x2" long |
| G1100-106005- | Bolt, Hex Head, Grade 5, 5/16-18 x 5/8" long |
| G1100-107510- | Bolt, Hex Head, Grade 5, 3/8-24x1" long |
| G1100-107516- | Bolt, Hex Head, Grade 5, 3/8-24x1-3/4" long |
| G1100-107520- | Bolt, Hex Head, Grade 5, 3/8-24x2" long |
| G1100-109554- | Bolt, Hex Head, Grade 5, 1/2-20x5-1/2" long |
| G1155-107216- | Screw, Socket Head Shoulder |
| G1202-1055- | Stopnut, 1/4-28 Elastic |
| G1202-1070- | Stopnut, 3/8-16 Elastic |
| G1202-1075- | Stopnut, 3/8-24 Elastic |
| G1250-1050N- | Flatwasher, 1/4 Narrow |
| G1250-1070N- | Flatwasher, 3/8 Narrow |
| G1250-1070W- | Flatwasher, 3/8 Wide |
| G1250-1090N- | Flatwasher, 1/2 Narrow |
| G1250-1100N- | Flatwasher, 5/8 Narrow |
| G1251-1060R- | Lockwasher, 5/16 Regular |
| G1251-1070R- | Lockwasher, 3/8 Regular |
| G1300-16050- | Pin, Roll, 5/32" diameter x 5/8" long |
| G1300-25340- | Pin, Roll, 1/4" diameter x 3-1/2" long |
| G1307-0422- | Pin, Shear (Tension/Compression) |
| G1420-106006- | Bolt, Hex Head, Grade 8, 5/16-18 2" long |
| G1452-22- | Pin, Shear |
| H-1205 | Cover, Handle |
| H-1537-08 | Clamp, Muffler |
| H-1725-03 | Bushing, Headless |
| H1724-03- | Bushing, Head Press Fit |
| J-1268 | Adapter, Axle |
| J-1269 | Adapter, Axle |
| K-1380 | Kit, Axle Locking Mechanism Replacement |
| TR-1118-05 | Tube, Outer Shear |
| TR-1857-01 | Tube, Handle |
| U-1024 | Wheel, Pneumatic Tire |
| V-1000 | Caster, Swivel |
| X-1020 | Assembly, Head |
| Z-0107 | Assembly, Shock/Shear |
| Z-0130 | Weldment, Axle Locking |
| Z-1453-05 | Machining, Eyebolt |
| Z-1492-01 | Weldment, Head |
| Z-2060-01 | Machining, Shear Plate |
| Z-5643-01 | Weldment, Axle Mounting |
| Z-5945-014 | Machining, Towbar |
Customers also viewed
Casa CN-235 / HC-144A Towbar
Portable Towbar with Towbar Head – Challenger 600, 601, 604, 605, & 650 Aircraft
Custom Towbar for Sikorsky S-61, S-70, UH-60, SH-60, & Boeing Apache Helicopters
Multi-Head Aircraft Towbar, 66,000-lb. Capacity
Towbar, Saab Sf-340 Custom (Ce
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Challenger 600 , Challenger 601 , Challenger 604 , Challenger 605 (CL605) , Challenger 650 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
