Tronair 01-1229-0011 CRJ / Hawker 4000 Towbar
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

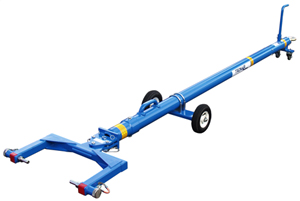

The Tronair 01-1229-0011 is an aircraft towbar with head for the CRJ100/200, Challenger, and Hawker 4000 aircraft. This towbar has a max aircraft gross weight towing capacity of 53,000 lbs.
The custom towbars include an aircraft attachment by machined pins on the towing head which attach to the nose landing
gear. There is a handle and an eyebolt at the end of the towbar for towing. The eyebolt incorporates a compression spring to
dampen shock loads during towing.
Standard Features
- Positive locking mechanism to aircraft tow point
- Handles provided to lift towbar into position
- Unpainted surfaces plated to resist corrosion
- CE marked
- Finish: Durable Powder Coat Tronair Blue
Special Features Included
- Movable front wheel assembly
- Pneumatic tires
- Radial Shear
- Tension/compression shear
Details
- Maximum Aircraft Gross Weight: 53,000 lbs (23.7 kg)
- Length: 146 13/16 in (372.9 cm) From eyebolt centerline to aircraft attachment centerline
- Width: 29 5/16 inch (74.4 cm)
- Height: 20 11/16 in (52.4 cm)
Shear Rating
- Axial: 10,850 lbs (4,921.5 kg)
- Radial: 40,000 in-lb (4,519.4 N-m)
| General Information | |
|---|---|
| Part # | 01-1229-0011 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight (Piece 1) | 215 lbs. |
| Shipping Dimensions (Piece 1) | 134 x 21 x 16 in. |
| Shipping Weight (Piece 2) | 68 lbs. |
| Shipping Dimensions (Piece 2) | 43 x 39 x 9 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Length | 146 (371) in (cm) |
| Material | Aluminum |
| Shock | Yes |
| Special Features | 1, 2, 3, 6 |
| Weight | 120 (54) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-4074 | Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube |
| K-4075 | Landing Gear Assembly Kit for towbar with 4" diameter tube |
| K-4076 | Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube |
| K-4499 | Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths) |
| Spare Parts | |
|---|---|
| G-1446-22 | PIN, SHEAR |
| K-1112 | KIT, REPL. WHEEL (SINGLE) |
| K-4075 | KIT, TOWBAR HYD LIFT (4") |
| R-1430 | PIN, SLIDING |
Customers also viewed
for Series 500 & 600 Towbar Heads
Two Piece Mult Head
Portable Towbar Seahawk (CE) - Sikorsky MH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i
Towbar, Custom S-76c Flir
Portable Piaggio P-180 Avanti Towbar
Customers who bought this item also purchased
Tailstand - Without Alarm - Jetstream 31, Bell 525, Challenger 600, 601, 604, 605, 650, 850, CRJ100, CRJ200, Falcon 50/50EX, and Premier.
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Challenger 850 , CRJ100 , CRJ200 |
| Hawker Beechcraft | Hawker 4000 (Horizon) |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
