Tronair 01-1272-0000 Gulfstream G200 Galaxy Custom Towbar
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
What is a Tronair 01-1272-0000?

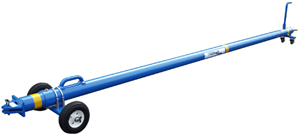

The Tronair 01-1272-0000 custom towbar is designed for towing Gulfstream G200 (Galaxy) aircraft.The custom towbar has an aircraft attachment on the towing head to the nose landing gear tow point. There is a handle and an eyebolt with a shock dampener at the end of the towbar for towing.
Standard Features
- Positive locking mechanism to aircraft tow point
- Tension, compression and/or radial shear protection incorporated where required
- Handles provided to lift towbar into position
- Unpainted surfaces plated to resist corrosion
- Pneumatic or semi-pneumatic tires
- CE marked
- Finish: Durable Powder Coat Tronair Blue
| General Information | |
|---|---|
| Part # | 01-1272-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 01-1272-0000 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 200 lbs. |
| Shipping Dimensions | 186 x 20 x 16 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Length | 178 (452) in (cm) |
| Material | Aluminum |
| Shock | Yes |
| Special Features | 3, 5, 6 |
| Weight | 126 (57) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-4074 | Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube |
| K-4075 | Landing Gear Assembly Kit for towbar with 4" diameter tube |
| K-4076 | Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube |
| K-4499 | Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths) |
| Spare Parts | |
|---|---|
| G-1100-105520 | Bolt, Hex Head, Grade 5, ¼ - 28 x 2″ long |
| G-1100-106005 | Bolt, Hex Head, Grade 5, 5/16 – 18 x 5/8″ long |
| G-1100-109554 | Bolt, Hex Head, Grade 5, ½ - 20 x 5 –1/2″ long |
| G-1202-1055 | Stopnut, ¼ - 28 Elastic |
| G-1203-1095 | Jamnut, ½ - 20 Elastic |
| G-1203-1105 | Jamnut, 5/8-18 Elastic |
| G-1250-1050N | Flatwasher, ¼ Narrow |
| G-1250-1090N | Flatwasher, ½ Narrow |
| G-1250-1100N | Flatwasher, 5/8 Narrow |
| G-1251-1060R | Lockwasher, 5/16 Regular |
| G-1310-0920 | Pin, Ball Lok-T |
| G-1351-04 | Rivet, Pop |
| G-1420-106006 | Bolt, Hex Head, Grade 8, 5/16 – 18 ¾″ long |
| H-1026*07.0 | Assembly, Lanyard |
| H-1537-08 | Clamp, Muffler |
| TR-1857-01 | Tube, Handle |
| U-1000 | Caster, Swivel |
| U-1024 | Wheel, Pneumatic Tire |
| X-1048 | Assembly, Head |
| Z-3999 | Assembly, Shock |
| Z-5574 | Machining, Head |
| Z-5643-01 | Weldment, Axle Mounting |
| Z-5746-01 | Machining, Towbar |
Customers also viewed
Multi-Head Aircraft Towbar, 125,000-lb. Towing Capacity
Portable Towbar for Gulfstream G200 (Astra Galaxy) Aircraft
Portable Towbar with Head for Global Express, Global 5000, and Global 6000 Aircraft
Snap-Back Portable Towbar for JPATS Aircraft
Custom Gulfstream Towbar with Head - GII-GV (CE)
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Gulfstream | G150 , G200 (Galaxy) , G280 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
