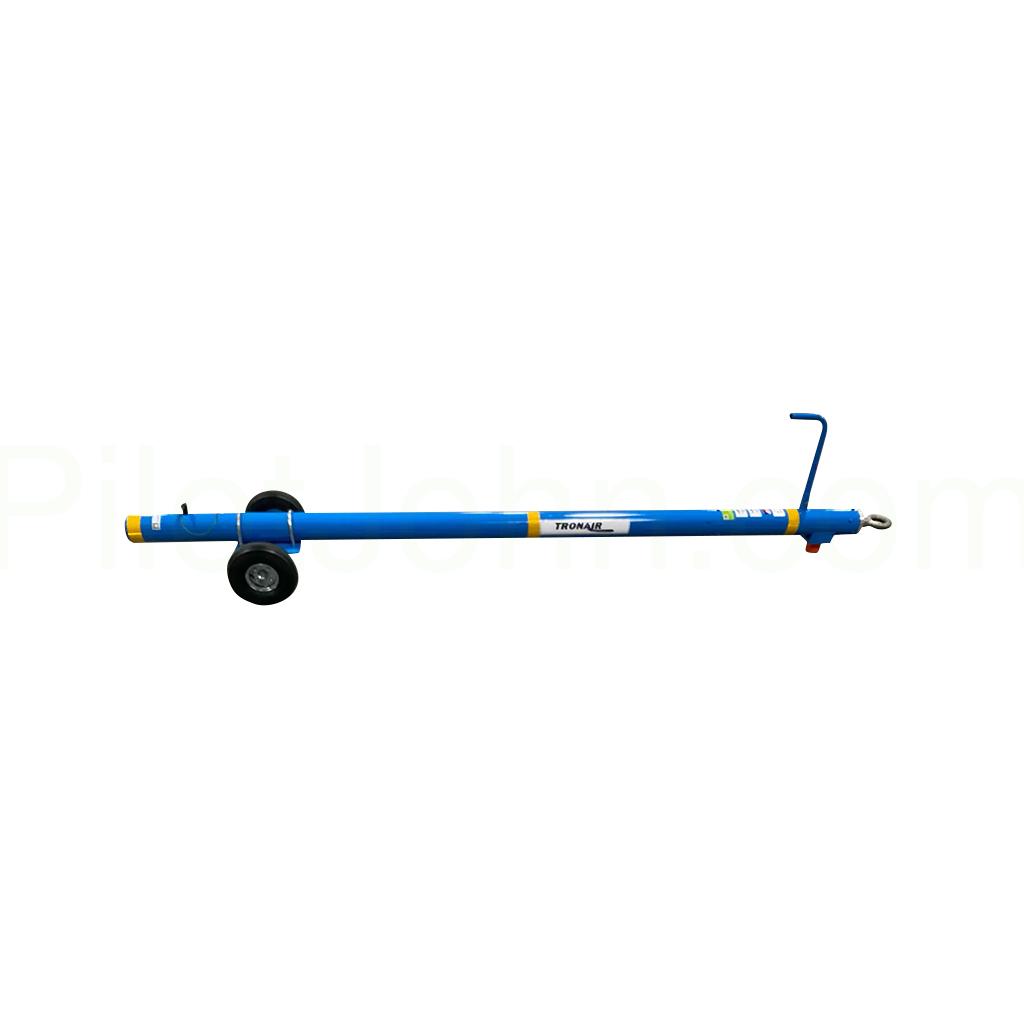

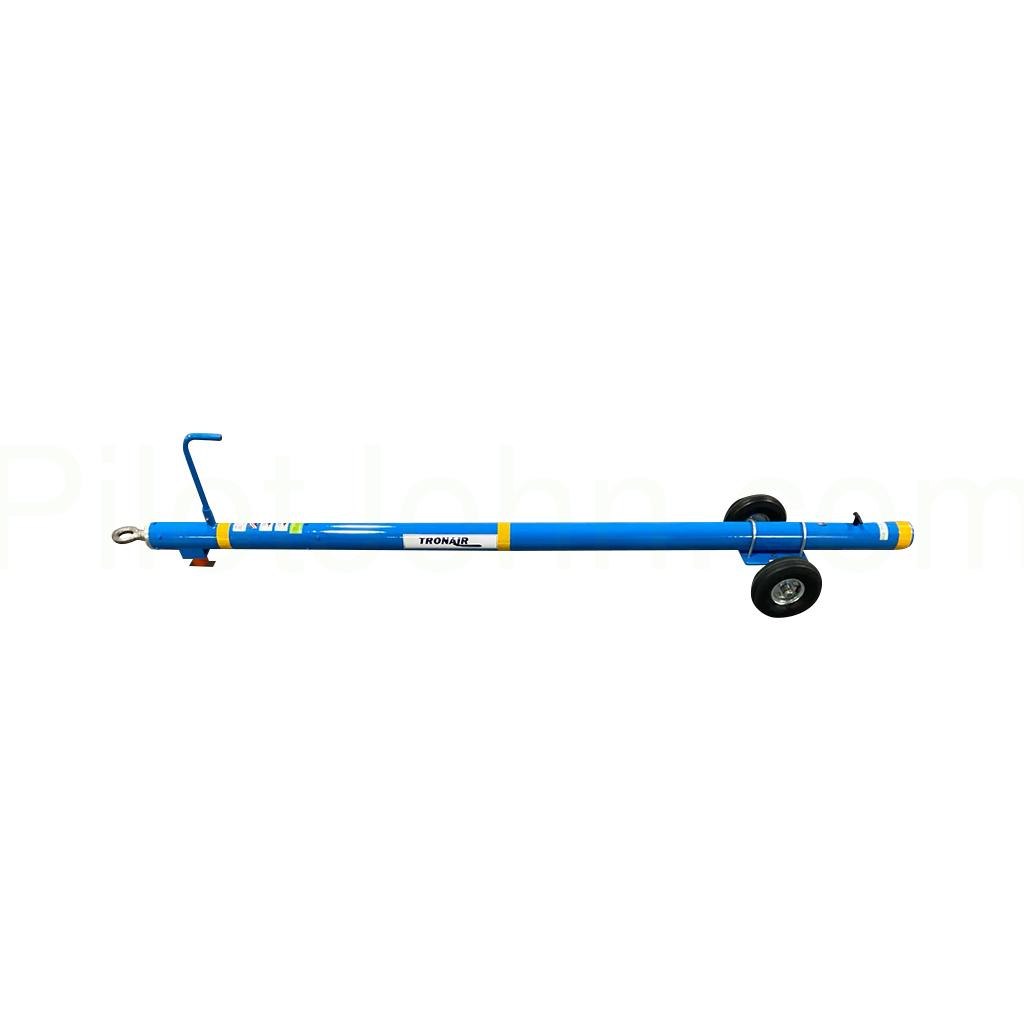

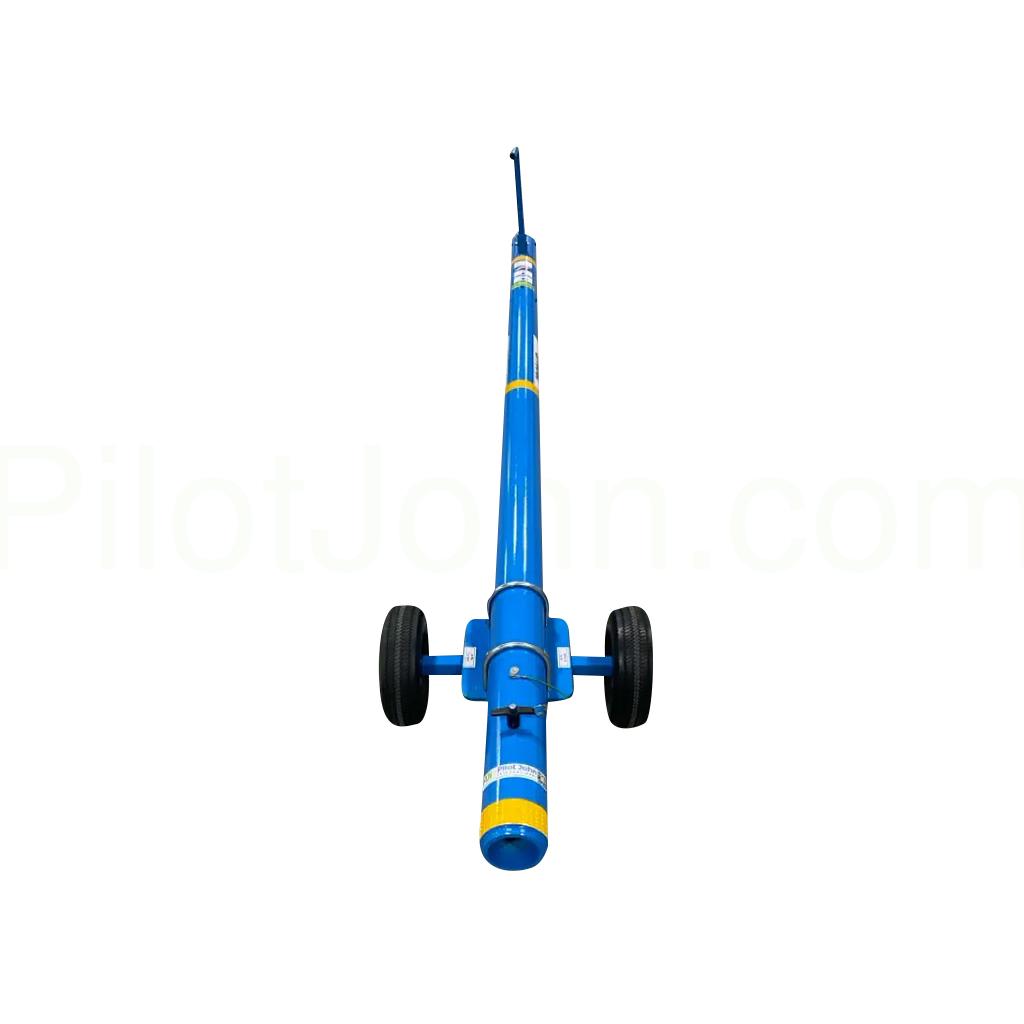

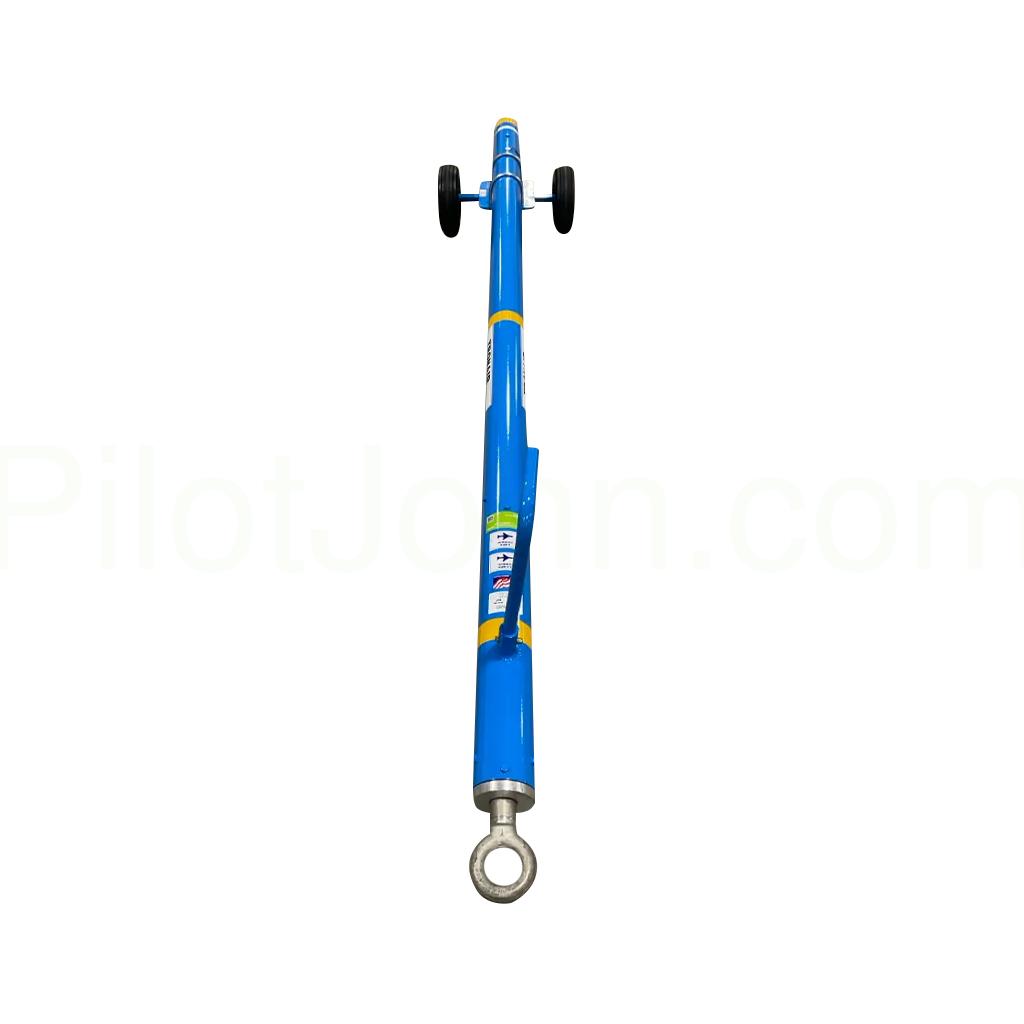

The Tronair 01-1270-0010, 01-1270-0010SP, 01A1270-0010, 01A1270-0010SP, 01B1270-0010 and 01B1270-0010SP multi-head towbars are multiple aircraft towbars for use with the Tronair Series 800 Multi-Heads.
The multi-head towbar includes pneumatic tires with a steel skid at the tug end. The eyebolt at the towing end of the towbar which incorporates a spring to dampen shock loads.
800 Series Towbar Heads
This towbar is for use with Tronair 800 series aircraft heads only.Towbar Heads Adaptor Kit
K-4187 is for use on this towbar to use 500 series towbar heads. (Required)Standard Features
- Attachment heads easily change and securely attach to towbar in seconds
- Multi-head system saves space and capital investment
- Heavy duty welded aluminum construction
- Standard 2 3/16 in (5.6 cm) I.D. towing eye
- Positive locking pin secures attachment heads to towbar
- Both towbar and attachments adhere to aircraft manufacturer's towing specifications
- Heavy duty shock assembly with single spring for nose gear protection during towing operation
- 10 in (25 cm) pneumatic wheels with steel bearings and movable truck assembly
- Upright handle makes lifting easier
- CE marked
- Finish: Durable Powder Coat Tronair Blue
Towbar Heads
This towbar requires a towbar head to fit to your specific aircraft application. If you do not have a towbar head or need a quote on a head, please advise aircraft application at the time of requesting a quote.| Alternate Models | |
|---|---|
| 01-1270-0000 | Previous Model Number |
| Specifications | |
|---|---|
| Length | 128 (325) in (cm) |
| Wheel Size | 10 (25) in (cm) |
| Width | 23 (58) in (cm) |
| Aircraft Weight Capacity | 125,000 (56,699) lb (kg) |
| Weight | 118 (54) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-3785 | Rear Impact Caster Kit |
| K-4076 | Towbar Hydraulic Lift Kit for towbar with 4 1/2" diameter tube |
| Replacement Parts | Quote? | |
|---|---|---|
| K-1550 | KIT, REPL. WHEEL (SINGLE) | |
| K-1145 | ||
| K-2537 | ||
| K-2664 | KIT, AXLE (P) | |
| K-3524 | KIT, BALL LOK-T PIN REPL. | |
| K-3734 | KIT, REPL. SKID (P) | |
| K-4076 | KIT, TOWBAR HYD LIFT (4.5) | |
| K-3274 | KIT, SHOCK ASSEMBLY | |
| K-2663 | KIT, WHEEL-TOWBAR BRACKET (P) | |
| Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you. | ||
| Compatible Aircraft* | |
|---|---|
| Bombardier (Business) | Challenger 870, Challenger 890, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS |
| Bombardier (Regional) | CRJ1000, CRJ700, CRJ705, CRJ900 |
| Gulfstream | G350, G450, G500, G550, G650, II, III, IV, IVSP, V, VSP |
| Shipping Information | |
|---|---|
| Pkg. 1 Weight | 180 lbs. |
| Pkg. 1 Dimensions | 139 in. x 25 in. x 16 in. |
| Freight Class | 200 |
| Freight NMFC | 186980-01 |
| Schedule B | 8716.80.5070 |
Servicing
We service the 01-1270-0010 and other items like it at our facility.
Parts
As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1270-0010. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
Renting
We provide short-term and long-term rentals for the 01-1270-0010. We will ship the item directly to you and arrange for pickup at the end of your lease.
Sell or Trade-In
We can purchase your used 01-1270-0010 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
