Tronair 01-1269-0020 Custom Global Express Towbar & Head (CE)

Tronair 01-1269-0020
Manufacturer: Tronair
Part Number: 01-1269-0020
NSN: 1730-01-501-7969
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Head, Global Express (Ce)
Gulfstream Head (Ce) - G350, G450, G500, G550, II, III, IV, V, VSP, 650
Tow up to 125,000 lbs (CE)
Custom Crj-700 Towbar (Ce) - 2 7/8 in (7.3 cm) I.D. Eyebolt
Towbar, Custom Casa C295 (Ce)

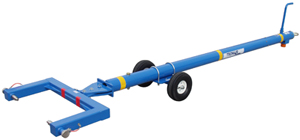

The Tronair 01-1269-0020 is a custom aircraft towbar and head designed for the Bombardier Global Express aircraft. This unit is able to tow up to 95,000 lbs.

The custom towbar includes pneumatic tires with a urethane skid at the tug end. There is an eyebolt at the towing end of the towbar which incorporates a spring to dampen shock loads. The towing head has machined pins which attach to the aircraft tow point.

Standard Features

  • Positive locking mechanism to aircraft tow point
  • Tension, compression and/or radial shear protection incorporated where required
  • Handles provided to lift towbar into position
  • Unpainted surfaces plated to resist corrosion
  • Pneumatic or semi-pneumatic tires
  • CE marked
  • Finish: Durable Powder Coat Tronair Blue
Alternate Models
01-1269-0100Previous Part Number
01-1269-0100-10Previous Part Number
Specifications
MaterialAluminum
Length152 (381) in (cm)
ShockYes
Special Features2, 3, 6
Weight173 (79) lb (kg)
Accessories/Kits/Adapters
K-4076Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube
K-4074Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube
K-4499Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths)
K-4075Landing Gear Assembly Kit for towbar with 4" diameter tube
Replacement PartsQuote?
K-1736KIT, REPL. WHEEL (SINGLE)
K-1550KIT, REPL. WHEEL (SINGLE)
K-1949KIT, REPL. PIVOT BOLT
K-3976KIT, TOWBAR TUBE (P)
K-2657KIT, SHEAR PLATE (P)
K-3734KIT, REPL. SKID (P)
K-2664KIT, AXLE (P)
K-2660KIT, HANDLE
K-3274KIT, SHOCK ASSEMBLY
K-2663KIT, WHEEL-TOWBAR BRACKET (P)
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
Bombardier (Business)Global 5000, Global 6000, Global Express, Global Express XRS
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight180 lbs.
Pkg. 1 Dimensions140 in. x 26 in. x 18 in.
Pkg. 2 Weight95 lbs.
Pkg. 2 Dimensions43 in. x 39 in. x 9 in.
Freight Class200
Freight NMFC186980-01
Schedule B8716.80.5070
Servicing

We service the 01-1269-0020 and other items like it at our facility.

A few of the common services we offer for this item are:
• Repair
• Overhaul / Refurbishment
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1269-0020. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Wheels
• Casters
• Ball Lok Pin
• Towbar Hydraulic Lift
• PDF Manual
Renting

We provide short-term and long-term rentals for the 01-1269-0020. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 01-1269-0020 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
