Tronair 01-0810-0000 Global 7000 / 8000 Towbar Head
In Stock
Ready to ship today if you order in the next 12 hours and 14 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

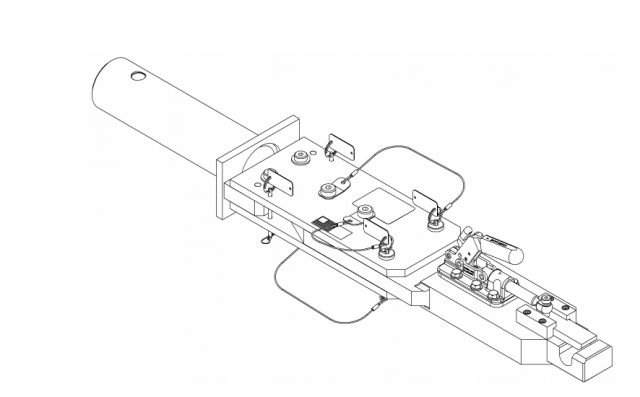

The Tronair 01-0810-0000 is a towbar head attachment for the Bombardier Global 7000/8000 aircraft.
Specifications
- Aircraft Gross Weight (Maximum): 115,000 lbs (52,163 kg)
- Width: 6 1/2 in (16.5 cm)
- Length: 41 3/4 in (106 cm) overall
- Height: 6.72 in (17.1 cm)
- Weight: 89.4 lbs (40.6 kg)
- Finish: Blue Powder Coat
| General Information | |
|---|---|
| Part # | 01-0810-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 01-0810-0000 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 68 lbs. |
| Shipping Dimensions | 17 x 14 x 45 in. |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-106516 | Bolt, Hex Head Grade 5, 5/16 - 24 |
| G-1151-105210 | Screw, Cap ¼ - 20 x 1 long |
| G-1155-106210 | Screw, Shoulder, ⅜ diameter |
| G-1155-109220 | Screw, Shoulder ⅝ diameter |
| G-1202-1090 | Stopnut, ½ - 13 Elastic |
| G-1207-1065 | Stopnut, 5/16 - 24 Elastic |
| G-1250-1060N | Flatwasher, 5/16 Narrow |
| G-1250-1100N | Flatwasher, ⅝ Narrow |
| H-1724-14 | Bushing |
| H-1725-29 | Bushing |
| H-2923 | Clamp, Toggle |
| H-2943 | Rod End |
| H-3221-12.0 | Assembly, Lanyard |
| J-6082 | Guide, Slide |
| J-6083 | Plate, Slider |
| J-6084 | Spacer |
| Z-8684 | Assembly, Head |
| Z-8685-01 | Machining, Shear Plate |
| Z-8695 | Assembly, Shear Pin |
Customers also viewed
Standard Multi-Head Aircraft Towbar, 75,000-lb. Capacity
Multi-Head Aircraft Towbar, 125,000-lb. Towing Capacity
32" to 60", CE-Marked
Multi-Head Aircraft Towbar, 125,000-lb. Towing Capacity
FoxCart 1600 Aircraft GPU – 50/60 Hz, 800A Continuous, 1,600A Peak Start
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
Global 7000
,
Global 7500
NOTE
This towbar head is required for the Multi-Head Towbars (01-1270-0010 and 01-1290-0100).
,
Global 8000
NOTE
This towbar head is required for the Multi-Head Towbars (01-1270-0010 and 01-1290-0100).
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
