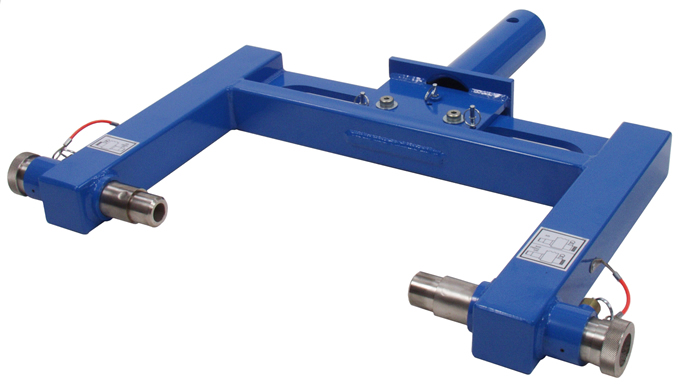

Tronair 01-0806-0010 Towbar Head for Select Gulfstream Aircraft
Create yours now for free.
Need a Quote?
The Tronair 01-0806-0010 Towbar Head is engineered for use with multi-head towbars and is specifically designed to fit select Gulfstream aircraft. Its heavy-duty welded steel construction ensures long service life and reliable performance during ground handling operations.
Compatible with Tronair’s full line of multi-head towbars – including models 01-1270-0010 and 01-1290-0100 – it provides a secure connection with positive ball-lock T-pin locking. Integrated shear protection safeguards nose gears against radial and compression tension forces, while the durable powder-coat Tronair Blue finish resists wear in demanding ramp environments.
Specifications
- Maximum Aircraft Gross Weight: 125,000 lbs (57.7 metric tons)
- Length: 34.6” (87.9 cm)
- Height: 4” (10.16 cm)
- Width: 35.6” (89.5 cm) at the widest sliding pin setting
- Weight: 89 lbs (40.4 kg)
| Alternate Models | |
|---|---|
| 01-0802-0011 | Previous Towbar Head Model Number for GII - GV Aircraft |
| 01-0806-0000 | Previous Part Number |
| General Information | |
|---|---|
| Part # | 01-0806-0010 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 01-0806-0010 Parts, Service, and Operating Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 258 lbs. |
| Shipping Dimensions | 49 x 48 x 18 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1155-109220 | Screw, 5/8 x 2.0" LG Socket HD Shoulder |
| G-1202-1090 | Stopnut, 1/2-13 Elastic |
| G-1250-1100N | Flatwasher, 5/8 Narrow |
| G-1300-19040 | Pin, Roll |
| H-3221-07.0 | Assembly, Lanyard |
| H-4853 | Spring, Plunger |
| K-4993 | Kit, Sliding Pin Replacement |
| R-2513 | Pin, Sliding |
| R-2514 | Pin, Sliding |
| Z-7252-00 | Machining, Shear Plate |
| Z-7271-00 | Weldment, Head |
| Z-7625 | Assembly, Shear Pin |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Gulfstream |
G350
NOTE
This towbar head attachment is required for use on the Multi-Head Towbar (01-1270-0010 or 01-0806-0010).
,
G450
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G500
NOTE
This towbar head attachment is required for the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G550
NOTE
This towbar head attachment is required for the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G600
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G650
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G650ER
NOTE
This towbar head attachment is required for the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
G700
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
II
NOTE
This towbar head attachment is required for the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
III
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
IV
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
IVSP
NOTE
This towbar head attachment is required for use with the Multi-Head Towbar (01-1270-0010 or 01-1290-0100).
,
V
NOTE
This towbar head is required for use with the Multi-Head towbars (01-1270-0010 or 01-1290-0100).
,
VSP
NOTE
This towbar head is required for use with the Multi-Head Towbars (01-1270-0010 or 01-1290-0100).
|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The head attaches to the towbar using a ball-lock T-pin, which is supplied with the multi-head towbar. This system ensures a strong, reliable connection while allowing for quick attachment and removal.
The shear pins are safety devices designed to fail under excessive stress, protecting the aircraft and tug from potential damage. Operators should always verify that the shear pins are intact and keep spare pins available in case replacements are needed.
Operators should inspect welds for cracks, check shear pins to ensure they are not broken or missing, and confirm that sliding pins move freely. Using a damaged or bent towbar or one with a missing shear pin may damage aircraft or create safety risks for personnel.
Towbar heads should be inspected at least once a week for cracks, bending, or wear. Particular attention should be given to shear plates, sliding pins, welds, and retaining mechanisms. Regular inspection ensures safe towing operations and prevents unexpected failures.
Tronair recommends operators keep a K-4993 Replacement Sliding Pin Kit in stock. This ensures that worn or damaged pins can be replaced quickly, minimizing downtime.
Yes, the towbar head meets European Community guidelines and carries the CE mark. This ensures compliance with relevant safety and manufacturing standards, making it suitable for international operations.
Tronair warrants the towbar head to be free from manufacturing and material defects for one year after shipment to the original customer. Replacement parts carry a 90-day warranty. Unauthorized modifications or use outside the guidelines of the manual will void the warranty.
