Tronair 01-1296-0000 Portable Challenger 300/350 Towbar (CE)

Tronair 01-1296-0000
Tronair 01-1296-0000
Manufacturer: Tronair
Part Number: 01-1296-0000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Challenger 300 / 350 - Towbar Head (Ce)
Gulfstream Gi/Gii/Giii/Giv (Ce)
Tow up to 66,000 lbs (CE) - Multi-Head
Towbar, Multi-Head (Ce) - Hydraulic - Tow up to 125,000 lbs
Embraer Phenom 300 Portable Towbar (Ce)

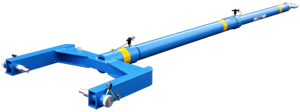

The Tronairl 01-1296-0000 portable towbar is a lightweight, carry-on towbar for the Challenger 300 / 350 aircraft.

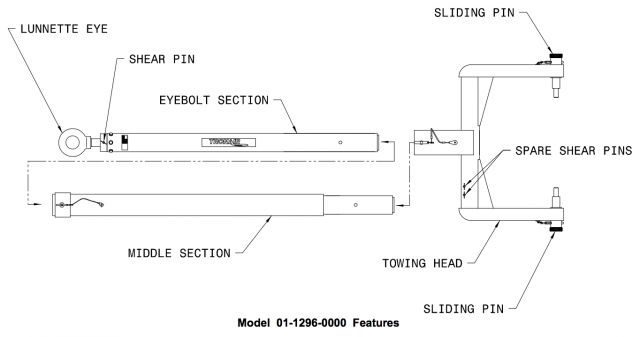

The portable towbar includes separating sections for compact storage. The aircraft attachment is by machined pins on the towing head to the nose landing gear. There is an eyebolt with shock protection at the end of the towbar for towing.

Additional Specs

  • Aircraft Application: Canadair Bombardier Aerospace Challenger 300 / 350
  • Maximum Aircraft Gross Weight: 40,000 lbs (18.1 Metric tons)
  • Length: 118.75 in (301.6 cm) From eyebolt centerline to aircraft attachment centerline including middle section - Without middle section: 70.75 in (179.7 cm) From eyebolt centerline to aircraft attachment centerline.
  • Width: 37.25 in (94.6 cm)
  • Heigh: 6.0 in (15.2 cm)
  • Weight: Eyebolt Section = 20 lbs (9.1 kg)
  • Middle Section: 23 lbs (10.4 kg)
  • Towing Head: 18 lbs (8.2 kg)
  • Finish: Blue Powder Coat

Standard Features

  • Compact to provide away from home towing capacity
  • Shear protection is included when required by aircraft manufacturer
  • Lightweight
  • CE marked
  • Finish: Durable Powder Coat Tronair Blue
Specifications
MaterialAluminum
Extended119 (302) in (cm)
Weight61 (28) lb (kg)
Shear ProtectionYes
Closed56 (142) in (cm)
Replacement PartsQuote?
K-3695KIT, REPL. SHEAR PIN (D)
K-2806KIT, 48" EXTENSION (P)
K-1882KIT, REPL BALL LOCK PIN
R-2092PIN, SLIDING
K-1337KIT, REPL. BALL LOC PIN
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
Bombardier (Business)Challenger 300, Challenger 350
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight85 lbs.
Pkg. 1 Dimensions86 in. x 34 in. x 9 in.
Pkg. 1 TypeCarton
Freight Class200
Schedule B8716.90.0000
Servicing

We service the 01-1296-0000 and other items like it at our facility.

A few of the common services we offer for this item are:
• Repair
• Overhaul / Refurbishment
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1296-0000. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Wheels
• Casters
• Ball Lok Pin
• Towbar Hydraulic Lift
• PDF Manual
Renting

We provide short-term and long-term rentals for the 01-1296-0000. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 01-1296-0000 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
