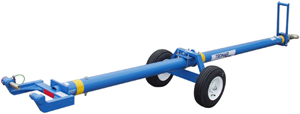

Tronair 01-1291-0010 Custom Citation Towbar With Head (CE)
Get a Quote or Ask a Question
| Name: | E-Mail: |
| Company Name: | Phone: (optional) |
| Questions/Comments: (optional) | |
The Tronair 01-1291-0010 custom towbar is a designed for towing the Cessna Citation III, VI, VII, X, & Excel aircraft
The custom towbar includes pivoting aircraft attachment arms for remote interface to the aircraft tow point. There is a handle
and an eyebolt at the end of the towbar for towing. The eyebolt incorporates a compression spring to dampen shock loads
during towing.
Standard Features
- Positive locking mechanism to aircraft tow point
- Tension, compression and/or radial shear protection incorporated where required
- Handles provided to lift towbar into position
- Unpainted surfaces plated to resist corrosion
- Pneumatic or semi-pneumatic tires
- CE marked
- Finish: Durable Powder Coat Tronair Blue
| Specifications | |
|---|---|
| Material | Aluminum |
| Length | 138 (351) in (cm) |
| Shock | Yes |
| Special Features | 2, 3, 6 |
| Weight | 116 (53) lb (kg) |
| Accessories/Kits/Adapters | |
|---|---|
| K-4076 | Landing Gear Assembly Kit for towbar with 4 1/2" diameter tube |
| K-4074 | Landing Gear Assembly Kit for towbar with 3 1/2" diameter tube |
| K-4499 | Converts 01-1308-0000 to 01-1308-0010 (accomodates new nose gear widths) |
| K-4075 | Landing Gear Assembly Kit for towbar with 4" diameter tube |
| Replacement Parts | Quote? | |
|---|---|---|
| K-4193 | Kit, 01-0594 Checking Fixture | |
| G-1307-0321 | PIN, 3/16 X 2.1 LG MODEL C | |
| K-3462 | ||
| K-4074 | KIT, TOWBAR HYD LIFT (3.5) | |
| K-3471 | ||
| K-3461 | KIT, REPL BALL LOK-T PIN | |
| Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you. | ||
| Compatible Aircraft* | |
|---|---|
| Cessna | Citation 560 XL, Citation 560 XLS, Citation 650, Citation III, Citation IV, Citation Longitude 700, Citation Sovereign 680, Citation VI, Citation VII, Citation X 750, Latitude 680A |
| Shipping Information | |
|---|---|
| Pkg. 1 Weight | 200 lbs. |
| Pkg. 1 Dimensions | 140 in. x 26 in. x 18 in. |
| Pkg. 1 Type | Carton |
| Freight Class | 200 |
| Freight NMFC | 186980-01 |
| Schedule B | 9032.81.0080 |
Servicing
We service the 01-1291-0010 and other items like it at our facility.
Parts
As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1291-0010. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
Renting
We provide short-term and long-term rentals for the 01-1291-0010. We will ship the item directly to you and arrange for pickup at the end of your lease.
Sell or Trade-In
We can purchase your used 01-1291-0010 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
