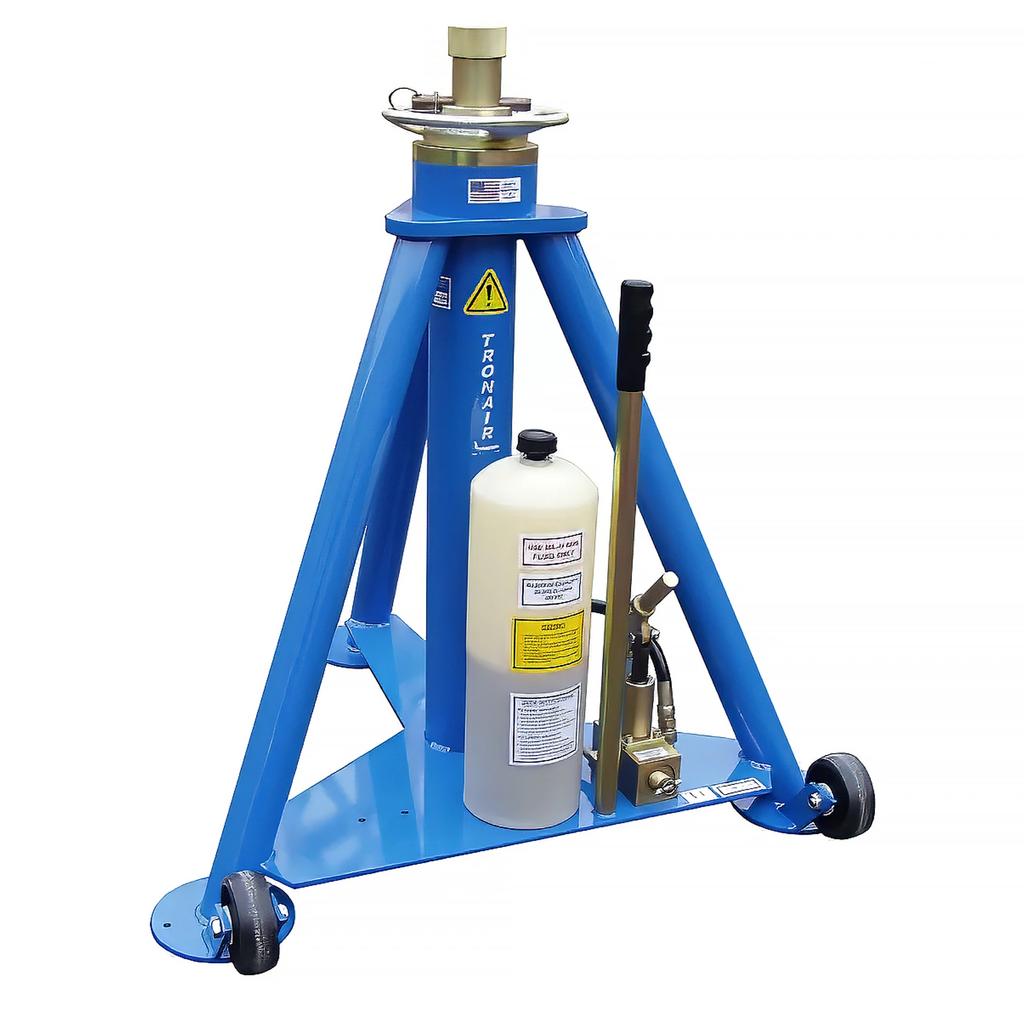

02-7807-0100 - Tronair 02-1032C0111 – 10-Ton Tripod Jack
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
Specific Part Number
The 02-7807-0100 is a specific part number of the series Tronair 02-1032C0111. For more generalized information on this item series or for more options, click here.
Do you want an air pump installed on the jack?:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
| Alternate Models | |
|---|---|
| 02-1030-0100 | Previous Model Number |
| 02-1032-0100 | Previous Model Number |
| 02-1032-0100-01 | Alternative Manufacturer Part Number |
| 02-1032-0110 | Previous Model Number |
| 02-1032-0111 | Previous Model Number |
| 02-7807-0100 | Similiar Model Number |
| 02A1032C0111 | Air Pump Installed (CE) |
| 1030-10C | Previous Tronair Jack Model Number |
| K-1043-05 | Field Install Kit - Air Pump |
| General Information | |
|---|---|
| Part # | 02-7807-0100 |
| Manufacturer | Tronair |
| NSN | 1730013086956 |
| Manual 1 | View Tronair 02-1032C0111 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 240 lbs. |
| Shipping Dimensions | 39 x 38 x 39 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
Customers also viewed
40" to 78", CE-Marked, Aft Fuselage
26" to 50", CE-Marked
36" to 70", CE-Marked, Main Landing Gear
44" to 76", CE-Marked
32" to 60", CE-Marked
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Boeing | 717 , DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 |
| Bombardier |
Challenger 600
NOTE
This jack is used on the aircraft's nose landing gear.
,
Challenger 601
NOTE
This jack is used on the aircraft's nose landing gear.
,
Challenger 604
NOTE
This jack is used on the aircraft's nose landing gear.
,
Challenger 605 (CL605)
NOTE
This jack is used on the aircraft's nose landing gear.
,
Challenger 650
NOTE
This jack is used on the aircraft's nose landing gear.
,
Learjet 45
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
,
Learjet 60
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
,
Learjet 70
NOTE
This jack is used on the aircraft's main landing gear. Two jacks are required per aircraft.
,
Learjet 75
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
|
| Cessna |
Citation 650
NOTE
Two main landing gear jacks and two adapters (R-1276) per aircraft are required.
,
Citation III
NOTE
This jack is used on the main landing gear. Two jacks and two jack pad adapters (R-1276) per aircraft are required.
,
Citation VI
NOTE
This jack is used on the main landing gear. Two jacks and two jack pad adapters (R-1276) per aircraft are required.
,
Citation VII
NOTE
Main landing gear jack – Two jacks and two adapters (R-1276) per aircraft are required.
|
| Embraer |
EMB-120
NOTE
One nose jack, two main jacks, and two jack adapters are required per aircraft.
|
| Gulfstream |
G150
NOTE
This jack is used on the main landing gear. Two jacks per aircraft are required.
,
G200 (Galaxy)
NOTE
This jack is used on the main landing gear. Two jacks per aircraft are required.
,
G280
NOTE
This jack is used on the main landing gear. Two jacks per aircraft are required.
|
| Hawker Beechcraft |
Hawker 1000
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
,
Hawker 4000 (Horizon)
NOTE
This jack is used on the aircraft's main and nose landing gear. Two main jacks and one nose jack are required per aircraft.
,
HS-125 400 Series
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
,
HS-125 800 / 850 / 900 Series
NOTE
This jack is used on the aircraft's main landing gear. Two main jacks are required per aircraft.
,
T-1 Jayhawk
NOTE
This jack is used on the aircraft's main jack. Two main jacks are required per aircraft.
,
T-400
NOTE
This jack is used on the aircraft's main jack. Two main jacks are required per aircraft.
|
| McDonnell Douglas | DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Chris Carr, a Maintenance Facility in Hamden, CT
05/14/2026 08:18:57 AM
Excellent piece of equipment. Great price. Fits all our needs. Cydney Bishop was a pleasure to work with. Would definitely do business with them again in the future.
5/5
by Wendy, an Airline in Tampa, FL
03/19/2024 07:33:09 AM
Very heavy duty, durable ton jacks. We had smaller ones but these are very nice and easy to lift our planes up and down with ease. Would definitely recommend to anyone that works on airplanes or heavy equipment. Fast shipping and easy transactions
5/5
by Anonymous in Waterford, MICHIGAN
03/07/2024 08:00:53 PM
We really like our new Tronair jacks. We have been using similar jacks for years for our Hawker fleet. But our company has found a need to purchase a second set. We opted for pneumatic assisted jacks with a control manifold. This makes the task of jacking our aircraft much easier.
5/5
by Raul tapia in Zapopan Jalisco Mexico
04/24/2023 10:55:29 AM
The best way to get everything is here. Fast and safe way. The delivery was perfect. Going to get more stuff over here. Emily my sale manager was all the time in contact with me by email
5/5
by Anonymous, a FBO
12/19/2019 01:49:08 PM
Excellent product! recommended! Fast shipping and packed very well. Sales called back with quotes fast and went the extra mile to going in the right tack. Will recommend this GSE company to all my friends in the helicopter world.
5/5
by ISABELLA AMARAL, a Maintenance Facility in KS
07/16/2019 09:55:13 AM
It is a great product, we always come back! The customer service is always quick to respond in case we have any troubles, but the product quality is always as expected and as quoted.
5/5
by Chris Macintyre in Canada
06/28/2019 03:00:53 PM
Process could not have been smother.
QUESTIONS & ANSWERS
Question:
What is the part number for the translucent reservoir for this jack?
Answer:
HC-2329 is the replacement translucent reservoir for this tripod jack.
Asked December 5, 2023
Question:
What is the part number for the stop jack for this unit?
Answer:
TR-1505 is the replacement stop jack for this tripod jack.
Asked December 5, 2023
Question:
What is the part number for the jack model label for this unit?
Answer:
V-2840 is the replacement jack model label for this tripod jack.
Asked December 5, 2023
Question:
What is the part number for the jack pad for this unit?
Answer:
HJ-557 is the replacement jack pad for this tripod jack.
Asked December 5, 2023
Question:
What is the part number for the wheel for this tripod jack?
Answer:
U-1002 is the replacement wheel for this tripod jack.
Asked December 5, 2023
Question:
What is the part number of the extension shaft for this unit?
Answer:
HJ-225-01 is the replacement extension shaft for this tripod jack.
Asked December 5, 2023
Question:
What is the part number for the ram assembly for this jack?
Answer:
HJ-586-01 is the replacement ram assembly for this tripod jack.
Asked December 5, 2023
Question:
Does this jack come with an air pump?
Answer:
No, this tripod jack is not equipped with an air pump. If you need a compatible jack with an air pump, please request part number 02A1032C0111.
Asked July 9, 2024
Question:
Is this jack compatible with the K-1001 Replacement Hand Pump Seal Kit?
Answer:
Yes, this 10-ton tripod jack is compatible with the Tronair K-1001 Replacement Hand Pump Seal Kit.
Asked September 20, 2024
