Tronair 02-7954-0000 Vertical Load Support Structure (CE)

Tronair 02-7954-0000
Manufacturer: Tronair
Part Number: 02-7954-0000
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Tripod 5 Ton Jack (Ce) - Nose - ATR 42/72
Multi-Head (Clamp Style), Boeing 737
12 Ton Axle Jack (Ce) - Cessna Sovereign 680 / Latitude
Towbar, Lockheed Custom
Citation & Excel Custom Towbar and Head (Ce)

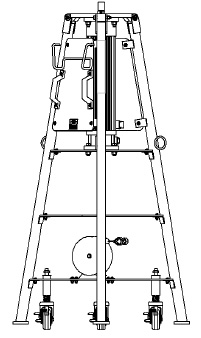

Structure provides support for vertically loaded electromechanical actuator. Shelves and panels provided for instrumentation and control components. Caster Springs will support 360 lbs (163 kg) with a 1 in (2.54 cm) foot pad clearance. Foot pads will contact ground with approximately 700 lbs (317.5 kg) of weight.

Specifications

  • Max Load Capacity: 4,175 lbs (1,894 kg)
  • Footprint Dimensions: Width- 34-3/16 in (86.8 cm), Depth- 30 in (76.2 cm)
  • Height: 60 in (152.4 cm)
  • Weight: 173 lbs (78.5 kg)
  • CE Rated
