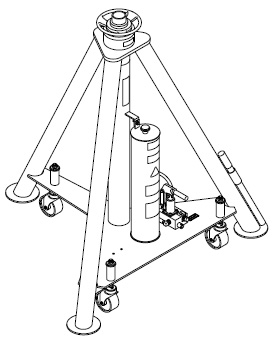

Tronair 02-7966C0100 – 12-Ton Tripod Jack

The Tronair 02-7966C0100 is designed to support a wide range of commercial, regional, and business aviation aircraft that require 12-ton tripod jack capacity during maintenance operations. Its heavy-duty hydraulic design makes it suitable for aircraft lifting procedures involving fuselage or wing jacking points. Operators should always verify compatibility, approved jacking locations, and required adapters using the aircraft maintenance manual before beginning any lift.

A single-stage tripod jack design provides smooth, controlled lifting with fewer moving hydraulic components than multi-stage systems. This simplified configuration can help reduce maintenance complexity while still delivering dependable lifting performance for routine aircraft servicing and inspections. Single-stage aircraft tripod jacks are often preferred for applications where consistent stability and straightforward operation are priorities.

The quick-rising center extension helps technicians position the jack closer to the aircraft jacking point before hydraulic lifting begins. This reduces the number of pump strokes needed during setup and can improve overall maintenance efficiency. Faster initial positioning is especially valuable during time-sensitive inspections, tire servicing, and landing gear maintenance procedures.

The ram lock nut provides a positive mechanical locking feature that helps prevent unintended lowering of the jack while the aircraft is elevated. As the aircraft is raised, technicians lower the lock nut to maintain continuous mechanical support in addition to hydraulic pressure. This added layer of protection is considered an important safety feature during aircraft jacking operations.

The heavy-duty wheel design allows maintenance personnel to reposition the tripod jack more easily around hangars and maintenance ramps. Improved mobility can reduce setup time and help technicians align the jack more precisely beneath approved aircraft lifting points. This is especially beneficial for larger maintenance facilities that routinely move aircraft jacks between bays or service locations.

The spherical radius cup jack pad helps create secure contact with approved aircraft jacking points while supporting proper load distribution during lifting. Proper pad alignment can help minimize side loading and reduce unnecessary stress on both the aircraft and the jack. This design also improves compatibility with a variety of aircraft jack point configurations commonly found in aviation maintenance environments.

The built-in pressure relief valve helps protect the aircraft tripod jack from overload conditions during lifting operations. By limiting hydraulic pressure beyond the rated setting, the system helps reduce the risk of component damage or unsafe lifting situations. Overload protection is a critical safety feature for aircraft ground support equipment operating under heavy loads.

MIL-PRF-5606 hydraulic fluid is widely used throughout the aviation industry because of its reliable low-temperature performance and compatibility with many aircraft maintenance systems. Using a recognized aviation-grade hydraulic fluid helps ensure dependable jack performance in both hangar and flight-line environments. Standardized hydraulic fluids also simplify maintenance and servicing procedures across mixed GSE fleets.

The Tronair Blue powder-coat finish helps protect the jack from corrosion, moisture exposure, and wear commonly encountered in aviation maintenance environments. A durable finish can help extend equipment life while maintaining a professional appearance in busy hangar and ramp operations. Protective coatings are especially important for aircraft tripod jacks used in outdoor or high-humidity conditions.

CE marking indicates that the 02-7966C0100 complies with applicable European machinery safety and quality standards. This certification supports use in international aviation maintenance operations and demonstrates that the equipment meets recognized safety requirements. For operators supporting global fleets, CE-certified aircraft jacks can help simplify regulatory compliance and standardize equipment.
