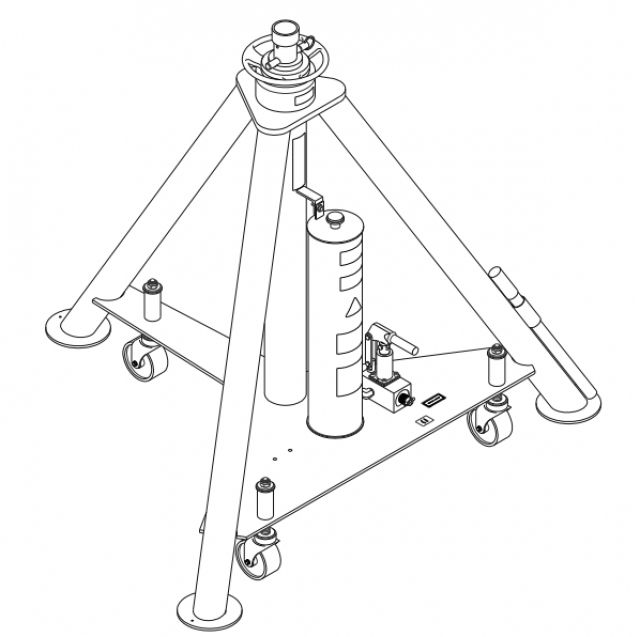

Tronair 02A7810C0111 – 12-Ton Tripod Jack, Air Pump

The Tronair 02A7810C0111 is designed with a 24,000-lb lifting capacity and a maximum height of 97”, making it well-suited for larger commercial, regional, and military aircraft maintenance applications. Its extended lifting range allows technicians to safely access elevated fuselage and wing jack points that smaller tripod jacks may not accommodate. The steel construction also provides the structural strength required for demanding maintenance environments. According to the Tronair operation and service manual, the jack includes both a 14” mechanical extension and 32” of hydraulic extension for increased versatility.

The ram protection ring is designed to help ensure proper locking pin placement during lifting operations and prevent unsafe jack configurations. Tronair specifically warns that improper pin placement can deform components and compromise the jack's certified lifting capacity. The manual also states that the jack should never be operated if the ram protection ring is damaged, deformed, or missing. This added safety feature helps reduce the risk of instability during aircraft maintenance procedures.

The quick-action mechanical extension allows technicians to raise the jack close to the aircraft jacking point before hydraulic lifting begins. This reduces the amount of pumping required and helps speed up aircraft positioning during maintenance operations. Faster setup can improve productivity in busy hangars, maintenance facilities, and military flight lines. The extended adjustment range also helps the jack adapt to multiple aircraft configurations.

The integrated air pump helps reduce manual effort by using shop air to assist with raising the jack under load. This feature can help technicians perform lifting operations more quickly while minimizing operator fatigue during repetitive maintenance tasks. Air-assisted lifting is especially useful when servicing larger aircraft that require frequent jacking procedures. The hydraulic schematic in the manual also shows how the pneumatic and manual pump systems work together to provide controlled lifting performance.

Aircraft manufacturers and maintenance procedures typically require all jacks to be raised and lowered simultaneously to keep the aircraft level during servicing. Uneven lifting can place excessive stress on the airframe and create unsafe working conditions for maintenance personnel. Tronair specifically instructs operators to maintain aircraft levelness throughout lifting and lowering operations. Using proper synchronized jacking procedures helps improve both aircraft protection and technician safety.

Routine maintenance helps preserve hydraulic performance, reduce corrosion, and protect seals from premature wear. Tronair recommends fully extending and retracting the jack every 90 days if it is not used regularly to keep seals lubricated and prevent rust buildup inside the cylinder. The manual also recommends applying water-repellent lubricants that are compatible with BUNA “N” O-rings to protect internal surfaces. Consistent maintenance can help improve long-term reliability and reduce unexpected downtime.

MIL-PRF-5606 hydraulic fluid is widely used in aviation ground support equipment because it delivers stable performance across a broad operating temperature range. This aviation-grade fluid helps protect hydraulic seals, pumps, and internal components while maintaining smooth lifting operation in varying climates. The Tronair manual also specifies compatibility with MIL-H-83282 hydraulic fluid for the HC-1961 hand pump assembly. Using approved hydraulic fluids helps maintain proper jack performance and reliability.

The mechanical ram lock nut serves as a secondary load-holding safety device that helps prevent unintended jack lowering while the aircraft is elevated. Operators must lower the lock nut as the aircraft is raised and ensure it is fully seated under load. This mechanical support helps reduce dependence on hydraulic pressure alone during maintenance operations. Proper use of the lock nut is an important part of safe aircraft jacking procedures.

The wide tripod footprint helps distribute load forces evenly and improve overall stability during aircraft lifting operations. This design helps reduce the risk of shifting or instability when servicing heavier aircraft platforms. Combined with the heavy-duty steel frame and swivel casters, the tripod configuration also improves maneuverability and positioning within hangars. Stable jack positioning is critical for safe maintenance, inspections, and tire or landing gear servicing.

Tronair specifies the use of OEM replacement parts to maintain the jack’s certified performance, lifting capability, and safety compliance. The manual states that unauthorized modifications or non-approved replacement components can void warranties and potentially compromise safe operation. OEM components are engineered to meet the original design tolerances and aviation safety standards established for the jack. Using approved replacement parts also helps maintenance facilities maintain compliance with industry best practices.
