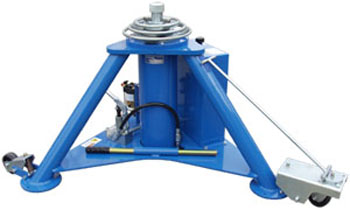

The Tronair 02A7845C0120 is a 10-Ton (20,000 lb) hydraulic aircraft tripod jack engineered to lift aircraft from the forward fuselage or main wing jacking points during maintenance, inspections, and ground operations. The three-stage hydraulic design provides controlled lift and positive lock at any extension height. A factory-installed air pump allows rapid initial extension without additional equipment. CE-marked for compliance with European aviation safety standards. OEM-specified for Bombardier CRJ700, CRJ705, CRJ900 and others. Also approved for Embraer Legacy 450, Legacy 500 and others.
Standard Features
- Factory-installed air pump for rapid initial extension and on-aircraft inflation
- Hand pump with built-in pressure relief valve
- Threaded rams with improved handwheel-style safety nut
- Quick-rising center extension for rapid initial lift
- Easy-access filler/breather cap
- Heavy-duty wheels for easy maneuverability
- Hydraulic fluid: MIL-PRF-5606
- ¾" (2 cm) spherical radius cup jack pad
- CE marked
- Durable powder-coat finish (Tronair Blue)
Technical Specifications
- Rated Capacity: 20,000 lbs (9072 kg)
- Operating Temperature: −4°F to 122°F (−20°C to 50°C)
- Air Supply Requirements:
- Minimum: 25 PSI (1.72 bar)
- Recommended: 40 PSI (2.75 bar)
- Maximum: 125 PSI (8.6 bar)
- Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
- Noise Level: 64 dB(A) at a distance of 120" (304.8 cm) at an inlet pressure of 100 PSI (6.9 bar)
- Hydraulic Fluid: MIL-PRF-5606
- Jack Pad: ¾" (2 cm) spherical radius cup
- Finish: Durable powder coat (Tronair Blue)
Safety Features
- Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the aircraft is being lifted. Ram lock nuts must be kept within 2" of the stop while raising the aircraft.
- Hold-to-Run Air Valve: Requires the operator to hold the air valve lever to raise the ram using the air pump. Releasing the air valve lever stops the upward movement of the ram.
- Lock Nut Retention Ring: Prevents the lock nut from being unscrewed from the second stage.
- Pressure Relief Valve: Prevents overload during raising operations.
Aircraft Applications
The 02A7845C0120 is OEM-approved for the following aircraft types:
- Bombardier: CRJ700, CRJ705, CRJ900, CRJ1000, Challenger 870 and 1 more
- Embraer: Legacy 450, Legacy 500, Praetor 600
This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
Need your Tronair 02A7845C0120 10-ton tripod jack serviced, repaired, or load tested?
Pilot John is an authorized Tronair distributor and factory-authorized Tronair service center. Every jack ships new from our warehouse with Certificates of Conformance (CofC) and FAA Form 8130-3 documentation available at no additional cost. Need jack service, load-testing, or repair? Pilot John handles that too as an OEM-trained GSE service center. For more information or to request service, see our Service Center page, and see our article on why jack load testing matters. Pilot John also operates an ISO-17025 calibration center for all of your tooling and equipment calibration needs — learn more here.
| Alternate Models | |
|---|---|
| 02A7845-0111 | Previous Model Number |
| 02A7845-0120 | Previous Model Number |
| General Information | |
|---|---|
| Part # | 02A7845C0120 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 02A7845C0120 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 640 lbs. |
| Shipping Dimensions | 54 x 65 x 39 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| 50866 | Lubricant, Haskel Seal (Ref. Haskel MLP-20/46D) |
| G-1100-105510 | Bolt, Hex Head, Grade 5, ¼ - 28 x 1 in long |
| G-1100-106512 | Bolt, Hex Head, Grade 5, 5/16 - 24 x 1 ¼ in long |
| G-1100-107010 | Bolt, Hex Head, Grade 5, 3/8 - 16 x 1 in long |
| G-1100-107510 | Bolt, Hex Head, Grade 5, 3/8 – 24 x 1 in long |
| G-1100-107532 | Bolt, Hex Head, Grade 5, 3/8 – 24 x 3 ¼ in long |
| G-1100-107540 | Bolt, Hex Head, Grade 5, 3/8 - 24 x 4 in long |
| G-1100-109532 | Bolt, Hex Head, Grade 5, ½ - 20 x 3 ¼ in long |
| G-1100-109560 | Bolt, HH, Grade 5, ½ – 20 x 6 in long |
| G-1154-107214 | Capscrew, Socket Button head, 3/8 – 16 x 1 ½ in long |
| G-1202-1055 | Stopnut, ¼ – 28 Elastic |
| G-1202-1065 | Stopnut, 5/16 – 24 Elastic |
| G-1202-1075 | Stopnut, 3/8 – 24 Elastic |
| G-1203-1075 | Jamnut, 3/8 - 24 Elastic |
| G-1203-1095 | Jamnut, ½ - 20 Elastic |
| G-1250-1050N | Flatwasher, ¼ Narrow |
| G-1250-1060N | Flatwasher, 5/16 Narrow |
| G-1250-1070N | Flatwasher, 3/8 Narrow |
| G-1251-1070R | Lockwasher, 3/8 Regular |
| G-1300-25200 | Pin, Roll, ¼ in diameter x 2 in long |
| G-1318-1033 | Pin, Model “D”, 5/8 in diameter x 3.3 in long |
| G-1397-262 | Ring, Retaining |
| G-1397-393 | Ring, Retaining |
| H-1009-01 | Assembly, handle (Pump) |
| H-1045 | Breather |
| H-1173 | Valve, Plug |
| H-1174 | Pump, Air |
| H-1536-19 | Caplug, Tapered |
| H-2327 | Locknut, 10 Ton Stop |
| H-2330 | Locknut, 10 Ton Stop |
| H-2332 | Locknut, 12 Ton Stop |
| H-3032 | Spring |
| H-3398-07 | Spring |
| HC-1961 | Pump, Hand |
| HC-2000-334 | O-ring, Third Stage |
| HC-2000-346 | O-ring, Second Stage |
| HC-2000-359 | O-ring, First Stage |
| HC-2020-334 | Backup Ring, Third Stage |
| HC-2020-346 | Backup Ring, Second Stage |
| HC-2020-359 | Backup Ring, First Stage |
| HJ-557 | Pad, Jack |
| J-3415-01 | Bracket, Air Pump |
| K-1685 | Kit, Repair Fluid Seal (Ref. Haskel MLP-20/46D) |
| K-1686 | Kit, Repair Air Seal (Ref. Haskel MLP-20/46D) |
| K-3073 | Kit, Rear Wheel |
| K-3076 | Kit, Reservoir |
| K-3077 | Kit, Air Pump |
| K-3078 | Kit, Handle |
| K-3333 | Assembly, Blowgun |
| K-4156 | Kit, Front Wheel |
| K-4219 | Kit, Ram Seal |
| K-4842 | Kit, Weldment Tube |
| N-2001-08-S-B | Elbow, 90° Male, SAE #6 x 3/8 in OD – JIC 37° |
| N-2005-08-S | Elbow, 90° Male, 3/8 in OD – JIC 37° x ¼ NPT |
| N-2209-03-B | Tee, Street, ¼ NPT |
| N-2410-05 | Elbow, 90° Male, 3/8 in Hose x 3/8 NPT |
| N-2412-10 | Connector, Straight Male, 3/8 in ID Hose x ¼ NPT |
| N-2789-04-S-B | Connector, Straight Male, 3/8 in ID Hose x SAE #6 |
| R-1341-02 | Shaft, Extension |
| T378-03*001.00 | Tube, SS ½ ID |
| TF-1043-03*16.0 | Assembly Hose, 16 in long |
| TF-1043-06*22.5 | Assembly, Hose 22 ½ in long |
| TF-1047-04*07.0 | Hose, 3/8 in Push-on x 7 in long |
| TF-1047-04*10.0 | Hose, 3/8 in Push-on x 10 in long |
| TR-1978 | Tube, Stop |
| TR-1980 | Tube, Stop |
| TR-1994 | Ring, Ram Protection |
| TR-2009 | Ram, First Stage |
| V-1019 | Label, Maximum Capacity |
| V-1779 | Label, Serial Number CE |
| V-1805 | Label, ISO General Danger |
| V-2105 | Label, Jacking Instructions |
| Z-2301-02 | Weldment, Handle |
| Z-2302 | Weldment, Pivot |
| Z-2322 | Assembly, Rear Wheel |
| Z-4184-01 | Weldment, Tripod |
| Z-4197-01 | Weldment, Reservoir (includes labels) |
| Z-6587 | Assembly, Front Wheel |
| Z-6588 | Weldment, Pivot |
| Z-6689 | Assembly, Ram |
| Z-6692 | Ram, Second Stage |
| Z-6694 | Ram, Third Stage |
| Z-6704-01 | Weldment, Tube/Base |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
Challenger 870
NOTE
This jack is used on the aircraft's nose landing gear. Control all 3 jacks with air pumps using the optional Manifold Kit (K-1106).
,
Challenger 890
NOTE
This jack is used on the aircraft's nose landing gear. Control all 3 jacks with air pumps using the optional Manifold Kit (K-1106).
,
CRJ1000
NOTE
Main landing gear jack: Two main jacks are required per aircraft. Control all 3 jacks with air pumps using the optional Manifold Kit (K-1106).
,
CRJ700
NOTE
This jack is used on the aircraft's nose landing gear. Control all 3 jacks with air pumps using the optional Manifold Kit (K-1106).
,
,
|
| Embraer |
Legacy 450
NOTE
Main/nose landing gear jack: 2 main and 1 nose jack required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
,
Legacy 500
NOTE
Main/nose landing gear jack: 1 nose and 2 main jacks required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
,
Praetor 600
NOTE
Main/nose landing gear jack: 1 nose and 2 main jacks are required per aircraft. Control all 3 jacks with air pumps using the Manifold Kit (K-1106).
|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The Tronair 02A7845C0120 is a 10-ton, three-stage aircraft tripod jack designed to safely lift aircraft by the fuselage or main wing for inspection, maintenance, or repairs. It uses a combination of manual and pneumatic pumps to raise aircraft smoothly and securely. The jack must always be used in conjunction with the proper aircraft jack pads and lifting points specified by the aircraft manufacturer.
Before each operation, inspect the jack for any visible damage, loose fittings, or leaks. Ensure hydraulic rams are fully retracted, verify that all nuts and bolts are tightened, and check that the hydraulic fluid level is within 1/2" of the reservoir vent. Refill as needed using MIL-PRF-5606 hydraulic fluid.
The air pump requires a clean, dry air source with a supply pressure between 90 and 100 PSI (6.21 to 6.89 bar). Before connecting, ensure the shop air needle valve is closed, then open it gradually during operation. Overpressurization beyond 125 PSI should be avoided to maintain system integrity.
Tronair recommends annual load testing of all tripod jacks to ensure safe operation. During testing, always jack against a load – not the jack itself – and do not exceed 105% to 110% of the rated capacity. Following Tronair’s function load test guidelines helps verify hydraulic integrity and mechanical stability.
Maintenance should be performed in a clean, debris-free workspace using proper tools and good workmanship practices. Regularly inspect O-rings, backup rings, and locknuts for wear or damage, and replace them as needed. Hydraulic surfaces should be treated with a rust-preventive oil that is compatible with Buna-N seals when the jack is not in use.
Store the jack with the ram fully retracted in a clean, dry environment between -4°F and 122°F (-20°C to 50°C). For outdoor conditions, cover the jack completely with a waterproof tarp or canvas. This prevents corrosion and contamination of hydraulic seals and metal components.
The jack can be moved manually on its built-in casters or lifted with a crane using straps through the tripod’s top section. For shipping or relocation, it may also be handled with a forklift placed under the lower tripod support. Always secure the jack with appropriate strapping to prevent movement during transit.
Tronair warrants its products against manufacturing and material defects for one year from the date of shipment, covering the repair or replacement of defective components. Replacement parts are covered by a 90-day warranty from the date of shipment. Normal wear items, or parts altered without authorization, are not covered under warranty.
Always secure the load using the ram locknut before working under an aircraft, and never place hands near the ram threads during lowering. The jack should be used only on a hard, level surface, and all jacks supporting the aircraft must be raised and lowered simultaneously. Failure to follow proper safety procedures may result in injury or damage to equipment.
