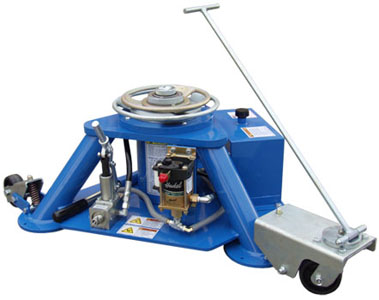

Tronair 02A7849C0120 – 10-Ton Tripod Jack, Air Pump

The Tronair 02A7849C0120 is a 10-Ton (20,000 lb) hydraulic aircraft tripod jack engineered to lift aircraft from the forward fuselage or main wing jacking points during maintenance, inspections, and ground operations. The three-stage hydraulic design provides controlled lift and positive lock at any extension height. A factory-installed air pump allows rapid initial extension without additional equipment. CE-marked for compliance with European aviation safety standards. OEM-specified for Sikorsky UH-60 Black Hawk, MH-60S Seahawk, MH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i.

Standard Features

• Factory-installed air pump for rapid initial extension and on-aircraft inflation
• Hand pump with built-in pressure relief valve
• Threaded rams with improved handwheel-style safety nut
• Quick-rising center extension for rapid initial lift
• Easy-access filler/breather cap
• Heavy-duty wheels for easy maneuverability
• Hydraulic fluid: MIL-PRF-5606
• ¾" (2 cm) spherical radius cup jack pad
• CE marked
• Durable powder-coat finish (Tronair Blue)

Technical Specifications

• Rated Capacity: 20,000 lbs (9072 kg)
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)
• Air Supply Requirements:
  • Minimum: 25 PSI (1.72 bar)
  • Recommended: 40 PSI (2.75 bar)
  • Maximum: 125 PSI (8.6 bar)
• Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
• Noise Level: 64 dB(A) at a distance of 120" (304.8 cm) at an inlet pressure of 100 PSI (6.9 bar)
• Hydraulic Fluid: MIL-PRF-5606
• Jack Pad: ¾" (2 cm) spherical radius cup
• Finish: Durable powder coat (Tronair Blue)

Safety Features

• Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the aircraft is being lifted. Ram lock nuts must be kept within 2" of the stop while raising the aircraft.
• Hold-to-Run Air Valve: Requires the operator to hold the air valve lever to raise the ram using the air pump. Releasing the air valve lever stops the upward movement of the ram.
• Lock Nut Retention Ring: Prevents the lock nut from being unscrewed from the second stage.
• Pressure Relief Valve: Prevents overload during raising operations.

Aircraft Applications

The 02A7849C0120 is OEM-approved for the following aircraft types:

• Sikorsky: UH-60 Black Hawk, MH-60S Seahawk, MH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i

This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
