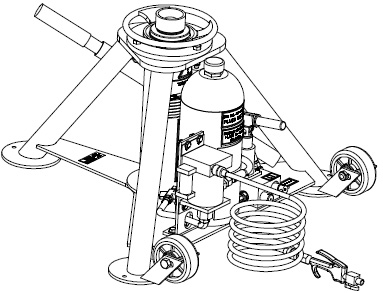

Tronair 02A7934C0100 – 7-Ton Tripod Jack

The two-stage hydraulic ram design allows the Tronair 02A7934C0100 aircraft tripod jack to achieve substantial lifting height while maintaining a compact footprint when fully retracted. This design helps technicians position the jack more easily beneath aircraft with lower ground clearance before extending to the required lifting height. The staged extension process also helps provide smoother load distribution during aircraft lifting procedures. Tronair specifies that the larger ram stage fully extends before the second stage begins to rise, helping maintain controlled operation.

All aircraft jacks should be raised and lowered simultaneously to help keep the aircraft level throughout maintenance operations. Maintaining proper aircraft balance reduces uneven stress on the airframe and helps improve overall lifting stability. This is especially important when servicing large helicopters and military aircraft such as the Eurocopter AS332 Super Puma or H225M. Following proper synchronized lifting procedures also helps technicians comply with OEM maintenance practices.

The ram locknut is a mechanical safety device that prevents unintended lowering of the hydraulic ram while the aircraft is elevated. Tronair instructs operators to keep the locknut within 1” of the extending ram during lifting operations for maximum protection. This added mechanical support helps safeguard technicians and aircraft in the event of hydraulic pressure loss. The manual repeatedly identifies proper locknut usage as a critical aircraft maintenance safety requirement.

The integrated wheels allow technicians to reposition the 7-ton aircraft jack more efficiently around the hangar floor without requiring additional transport equipment. This mobility can help speed up aircraft maintenance preparation and reduce physical strain when moving the jack between service locations. Tronair also offers an optional spring-loaded wheel kit to further improve movement and handling characteristics. Easy maneuverability is particularly beneficial in crowded maintenance facilities where space is limited.

The Tronair 02A7934C0100 is designed with serviceable hydraulic components and replaceable seal kits to help extend operational life. The maintenance manual outlines scheduled inspections, fluid checks, lubrication intervals, and annual capacity testing requirements to support reliable performance. Tronair also recommends fully extending and retracting the ram every 90 days during low-use periods to help protect seals and prevent internal corrosion. These maintenance practices help reduce downtime and preserve lifting performance over time.

OEM-approved aircraft tripod jacks are specifically validated for compatibility with designated aircraft lifting points and weight requirements. The Tronair 02A7934C0100 is approved for several Eurocopter and Airbus helicopter platforms, including the AS330 Puma, AS332 Super Puma, AS532 Cougar, H225M, and H175. Using OEM-approved ground support equipment helps maintenance teams follow manufacturer-approved procedures and maintain operational safety standards. It also provides added confidence during critical inspection and servicing operations.

The jack is designed to operate from -4°F to 122°F (-20°C to 50°C), making it suitable for a wide range of aviation maintenance environments. Tronair also states that the jack can be stored outdoors when protected with a full waterproof tarp or canvas cover. The recommended MIL-PRF-5606 hydraulic fluid supports reliable hydraulic system operation across varying environmental conditions. These capabilities help maintenance crews operate the jack in both hangar and field-service applications.

The built-in pressure relief valve is designed to help prevent hydraulic overload conditions during lifting operations. By limiting excessive hydraulic pressure, the system helps protect both the aircraft structure and the jack's internal hydraulic components from damage. Tronair also notes that the relief valve is factory-set and should be replaced as a complete assembly. This safety feature supports more controlled and dependable aircraft lifting performance.

Tronair recommends annual capacity testing at 105% to 110% of the jack’s rated lifting capacity to help verify safe operating performance. Routine load testing can help identify hydraulic leaks, worn seals, or pressure inconsistencies before they affect maintenance operations. Preventative testing is an important part of maintaining compliance with aviation ground support equipment safety practices. Regular inspections also help extend the service life of the aircraft tripod jack.

With a minimum closed height of 17¾”, the Tronair 02A7934C0100 can fit beneath aircraft with relatively low jacking point clearances. This compact profile makes it easier for technicians to position the aircraft jack during maintenance setup procedures. Once positioned, the combination of mechanical and hydraulic extension provides a substantial lifting range for various aircraft servicing tasks. The low-profile design also improves storage and transport convenience within maintenance facilities.
