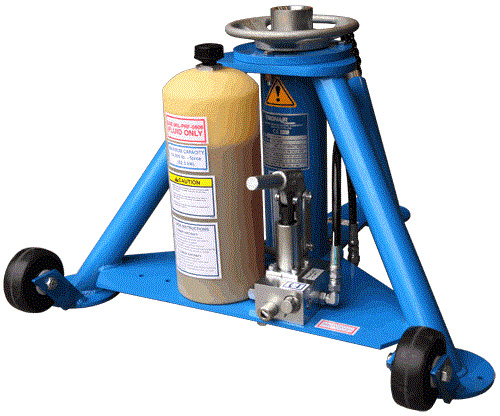

Tronair 02-7934C0100 – 7-Ton Tripod Jack

A tripod jack design provides excellent stability during helicopter lifting operations by distributing weight across three wide support legs. This helps reduce movement while maintenance technicians perform inspections, tire servicing, or landing gear work. The design is especially useful for helicopters because maintaining aircraft balance during jacking is critical. The wide tripod stance also improves confidence when working on uneven hangar or ramp surfaces.

The two-stage hydraulic ram allows the Tronair 02-7934C0100 to achieve substantial lifting height while maintaining a relatively compact closed profile. The larger ram stage extends first, followed by the smaller stage, providing a stable, controlled lifting progression. This staged extension system improves load distribution and operational smoothness during aircraft maintenance procedures. It also allows technicians to reach higher jacking points commonly found on helicopters.

Ram locknuts serve as a critical mechanical safety feature by physically supporting the load after the aircraft has been raised. Unlike hydraulic pressure alone, the locknuts provide a positive mechanical restraint that helps prevent unintended lowering. Operators should keep the locknuts within 1” of the extending ram during lifting procedures. This added protection is especially important during extended helicopter maintenance tasks where technicians may be working around or beneath the aircraft.

The integrated pressure relief valve helps prevent the hydraulic system from exceeding its designed operating pressure during lifting operations. If excessive pressure builds inside the jack, the valve automatically releases excess hydraulic pressure to help prevent overload. This helps protect both the aircraft structure and the jack's internal hydraulic components. Overload protection is a key safety requirement for aviation ground support equipment used in aircraft jacking applications.

Routine maintenance includes checking hydraulic fluid levels before each use, lubricating casters every three months, and performing annual capacity testing at 105% to 110% of rated load. Tronair also recommends fully extending and retracting the ram every 90 days during low-use periods to exercise the seals and prevent internal corrosion. Keeping the ram threads clean and protected with a water-repellent lubricant can further extend component life. Proper maintenance helps ensure reliable lifting performance and long-term durability.

MIL-PRF-5606 hydraulic fluid is widely used throughout the aviation industry because it provides consistent viscosity and hydraulic performance across a wide range of operating temperatures. The fluid is compatible with many aircraft maintenance hydraulic systems and helps protect seals and internal components from premature wear. Tronair specifies this aviation-approved fluid for the 02-7934C0100 to support reliable operation and simplified servicing. Using approved hydraulic fluid also helps maintain proper jack performance and safety compliance.

The jack is designed to operate between -4°F and 122°F (-20°C to 50°C), making it suitable for a wide range of hangar and flight line environments. This broad temperature capability allows maintenance crews to use the jack in both cold-weather and high-heat operating conditions. Reliable hydraulic performance across varying climates is especially important for operators supporting helicopters in diverse geographic locations. Consistent operation also helps minimize maintenance delays caused by equipment limitations.

Despite its heavy-duty lifting capability, the jack incorporates caster wheels that allow technicians to roll it into position by hand. Tronair also states that the jack can be safely transported using a crane and strap or moved with a forklift under the lower tripod support. These transport features improve maneuverability within hangars and maintenance facilities. Easier positioning can help reduce setup time during aircraft jacking operations.

Yes. PJi offers multiple OEM replacement kits for the Tronair 02-7934C0100 jack, including ram seal kits, hand pump seal kits, pneumatic pump seal kits, and replacement hydraulic pump components. Access to factory-approved replacement parts helps operators maintain the jack to original performance specifications. Using OEM parts can also help reduce downtime and support long-term equipment reliability.
