Tronair 01-0577-0020 – Towbar Head Attachment for Select Eurocopter Helicopters (CE)
In Stock
Ready to ship tomorrow if you order in the next 19 hours and 5 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

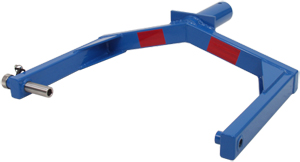

The Tronair 01-0577-0020 Towbar Head Attachment is specifically designed for use with Tronair's multi-head towbars (models 01-1201-0010, 01-1202-0000, 01-1215-0000, 01-1216-0000, and 01-1290-0100) for towing select Eurocopter helicopters.
The towbar head attachment uses a sliding pin/stationary pin arrangement to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- Shear protection – both radial and/or compression/tension – built in to protect the nose gear, as required
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 20,500 lbs. (9.2 metric tons)
- Length: 28.25" (71.8 cm) – from centerline to centerline
- Width: 29.6" (75.2 cm)
- Height: 7.4" (18.7 cm)
- Weight: 37 lbs. (16.8 kg)
| General Information | |
|---|---|
| Part # | 01-0577-0020 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 130 lbs. |
| Shipping Dimensions | 48 x 40 x 24 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
Customers also viewed
Towbar Head Attachment for Select Embraer Aircraft
Towbar Head Attachment for CL-215, CL-215T, & CL-415 Aircraft
Head, Mi-8 (Ce)
Towbar Head Attachment for Select Bombardier (Regional) Aircraft
Towbar Head Attachment for Eurocopter HH-65A Dolphin Helicopter
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Eurocopter | AS330 Puma , AS332 Super Puma , AS532 Cougar , H225M (EC725 Super Cougar) |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
