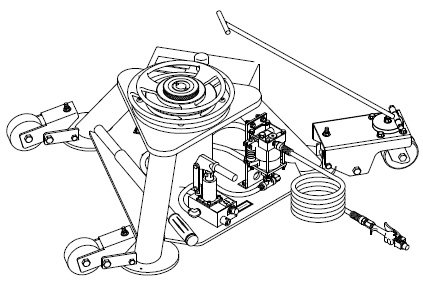

Tronair 02A7950C0100 – 10-Ton Tripod Jack, Air Pump

The three-stage hydraulic design enables the Tronair 02A7950C0100 to achieve a wide lifting range while maintaining stable, controlled extension throughout the jacking process. The hydraulic rams extend sequentially from the largest-diameter stage to the smallest, helping distribute the load safely and evenly during lifting operations. This staged extension design also helps technicians position the jack more precisely under aircraft jacking points. The controlled lifting motion is especially beneficial during inspections, landing gear servicing, and fuselage maintenance tasks.

With a minimum closed height of just over 14”, this aircraft tripod jack can fit beneath aircraft with lower fuselage or wing jacking point clearances. The compact profile enhances versatility for regional jets, business aircraft, and other aircraft that require lower roll-under access. Technicians can also maneuver the jack more easily in confined maintenance areas or crowded hangar environments. This low-profile configuration helps reduce setup time during routine maintenance procedures.

The jack’s multi-stage ram assembly combines mechanical extension with hydraulic extension to provide a larger overall lifting range without significantly increasing the jack’s footprint. The larger hydraulic stages fully extend before smaller stages engage, supporting stable lifting performance throughout operation. This design helps minimize unnecessary pumping while improving lifting speed and control. The result is a more efficient aircraft jacking process for maintenance crews.

The integrated CE-compliant hand pump includes a check valve designed to help prevent unintended aircraft descent if the relief valve fails. This additional hydraulic safeguard improves operational safety during aircraft maintenance and lifting operations. Combined with the ram locknut system, the check valve helps provide multiple layers of protection while the aircraft is elevated. These redundant safety measures are especially important when working beneath aircraft structures or landing gear assemblies.

The Tronair 02A7950C0100 is equipped with heavy-duty wheels that allow technicians to hand-roll the jack between workstations and aircraft positions. Despite its 284-lb operating weight, the tripod configuration and wheel arrangement improve maneuverability inside hangars and maintenance ramps. The manual also outlines lifting and transport options using forklifts or cranes for repositioning in larger maintenance environments. These mobility features help streamline aircraft ground support operations.

Operators should lower the hydraulic stages in a controlled sequence, beginning with the smallest ram stage first. Proper staging helps maintain aircraft stability and reduces the risk of uneven load transfer during descent. Controlled lowering procedures also help minimize stress on aircraft jacking points and hydraulic components. Following the recommended lowering sequence supports safer and more predictable maintenance operations.

Routine preventative maintenance helps protect hydraulic seals, internal cylinders, and moving components from wear and contamination. Tronair recommends periodic lubrication of wheels, annual load testing, hydraulic fluid inspections, and exercising the jack every 90 days during low-use periods. Regularly extending and retracting the jack helps prevent rust buildup and keeps internal seals properly conditioned. Consistent maintenance can improve long-term reliability and reduce unexpected downtime in aviation maintenance operations.

The integrated pneumatic pump allows technicians to raise the jack more quickly during initial extension compared to manual pumping alone. The air system operates on shop air at 90 to 100 PSI, improving lifting efficiency during routine aircraft servicing. The hold-to-run valve design also gives operators immediate control over ram movement during air-powered operation. This combination of speed and control helps improve productivity in busy maintenance environments.

Tronair recommends operating the jack in clean, dry environments and protecting the ram seals from dirt or contaminants during washing operations. Foreign material entering the ram or cylinder area can damage seals, leading to hydraulic leakage or reduced lifting performance. The manual specifically advises covering the top of the jack during aircraft washing procedures to protect sensitive hydraulic components. Proper environmental protection helps preserve jack reliability and safety during maintenance.

The Tronair 02A7950C0100 is CE marked and complies with the European Machinery Directive 2006/42/EC for machinery safety requirements. The manual also references compliance with EN ISO 12100 standards for machinery risk assessment and risk reduction. These certifications demonstrate that the aircraft tripod jack was evaluated for safe operation, operator protection, and mechanical reliability. For international aviation maintenance facilities, CE compliance can help support regulatory and workplace safety requirements.
