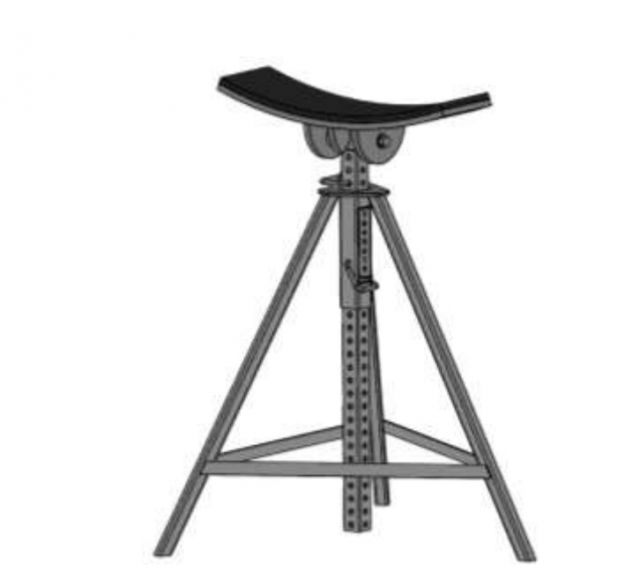

The Tronair 03-5851-0000 is a HondaJet aircraft tail stand used to stabilize a plane by its fuselage during maintenance, whose maximum load does not exceed the rated capacity of the tail stand. This unit is specifically intended for use on HondaJet HA-420 aircraft.
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Quick-action mechanical extension
- Wide range of interface adapters
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Rated Capacity: 1,500 lbs. (680 kg)
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Minimum Closed Height: 34.63" (88 cm)
- Maximum Height Obtainable: 55" (139.7 cm)
- Footprint: 32.31" (82 cm) diameter
- Weight: 30 lbs. (13.6 kg)
| General Information | |
|---|---|
| Part # | 03-5851-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03-5851-0000 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 130 lbs. |
| Shipping Dimensions | 41 x 40 x 43 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-109060 | Bolt, Hex Head Grade 5, ½ - 13 x 6 Long |
| G-1202-1090 | Stopnut, ½ - 13 Elastic |
| G-1311-01 | Pin, Leg Hook |
| G-150-1090N | Flatwasher, ½ Narrow |
| H-1611-60-21.0 | Pad, Neoprene |
| TS-2615-01 | Tube, Adjusting |
| V-1001 | Label, Made In USA |
| V-1003 | Label, Serial Number |
| V-1198 | Label, Tronair (Not Shown) |
| Z-8953 | Weldment, Saddle |
| Z-8955 | Weldment, Swivel |
| Z-8956-01 | Weldment, Tripod |
Customers also viewed
with Extended 4' x 11' Platform
Tail Stand for C-295 & CN-235/HC-144A Aircraft, 1,000-lb. Capacity
Engine Compressor Washer, 12-Gallon Capacity
Prop Stand - King Air / Beechcraft C-12
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| HondaJet | HA-420 HondaJet |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
