Tronair 03A5853-0000 Tail Stand with Alarm for Cessna Citation Longitude 700 Aircraft
In Stock
Ready to ship tomorrow if you order in the next 14 hours and 51 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

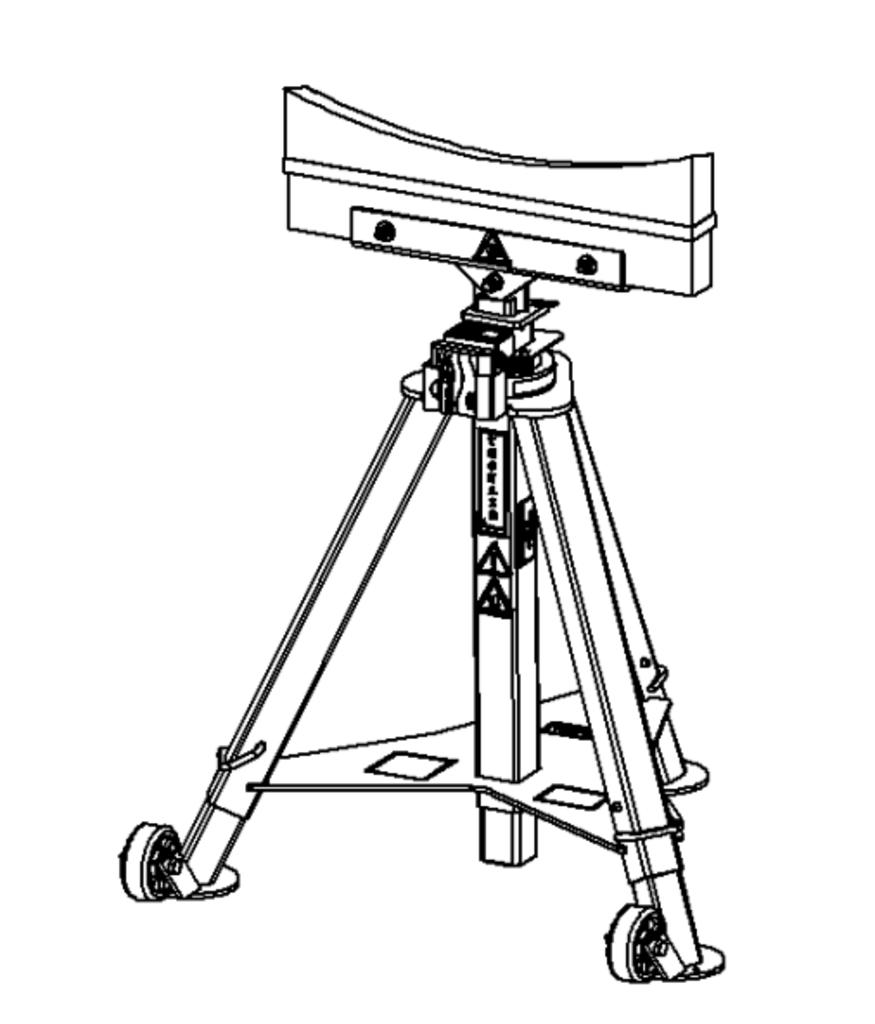

The Tronair 03A5853-0000 is an aircraft tail stand used to support an airplane by its fuselage during maintenance, with a maximum load that does not exceed the rated capacity of the tail stand. This unit is specifically designed for use on the Cessna Citation Longitude 700 aircraft.
This tail stand is outfitted with an alarm system that alerts the operator when a force of 100 to 150 lbs (45.4 to 68 kg) is being applied to the top of the cradle. The unit attached to the tail stand sounds a loud 85 dB pulsating alarm until the force is reduced.
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Dual casters for easy maneuverability
- Quick-action mechanical extension
- Wide range of interface adapters
- Durable powder-coat finish (Tronair Blue)
Specifications
- Temperature Range: 40°F to 100°F (4°C to 38°C)
- Minimum Closed Height: 42" (106.7 cm)
- Maximum Height Obtainable: 81" (205.7 cm)
- Weight: 118 lbs (53.5 kg)
- Alarm (Battery-Powered): 9V DC
- Alarm Horn: 85 dB
| General Information | |
|---|---|
| Part # | 03A5853-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03A5853-0000 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 315 lbs. |
| Shipping Dimensions | 35 x 37 x 48 in. |
| Freight NMFC | 178160 |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| EC-1787 | JOINT, WIRE |
| EC-1796 | SWITCH, LIMIT |
| EC-1854 | BATTERY, 9 VOLT (NOT SHOWN) |
| EC1179-01- | TERMINAL, FORKED TONGUE |
| G-1163-10 | SCREW, 1/4-20 X 1.0 CUP PT SET |
| G-1493 | PIN, 3/8 X 3.0 LG |
| G1100-107536- | BOLT, 3/8-24 X 3-3/4" HEX HD GR 5 |
| G1100-109522- | BOLT, 1/2-20 X 2-1/4" HEX HD GR 5 |
| G1100-109526- | BOLT, 1/2-20 X 2-3/4" HEX HD GR 5 |
| G1155-105210- | SCREW, 5/16 DIA. X 1.0" LG SOCKET HD SHOULDER |
| G1159-103503- | SCREW, #10-32 X 3/8" LG. RD HEAD CROSS RECESS MACHINE |
| G1159-103506- | SCREW, #10-32 X 3/4" LG. RD HEAD CROSS RECESS MACHINE |
| G1202-1075- | STOPNUT, 3/8-24 ELASTIC |
| G1202-1095- | STOPNUT, 1/2-20 ELASTIC |
| G1203-1095- | JAMNUT, 1/2-20 ELASTIC |
| G1250-1030N- | FLATWASHER. #10 NARROW |
| G1250-1060W- | FLATWASHER. 5/16 WIDE |
| G1250-1070W- | FLATWASHER, 3/8 WIDE |
| G1307-0830- | PIN, AEROFAST MODEL C |
| G1311-02- | PIN, LEG LOCK |
| H-1901-01 | GROMMET |
| H-2762 | SPRING, LIGHT DUTY DIE |
| H-5136 | ALARM |
| H1026-07.0- | ASSEMBLY, LANYARD |
| S-1923-01 | COVER, SWITCH |
| TR-1883 | BASE |
| U-1002 | WHEEL |
| V-1198 | LABEL, TRONAIR |
| V-1779 | LABEL, SERIAL CE NON-ELECT |
| V-1996 | LABEL, TAILSTAND CAUTION |
| V-1997 | LABEL, TAILSTAND INSTRUCT |
| V-1998 | LABEL, MAX CAPACITY-1K |
| V-1999 | LABEL, ISO HAND CRUSH |
| V-2000 | LABEL, ISO FOOT CRUSH |
| V-2065 | LABEL, TRONAIR |
| Z-5723 | ASSEMBLY, CRADLE |
| Z-5962-01 | WELDMENT, OUTER TUBE |
| Z-6079 | WELDMENT, CRADLE SUPPORT |
| Z-9515-00 | WELDMENT, TAILSTAND (P) |
| Z-9516-00 | WELDMENT, LOWER LEG (P) |
| Z-9524-00 | WELDMENT, FIRST EXTENSION (P) |
| Z-9530-00 | WELDMENT, R/S LEG (P) |
| Z-9531-00 | WELDMENT, L/S LEG (P) |
| Z-9534-00 | WELDMENT, 2ND EXTENSION TUBE (P) |
Customers also viewed
32" to 75", CE-Marked – Select Cessna/ATR Aircraft
28" to 72", CE-Marked, Main Landing Gear – Select Cessna Aircraft
22" to 46", CE-Marked
32" to 60", CE-Marked
4" to 11", CE-Marked – Select Cessna
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Citation Longitude 700 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
