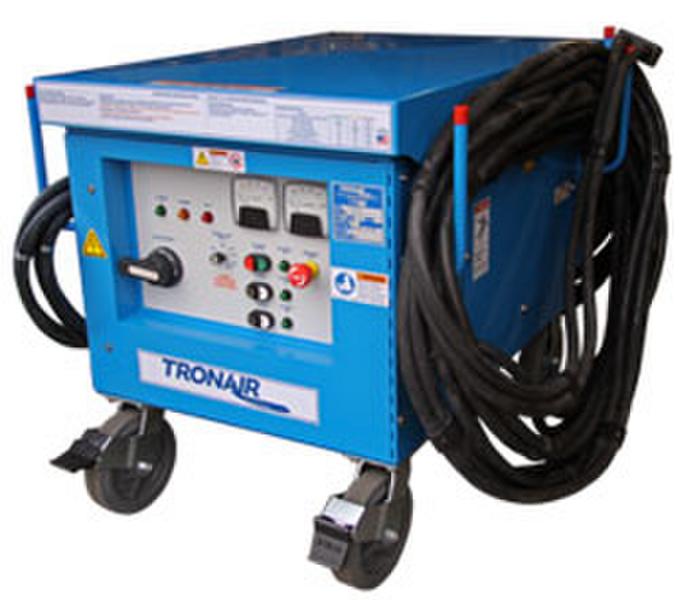

Tronair 112860D0200 – Dual-Output 28V DC Aircraft Rectifier/Ground Power Unit (GPU) (CE) - 60 HZ
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Tronair 1128262E0CK (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 112860D0200 is a 28V DC aircraft rectifier/ground power unit that provides DC ground power to the aircraft while in the hangar or on the ramp. Operating on a 3-phase input voltage (60 Hz), this model is a dual-output unit with two aircraft connector cables. (50 Hz models are also available.)
Options Available
Please request any options at the time of quote.
- Available with either a 100-ft., 50-ft., or no input cable depending on your specific needs
Standard Features
- Under 52 dB during normal operation, 60 dB maximum
- Clean-power, low-voltage ripple <.2 VDC RMS
- 15A, 115V AC, duplex GFIC weatherproof receptacle with cover
- MIL-STD-704F and 18" NEC compliant
- Energy-saving, thermal-control cooling fan
- Low-profile design fits under most wings
- Sturdy, all-weather IP54 enclosure with cord hangers
- Long-life LED indicator lights double as a diagnostic tool
- Main disconnect switch
- DC On/Off switch
- Emergency stop switch
- Large 9" (23 cm) rubber rigid and lockable swivel casters for easy maneuverability
- Adjustable current-limit output
- Simple to use
- Easy-to-change multi-volt transformer
- CE marked
- Durable powder-coat finish (Tronair Blue)
- Two-year Tronair Platinum warranty
Cable Lengths
- 20-ft. (6.1 m) and 50-ft. (15.24 m) output cables with AN2551 aircraft DC connectors (NOTE: 50-ft. cable NOT used for starting engines)
- 50-ft. (12.2 m) input cable [100-ft. (30.5 m) input cable optional – electric plug not included on the input cable
Input
- Voltage Range: 208V to 415V +/- 10%+/- 10%
- Power: 25 kVA
- Phase: 3-Phase
- Frequency: 60 Hz
Output
- Voltage: 28.5V DC
- Current Limit (Adjustable): 100 to 2,000 max. amps DC
- Continuous Power: 600 amps at 28.5V DC
- Starting Power: 2,000 amps
Protection
- Output over/undervoltage
- Output overcurrent
- Input phase loss detection, missing phase
- Input over/under voltage
- Input circuit breaker – 100 amps
- Transformer over-temperature
- SCR over temperature
Thermal Protection
- Temperature-controlled, variable-speed cooling fan
Specifications
- Input: 60 Hz
- Input Cable: 50 ft. (15.2 m)
- Input Voltage: 208V to 415V
- Output Cable: Dual
- Dimensions: 33" H x 42" L x 33" W (84 x 107 x 84 cm)
- Weight: 750 lbs. (340 kg)
| General Information | |
|---|---|
| Part # | 112860D0200 |
| Manufacturer | Tronair |
| NSN | 6130015897152 |
| Manual 1 | View 112860D0200 User Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 975 lbs. |
| Shipping Dimensions | 57 x 42 x 38 in. |
| Freight NMFC | 61700 |
| Schedule B | 8504404000 |
| ECCN | EAR99 |
