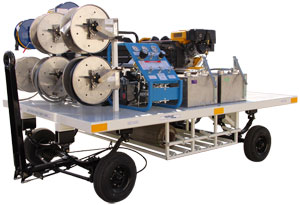

Tronair 12-3117-9000 – Multi-Purpose Towable Cart (CE)

The Tronair 12-3117-9000 Multi-Purpose Towable Cart can be used to service a variety of aircraft systems, including electrical, air, nitrogen, hydraulic fluid, and engine oil. The cart is equipped with an air compressor, high-pressure and low-pressure nitrogen systems, and hydraulic fluid and engine oil servicing systems.

Standard Features

• Nitrogen booster
• Retractable hose reels:
  • 60 ft. (18.3 m) for L-1009 Oil
  • 60 ft. (18.3 m) for Phosphate Ester, Type IV
  • 60 ft. (18.3 m) for Air Compressor
  • 60 ft. (18.3 m) for High-Pressure Nitrogen
  • 60 ft. (18.3 m) for Low-Pressure Nitrogen
• Two 100-ft. (30.5 m) extension cords for generators
• Large filtered fill port
• Micron filter after-pump
• Sturdy welded steel construction
• Rugged cart has running gear brakes and a trailer hitch
• Front wheels lock with the towbar in the upright position
• Maximum towing speed: 10 mph (16 km/h)
• Reflectors for night visibility
• CE marked
• Durable powder-coat finish

Specifications

Fluid Service Unit

• Fluid: L-1009 Oil (Phosphate Ester, Type IV)
• Capacity: 10 gallons (38 liters)
• Maximum Pressure: 200 psi (13.8 bar)
• Dimensions: 14.8" W x 14.9" L x 10.4" H (37.6 x 37.8 x 26.4 cm)
• Pump Displacement: 4.4 cubic inch/stroke (72.11 cc/stroke)

Nitrogen Booster

• Minimum Supply Bottle Pressure: 250 psig (17 bar)
• Nitrogen Input to Booster Pump: 80 SCFM at 150 psig (10.3 bar) max.
• Booster High-Pressure Air Pilot: 4,000 psig (276 bar)
• Booster High-Pressure Relief: 4,000 psig (303.4 bar)
• Low-Pressure Regulator: 0 to 500 psi (34.5 bar) output

Overall Unit

• Dimensions: 119.75" L x 73" W x 68.25" H (304 x 185 x 173 cm)
• Weight: 1,000 lbs. (454 kg)

Calibration Information

The Certificates of Calibration supplied for the gauge(s) on this unit contain the calibration data for the actual instrument calibrated, along with the calibration date of the standard used to perform the calibration check.

The due date for instrument recalibration should be based on the date the instrument was placed in service in your facility. Recalibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements.
