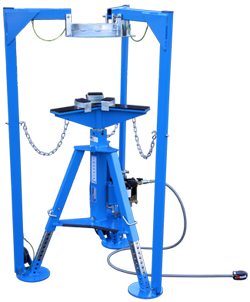

The Tronair 14A6801-0120 hydraulic beadbreaker features a pneumatic pump (2500 PSI).
Standard Features
- Sturdy welded steel construction
- Fits tire rim diameters 8 to 20 in (20 to 51 cm) with breaker rings (sold separately)
- Telescoping legs to adjust for tire widths
- Accommodates locking ring type wheel
- Three padded sliding bottom breaker pads to protect against rim damage
- These beadbreakers are not functional without breaker ring
- Finish: Durable Powder Coat Tronair Blue
- It is recommended to order 14B6801-0120 for rims 17 in (43 cm) or larger
| General Information | |
|---|---|
| Part # | 14A6801-0120 |
| Manufacturer | Tronair |
| NSN | 4910016718691 |
| Manual 1 | View Tronair 14A6801-0120 Parts and Service Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 310 lbs. |
| Shipping Dimensions | 43 x 43 x 62 in. |
| Schedule B | 8479899900 |
| ECCN | EAR99 |
| Accessories/Kits/Adapters | |
|---|---|
| K-2540 | 4,500 psi (310 bar) Air pump field installation kit |
| K-3721 | 8,000 psi (5520 bar) Air pump field installation kit |
| Spare Parts | |
|---|---|
| G-1100-105506 | Bolt, Hex Head, Grade 5, 1/4-28 x 3/4" long |
| G-1100-106510 | Bolt, Hex Head, Grade 5, 5/16-24 x 1" long |
| G-1100-109526 | Bolt, Hex Head, Grade 5, 1/2-20 x 2 3/4" long |
| G-1202-1055 | Stopnut, 1/4-28 Elastic |
| G-1202-1065 | Stopnut, 5/16-24 Elastic |
| G-1203-1095 | Jamnut, 1/2-20 Elastic |
| G-1250-1050N | Flatwasher, 1/4 Narrow |
| G-1250-1060N | Flatwasher, 5/16 Narrow |
| G-1307-0618 | ‘C’ Pin, 3/8" x 1.8" long |
| G-1311-01 | Pin, Lock |
| G-1351-04 | Rivet, 1/8" Open-End Steel |
| H-1022 | Pad, Neoprene |
| H-1023 | Pad, Neoprene |
| H-1026*12.0 | Assembly, Lanyard |
| H-1045 | Breather |
| H-1173 | Valve, Plug |
| H-1174 | Pump, Air |
| HC-1101-01 | Valve, Needle |
| HC-1683-01 | Cylinder, Replacement |
| HK-2513 | Kit, Seal Repair |
| K-1165 | Kit, Replacement Whee |
| K-2377 | Kit, Replacement Pin |
| K-2378 | Kit, Support Pad |
| K-2379 | Kit, Wheel Support |
| K-2513 | Kit, Cylinder Seal |
| K-2546 | Kit, Foot Valve |
| N-2005-04-S | Elbow, 90° Male |
| N-2010-04-S | Connector, Female |
| N-2026-01-S | Swivel, 37° JIC |
| N-2209-03-S | Tee, Street |
| N-2210-05-S | Reducer, Pipe Thread |
| N-2410-02 | Elbow, 90° Male |
| N-2412-04 | Connector, Straight Male |
| PC-1066 | Valve, Pneumatic Foot |
| See 6.0 Optional Tire Rings | Weldment, Tire Ring |
| TF-1047-01*03.0 | Hose, 1/4" Grey |
| TF-1047-01*08.0 | Hose, 1/4" Grey |
| TF-1047-01*72.0 | Hose, 1/4" Gray |
| U-1002 | Wheel |
| Z-1066-01 | Weldment, Support |
| Z-1069-01 | Weldment, Arm |
| Z-1073 | Weldment, Support Pad |
| Z-1136-01-01 | Weldment, Leg Set |
| Z-1136-02-01 | Weldment, Leg Set |
| Z-1136-03-01 | Weldment, Leg Set |
| Z-3281-01 | Weldment, Bracket |
