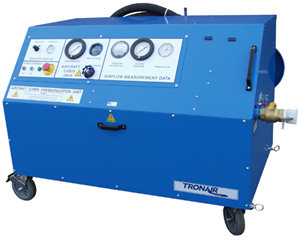

Tronair 15C7603-1000 – Cabin Pressurization Unit – 380V / 60 Hz / 3-Phase (CE)
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 15C7603-1000 Cabin Pressurization Unit is designed to provide a controllable air supply for the pressurization of aircraft cabin and cockpit areas for the purpose of cabin leakage testing and/or outflow valve tests.
Adapter kits (sold separately) must be used to connect the supply hose from the CPU to the aircraft.
Standard Features
- 50-ft. (15.2 m) input power cable (plug not included)
- 25-ft. (7.6 m) #4 cabin pressure sensor hose with 37º JIC female swivel connector
- 2" (5 cm) ID cabin air supply hose, 25 ft. (7.6 m)
- 3-phase, heavy-duty 20 HP motor with a 5-year warranty
- Heavy-duty starter with solid-state overload protection
- High-output, belt-driven blower with oil-level indicator
- High-efficiency industrial blower silencers
- Certified output and cabin pressure gauges 0 to 15 psi (0 to 1.03 bar)
- Certified door seal pressure gauge 0 to 30 psi (0 to 2.07 bar)
- Certified rate of climb indicator
- Air inlet filter – dry element
- Pressure relief valve set at 13.5 psi (.93 bar)
- Four swivel casters with 8" (20.3 cm) hard rubber tires, foot brakes, and swivel locks
- CE marked
- Durable powder-coat finish (Tronair Blue)
- NOTE: SCFM to ACFM conversion could reduce flow by 10%
Specifications
- Pressure Range: 0 to 13 psi (0 to 0.90 bar)
- Flow Range: 0 to 275 SCFM
- Relief Valve Setting: 13.5 psi (0.93 bar)
- Maximum Permitted Outlet Air Temperature: 300°F (150°C)
- Motor: 20 HP (voltage optional)
- Max. Shop Air Supply Pressure: 150 psi (10.3 bar)
- Maximum Noise Level: 84 dB(a) @ 10 ft. (3 m) @ 0 psi (0 bar); 91 dB(a) @ 3 ft. (0.9 m) @ 12 psi (0.83 bar)
- Maximum Noise Level at Operator Station: 83 dB(a) @ 0 psi; 90 dB(a) @ 12 psi (0.83 bar)
- Dimensions: 70" x 48" x 49" (180 x 122 x 125 cm)
- Cabin Supply Hose: 2" (5 cm) diameter x 25 ft. (7.6 m) long
- Cabin Sensor Feedback Hose: 1/4" (0.6 cm) diameter x 30 ft. (9.1 m) long
- Door Seal Supply Hose: 1/4" (0.6 cm) diameter x 30 ft. (9.1 m) long
- Weight: 1,100 lbs. (500 kg)
| General Information | |
|---|---|
| Part # | 15C7603-1000 |
| Manufacturer | Tronair |
| Warranty | |
|---|---|
| Details | View Warranty Details |
| Shipping Information | |
|---|---|
| Shipping Weight | 1500 lbs. |
| Shipping Dimensions | 95 x 65 x 62 in. |
| Freight NMFC | 133300 |
| Schedule B | 9032810080 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Electrical | 380/60/3 V/Hz/ph |
| Flow Rate | 0-275 scfm |
| Height | 49 (125) in (cm) |
| Length | 70 (178) in (cm) |
| Pressure Relief Valve Set At | 13.5 (.93) psi (bar) |
| Rate of Climb Indicator | 0-4,000 (0-2,032) ft/min (cm/sec) |
| Weight | 1,100 (499) lb (kg) |
| Width | 48 (122) in (cm) |
| Accessories/Kits/Adapters | |
|---|---|
| K-1285 | Beech King Air 99/1900, King Air |
| K-1286 | Lear 21, 25, 35, 36 |
| K-1288 | Citation III, VI, VII, X, 510, 650, 680, 750 |
| K-1359 | Cessna 421, 425, 441 , Lear 45 |
| K-1360 | Lear 55 (after S/N 125), EMB-120 (A/C must have LearJet Part Number 541*057-8 duct) |
| K-1381 | Piper PA-31T, Aerostar, Cheyenne II & III, Chieftan, Navajo |
| K-1456 | Beech Duke |
| K-1491 | Cessna 337 |
| K-1622 | Falcon 10-100, 20-200, 50, 50EX, 900, 900EX, 2000, 2000EX |
| K-1623 | Aero Commander |
| K-1660 | MU2, BeechJet, Diamond |
| K-1661 | Lear 24 |
| K-2182 | Lear 55 (prior to S/N 125), Lear 60 |
| K-2403 | Sabre 65 |
| K-2418 | G-100, G-150, Westwind 1 & 2 |
| K-2453 | Pilatus PC-12 |
| K-2601 | Citation I, II, V, S/II, CitationJet, CJ1, CJ2, Excel 560XL, Ultra, Ultra Encore |
| K-2610 | HS-125 400-800, Hawker 1000 |
| K-3317 | Sino Sweargen SJ30-2 |
Customers also viewed
Cabin Pressurization Unit – 575V / 60 Hz / 3-Phase
Mobile Cabin Pressure Tester (20-200SCFM)
Cabin Pressurization Unit – 460V / 60 Hz / 3-Phase
Cabin Pressurization Unit – 230V, 60 Hz, 3-Phase
Cabin Pressurization Unit – 208V, 60 Hz, 3-Phase
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Adam | A500 , A700 |
| BAe | Jetstream 31 , Jetstream 41 |
| Bombardier |
C-21
,
Challenger 850
,
CRJ100
,
CRJ200
,
Global 7000
,
Global Express
,
Global Express XRS
,
Learjet 23
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 24
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 25
NOTE
An adapter kit (K-1661) is required for this unit.
,
Learjet 31
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 31A
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 35
NOTE
An adapter kit (K-1286) is required for this unit.
,
Learjet 45
NOTE
An adapter kit (K-1359) is required for this unit.
,
Learjet 55
NOTE
An adapter kit – K-2182 for S/N's 1-124, K-1360 for S/N's 125 & after – is required for this unit.
,
Learjet 60
NOTE
An adapter kit (K-2182) is required for this unit.
,
Learjet 70
NOTE
An adapter kit (K-1359) is required for this unit.
,
Learjet 75
NOTE
An adapter kit (K-1359) is required for this unit.
|
| Cessna |
337 Skymaster
NOTE
An adapter kit (K-1491) is required for use with this unit.
,
340
,
Ascend
,
,
Citation 560 XL
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation 560 XLS
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation 650
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation CJ1
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ2
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ3
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation CJ4
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation Encore 560
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation I 500
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation I/SP 501
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation II 550
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation III
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation M2
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation SII
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation Sovereign 680
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation Ultra 560
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation V
NOTE
An adapter kit (K-2601) is required for use with this unit.
,
Citation VI
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation VII
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Citation X 750
NOTE
An adapter kit (K-1288) is required for this unit. Add the High-Pressure Upgrade Kit (K-4031) for increased performance.
,
Latitude 680A
NOTE
An adapter kit (K-1288) is required for use with this unit.
,
Mustang 510
NOTE
An adapter kit (K-2601) is required for use with this unit.
|
| Dassault |
Falcon 10-100
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 20-200
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 2000
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 2000EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
,
Falcon 50EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 900
NOTE
An adapter kit (K-1622) is required for use with this unit.
,
Falcon 900EX
NOTE
An adapter kit (K-1622) is required for use with this unit.
|
| Eclipse | 500 |
| Embraer |
EMB-110
,
,
ERJ-135
,
ERJ-140
,
ERJ-145
,
Phenom 100
NOTE
An adapter kit (K-4281) is required for use with this unit.
,
Phenom 300
|
| Fairchild/Dornier | Dornier DO328 , Dornier DO328 Jet , Metro Merlin III , Metro Merlin IV |
| Gulfstream |
Aero Commander
NOTE
An adapter kit (K-1623) is required for use with this unit.
,
G100 (Astra SPX)
NOTE
An adapter kit (K-2418) is required for use with this unit.
,
,
G200 (Galaxy)
,
G280
|
| Hawker Beechcraft |
Beech 1900
NOTE
An adapter kit (K-1285) is required for this unit.
,
,
Beechjet 400A
NOTE
An adapter kit (K-1660) is required for this unit.
,
C-12
NOTE
An adapter kit – K-1285 or K-1359 (on aircraft with serial numbers BB1347 and higher) – is required for this unit.
,
,
Hawker 1000
NOTE
An adapter kit (K-2610) is required for this unit.
,
Hawker 4000 (Horizon)
NOTE
An adapter kit (K-2610) is required for this unit.
,
HS-125 400 Series
NOTE
An adapter kit (K-2610) is required for this unit.
,
HS-125 800 / 850 / 900 Series
NOTE
An adapter kit (K-2610) is required for this unit.
,
,
Premier
,
T-1 Jayhawk
NOTE
An adapter kit (K-2610) is required for this unit.
,
|
| IAI | Astra , Westwind 1 , Westwind 2 |
| Pilatus | , |
| Piper |
,
Cheyenne II
NOTE
An adapter kit (K-1381) is required for this unit.
,
Cheyenne III
NOTE
An adapter kit (K-1381) is required for this unit.
,
,
|
| Saab | 2000 , 340 |
| Sabreliner | 40 Series , , 70 Series |
| Sino Swearingen | |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
