Tronair 50101AB1 Hydraulic Power Unit | 6 GPM, 1800 PSI, 3 HP - 5606 Fluid

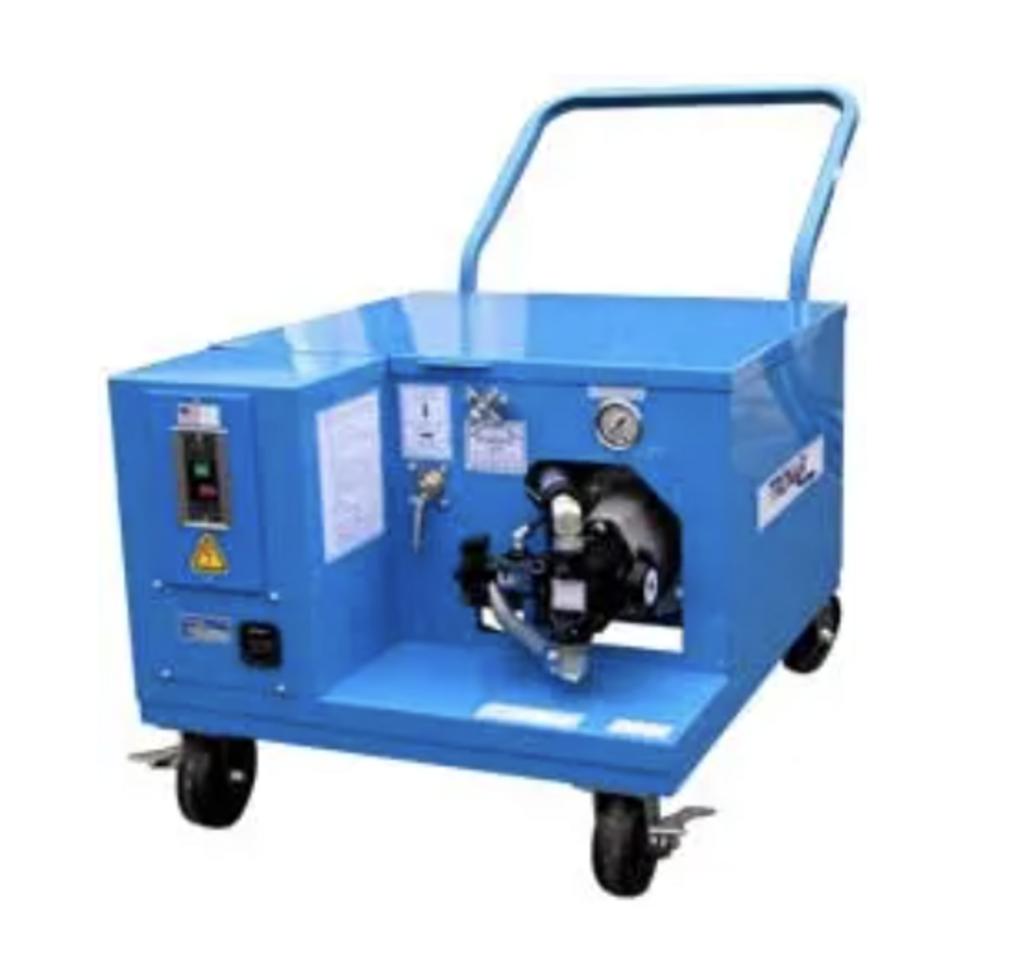

Tronair 50101AB1 Hydraulic Power Unit (HPU)

Fully Configured Model Based on Tronair 5010 Platform
Previous Model Number: 05-7008-1100

The Tronair 50101AB1 Hydraulic Power Unit is a rugged, reliable, and fully configured hydraulic power solution designed to support a wide range of aircraft ground support and maintenance operations. Built on the proven Tronair 5010 base platform, this unit is delivered as a complete, ready-to-operate configuration, eliminating the need for additional customization or field modifications.

Engineered for durability and consistent performance, the 50101AB1 delivers up to 6 GPM at 1,800 PSI and is optimized for use with MIL-PRF-5606 hydraulic fluid, making it ideal for aviation maintenance environments where dependable hydraulic power is critical. Its compact footprint, straightforward single-system design, and high-quality Tronair components ensure ease of operation, long service life, and minimal downtime.

Finished in Tronair Blue and equipped with KHC-1005 couplers, this HPU integrates seamlessly with compatible aircraft and GSE systems. The unit operates on 220–240V, 3-phase, 60 Hz power and includes a 50-foot AC input cable, providing flexibility for hangar or ramp use.

Key Features & Benefits

• Fully built-out configuration based on the Tronair 5010 base model

• Delivers 0–6 GPM at up to 1,800 PSI for versatile hydraulic applications

• Designed for use with MIL-PRF-5606 hydraulic fluid

• Single-system operation for simplicity and reliability

• 15-foot hydraulic hoses included for extended reach

• KHC-1005 quick-disconnect couplers for secure, efficient connections

• Durable Tronair Blue finish for corrosion resistance and brand consistency

• Non-CE compliant configuration for applicable markets

Technical Specifications

• Model Number: Tronair 50101AB1

• Base Model: Tronair 5010

• Previous Model Number: 05-7008-1100

• Flow Rate: 0–6 GPM

• Maximum Pressure: 1,800 PSI

• Motor Power: 3 HP

• Hydraulic Fluid: MIL-PRF-5606

• System Type: Single system

• Couplers: KHC-1005

• Hose Length: 15 ft

• Compliance: Non-CE

• Finish Color: Tronair Blue

• Input Voltage: 220–240V, 3-Phase, 60 Hz

• Power Cable: 50 ft AC input cable included
