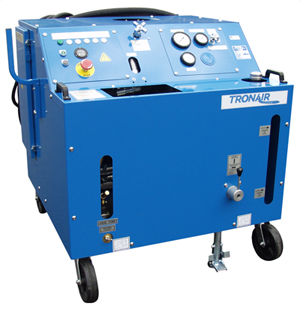

This Tronair Hydraulic Power Unit (Series 5330) uses Skydrol or Hyjet fluid with an output of 11 gallons per minute on 60Hz and 9 gallons per minute on 50Hz. Output pressure is from 750 to 5000 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).
Standard Features:
- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1-15 gpm (4-56 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
| Alternate Models | |
|---|---|
| 5331 | CE Compliant Version |
| General Information | |
|---|---|
| Part # | 5330 |
| Manufacturer | Tronair |
| Specifications | |
|---|---|
| Fluid | Skydrol or Hyjet |
| Motor | 25 (19) hp (kW) |
| Pressure | 750-5000 (52-345) psi (bar) |
| Pressure Gauge Max | 7500 (515) psi (bar) |
| Pressure Hose | 8 (1/2") size |
| Pump Flow (50 Hz) | 9 (34.6) gpm (lpm) |
| Pump Flow (60 Hz) | 11 (41.6) gpm (lpm) |
| Return Hose | 16 (1") size |
| Weight | 1450 (658) lb (kg) |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Tronair 5330/5331 Series HPUs can be set for 200V to 460V 3-phase input voltage at either 50 or 60 Hz. They can also offer 575V at 60 Hz, which is limited to Canada. Since these units are custom-built, this information is required upfront to complete them.
The replacement pressure hose for the 5330/5331 Series HPU is TF-1117-17*300 (superseded to TF-1161-06*300), and the return hose is TF-1041-01*300.
Standard features for the Tronair 5330/5331 Series HPU include:
- 50' Input Cable
- 25' Hoses
- Single System
- Return Filter
- 30-Gallon Reservoir
Available options for the Tronair 5330/5331 Series HPU include:
- 25' Hoses (Option A/AA)
- 50' Hoses (Option B/BB)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option E/F – 50 and 60 Hz)
- Voltage Monitor (Option G-J – Voltage-Specific)
- Pyrometer (Option K)
- Electrical Reservoir Level (Option L)
- Hand Pump (Option M)
- Towing/Trailer Package (Option N)
- Reservoir Return (Option P)
- Calibration Port (Option Q)
- Electrical Filter Clogged Indicator (Option R)
- Electric Over-Temperature (Option S)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Sight Gauge (Option U/Y)
- Return Back-Pressure (Option V/1)
- 50' Hand Pump (Option X)
- Drip Pan (Option 4)
- Hand Pump (Large Displacement) (Option 7)
- Pressure-Reducing Valve (Split System) (Option 8)
- 100' Input Cable
