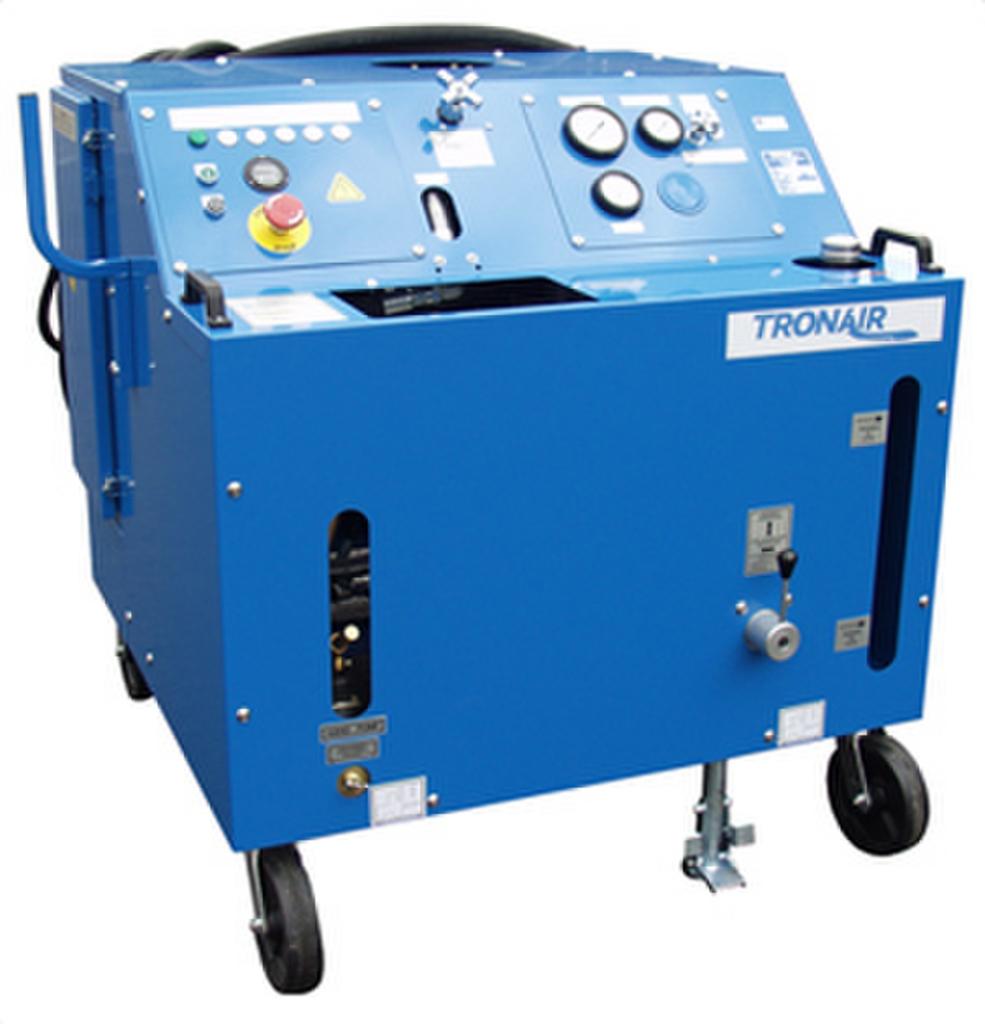

Tronair 5431/5430 Series Hydraulic Power Unit - Skydrol or HyJet Fluids - 54311ZZ0C
Create yours now for free.
Need a Quote?

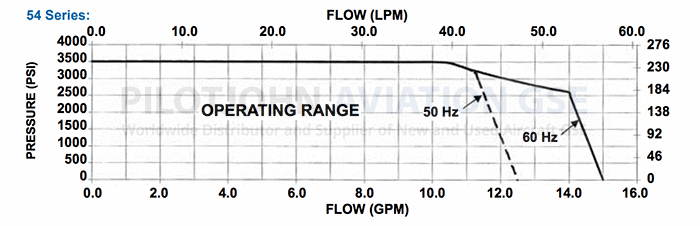

The Tronair 54311ZZ0C Series 5430/5431 hydraulic power unit (HPU) utilizes Skydrol or HyJet fluid and has an output of 15 gallons per minute at 60 Hz and 12 gallons per minute at 50 Hz. The output pressure ranges from 750 to 3,500 PSI (max). Quick disconnects are available as an option for each particular aircraft (if needed).
The 54311ZZ0C is the split-system base model, featuring a 3-phase, 208V AC input voltage. Aircraft couplers are not included with this model.
Standard Features
- Adjustable working pressure
- 3-phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure-compensated, variable-voltage piston pump
- 30-gallon (114 liters) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3-phase electric fan (16,000 BTU/hr cooling capacity)
- High-efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large-capacity return filter with 5-micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy-access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1 to 15 gpm (4 to 56 lpm) dual-scale flowmeter
- Dual-scale pressure gauge
- Standard 25-ft (7.62 m) pressure and return hoses
- Standard 50-ft (15.24 m) input power cord without input plug
- CE marked
- Durable powder-coat finish (Tronair Blue)
- Dimensions: 54" L x 51" W x 50" H (137 x 130 x 127 cm)
Shipping Dimensions
- Dimensions: 67" x 66" x 61" (170 x 168 x 155 cm)
- Weight: 1,750 lbs (794 kg)
- Class: 92.5
- NMFC: 133300-3
- Schedule B: 9032.81.0080
| Alternate Models | |
|---|---|
| 05-7022-3300 | |
| 05-7022-3410 | |
| 5431 | |
| General Information | |
|---|---|
| Part # | 54311ZZ0C |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 1785 lbs. |
| Shipping Dimensions | 73 x 67 x 60 in. |
| Freight NMFC | 133300 |
| Schedule B | 9032810080 |
| ECCN | EAR99 |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Per-hour operating costs for the Tronair Series 5430/5431 HPU can vary depending on location, usage frequency, and maintenance practices. To help minimize expenses, Tronair recommends operating the unit at least once a month if it is not used regularly. Routine operation keeps seals lubricated, eliminates air pockets, reduces moisture in the hydraulic fluid, and helps extend the life of the hose.
Additionally, the filter element should be replaced annually to maintain system cleanliness. Gauges should be calibrated at least once a year, and hoses should be inspected and replaced as needed due to wear and tear. Following these preventative maintenance steps helps lower long-term repair costs and ensures reliable HPU performance.
While this model comes standard with a 3-phase, 208V AC voltage, the unit's voltage can be reset to 230V, 380V, or 480V at 60 Hz. Since these units are custom-built, any voltage changes must be requested at the time of ordering.
Available options for the Tronair 5431 Series HPU include:
- 25' Hoses (Option AA)
- 50' Hoses (Option B/BB)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option E/F – 50 and 60 Hz)
- Voltage Monitor (Option G-J – Voltage-Specific)
- Pyrometer (Option K)
- Electrical Reservoir Level (Option L)
- Hand Pump (Option M)
- Towing/Trailer Package (Option N)
- Reservoir Return (Option P)
- Calibration Port (Option Q)
- Electrical Filter Clogged Indicator (Option R)
- Electric Over-Temperature (Option S)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Sight Gauge (Option U/Y)
- Return Back-Pressure (Option V/1)
- 50' Hand Pump (Option X)
- Drip Pan (Option 4)
- Hand Pump (Large Displacement) (Option 7)
- Pressure-Reducing Valve (Split System) (Option 8)
- 100' Input Cable
Hydraulic fluid in the Tronair 5430/5431 HPU should be checked regularly and replaced when contamination, moisture, or degradation is detected. Routine fluid changes are recommended as part of annual preventative maintenance, especially in high-use environments. Using clean, manufacturer-approved hydraulic fluid ensures optimal system performance and extends the life of critical components.
Before operating the Tronair 5430/5431 HPU, technicians should verify fluid levels, inspect hoses for leaks or wear, and ensure all connections are secure. Operators should also verify the gauges for proper calibration and confirm that safety features, such as the filter and pressure relief systems, are functioning properly. Performing these quick inspections reduces downtime and enhances operational safety.
The replacement pressure hose for the 5431 Series HPU is TF-1040-01*300, and the return hose is TF-1041-01*300.
