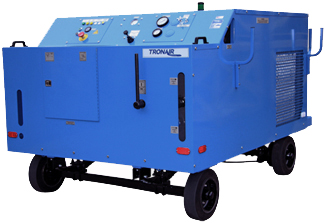

Tronair 5A33 Hydraulic Power Unit - 65 GPM / 3500 PSI

Tronair 5A32
Manufacturer: Tronair
Part Number: 5A32
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Aircraft:
Hanger/Input Voltage:
Do You Need Quick Disconnects?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
50 GPM, 3500 PSI, 100 HP
65 GPM, 5000 PSI, 150 HP
6 GPM, 1800 PSI, 3 HP
50 GPM, 5000 PSI, 150 HP with Soft Start
Skydrol - Diesel Engine Driven HPU - 0 to 34 GPM, 250 to 4000 PSI

This Tronair Hydraulic Power Unit (Series 5A33 (CE) - Previous Model Number is 5A32) uses Skydrol or Hyjet fluid with an output of 65 gallons per minute on 60Hz and 54 gallons per minute on 50Hz. Output pressure is from 150 to 3000 psi (max). This series has soft start added on as a standard option. Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).

Available Options
The following are the options available for the Tronair 5A32 HPU. Please specify which options you would like (if any) in the comments box when submitting your HPU quote.

Option B - 50 ft (15.2 m) Hoses
Option C - Dual System
Option H - Voltage Monitor (380 Vac)
Option I - Voltage Monitor (415/460 Vac)
Option J - Voltage Monitor (575 Vac)
Option L - Electronic Reservoir Sensor
Option M - Hand Pump
Option N - Towing/Trailer Package

Standard Features:
  • Adjustable working pressure
  • 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
  • Adjustable pressure compensated, variable volume, piston pump
  • 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
  • Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
  • High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
  • Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
  • Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
  • 2.5-80 gpm (10-300 lpm) dual scale flow meter
  • Dual scale pressure gauge
  • Standard 25 ft (7.62 m) pressure and return hoses
  • Standard 50 ft (15.24 m) input power cord without input plug
  • High fluid temperature (>160° F) shut off switch with LED indicator light
  • 30-240° F (0-115° C) dual scale pyrometer
  • Hourmeter
  • Electric Soft Start (optional)
  • Finish: Durable Powder Coat Tronair Blue
  • Length: 101 in (257 cm)
  • 116 in (295 cm) with option N - Towing Trailer Package
  • Width: 82 in (208 cm)
  • 89 in (226 cm) with option C - Dual System
  • Height: 62.5 in (159 cm)
  • 71 in (181 cm) with option N - Towing Trailer Package
Alternate Models
5A33CE Compliant Version
5A331BJ7CE Soft Start Unit with KHC-1468 Couplers for Airbus/Boeing/MD11/DC10 Aircraft - 380-400V 3 PH 50 HZ Input Voltage
5A331BJ9 CE Soft Start Unit with KHC-1468 Couplers for Airbus/Boeing/MD11/DC10 Aircraft - 440-48V 3 PH 50 HZ Input Voltage
5A331EF7CNCE Soft Start Unit, KHC-1008-A1 Couplers, 380-400V 50 HZ, Dual System, Towing / Trailer Package
5A331ZZ7CNCE Soft Start Unit, No Aircraft Couplers, 380-400V 50 HZ, Dual System, Towing / Trailer Package
Specifications
FluidSkydrol or Hyjet
Motor150 (112) hp (kW)
Pressure150-3000 (10.3-241) psi (bar)
Pressure Gauge Max6000 (410) psi (bar)
Pressure Hose20 (1 1/4") size
Pump Flow (50 Hz)54 (205) gpm (lpm)
Pump Flow (60 Hz)65 (264) gpm (lpm)
Return Hose32 (2") size
Weight6500 (2948) lb (kg)
Compatible Aircraft*
AirbusA300, A310, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Servicing

We service the 5A32 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul
• Repair
• Troubleshoot & Service
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 5A32. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Return Hose
• Pressure Hose
• Hoses Inside of Unit
• Pressure Gauge
• Hand Pump Pressure Gauge
• Hand Pump
• Flow Meter
• Pyrometer
• Hourmeter
• Pressure Filter
• Return Filter
• Hand Pump Filter
• Casters
• Floor Lock
• AC Input Cable
Renting

We provide short-term and long-term rentals for the 5A32. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 5A32 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
