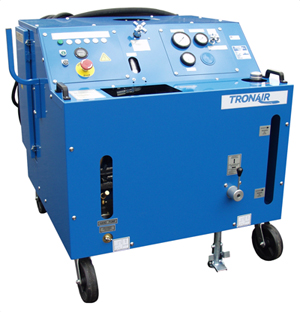

This Tronair Hydraulic Power Unit (Series 5J10 / 5J11 (CE)) uses MIL-H-5606 fluid with an output of 20 gallons per minute on 60Hz and 16.7 gallons per minute on 50Hz. Output pressure is from 250 to 4000 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).
Standard Features:
- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2-25 gpm (7.6-95 lpm) dual scale flow meter - 5J Series ONLY
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
| Alternate Models | |
|---|---|
| 5J101ZZ0 | Base Model, Single System, No Aircraft Couplers, 208V 3 PH 60 HZ Input Voltage |
| 5J101ZZ3 | Base Model, Single System, No Aircraft Couplers, 440-480V 3 PH 60 HZ Input Voltage |
| 5J11 | CE Compliant Version |
| 5J111EB0C | CE Compliant, Dual System, KHC-1005 Couplers, 208V 3 PH 60 HZ |
| 5J111EB0CFY | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue EB - KHC-1005 Aircraft Couplers (2 sets) 0 - 208V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Split System F - Hourmeter Y - Return Sightgauge (Split System) Standard Features: 25 ft Hoses (2 sets) Split System Return Filter 30 Gallon Reservoir |
| 5J111EB3C | CE Compliant, Dual System, KHC-1005 Aircraft Couplers, 220-240V 3 PH 60 HZ Input Voltage |
| 5J111EBTCFKQ4N | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue EB - KHC-1005 Aircraft Couplers (2 sets) 3 - 440-480V 3 PH 60 HZ Input Voltage Required / 100' AC Input Cable Included C - Split System F - Hourmeter K - Pyrometer Q - Calibration Port 4 - Drip Pan N - Towing/Trailer Package Standard Features: 25 ft Hoses (2 sets) Split System Return Filter 30 Gallon Reservoir |
| 5J111ZZ1 | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included |
| 5J111ZZ1FKQ4 | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included F - Hourmeter K - Pyrometer Q - Calibration Port 4 - Drip Pan Standard Features: Single Features 25 ft Hoses (1 Set) |
| 5J111ZZ3C | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 3 - 440-480V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Split System Standard Features: 25 ft Hoses (2 Sets) |
| 5J112EB1CFG | 2 - Safety Yellow EB - KHC-1005 Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Split (Dual) System F - Hourmeter G - Voltage Monitor |
| 5J211EB1D8 | 5 - HPU J - 20 GPM / 4000 PSI / 30 HP 2 - MIL-PRF-83282 1 - CE Compliant 1 - Tronair Blue EB - KHC-1005 Aircraft / Helicopter Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included D- Split System w/ crossover check 8-pressure reducing valve (split system) Standard Features: 25 ft Hoses Single System Return Filter 30 Gallon Reservoir |
| General Information | |
|---|---|
| Part # | 5J10 |
| Manufacturer | Tronair |
| Specifications | |
|---|---|
| Fluid | MIL-H-5606 |
| Motor | 30 (22) hp (kW) |
| Pressure | 250-4000 (17-276) psi (bar) |
| Pressure Gauge Max | 6000 (410) psi (bar) |
| Pressure Hose | 12 (3/4") size |
| Pump Flow (50 Hz) | 16.7 (63) gpm (lpm) |
| Pump Flow (60 Hz) | 20 (76) gpm (lpm) |
| Return Hose | 16 (1") size |
| Weight | 1650 (748) lb (kg) |
Customers also viewed
10 GPM (60 Hz), 8.3 GPM (50 Hz), 750 to 3000 PSI, 15 HP
15 GPM (60Hz), 12 GPM (50Hz), 750-3500 PSI, 25 HP
15 GPM (60Hz), 12 GPM (50Hz), 750-5000 PSI, 25 HP
34 GPM, 3500 PSI, 75 HP
Transponder, ADS-B, DME, Navigation, & Radio Test (Comms)
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Dassault | Falcon 2000 , Falcon 2000EX |
| Hawker Beechcraft | Hawker 4000 (Horizon) |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
