Tronair 99-7136-6000 – Hatch Installation & Removal Tool (CE)

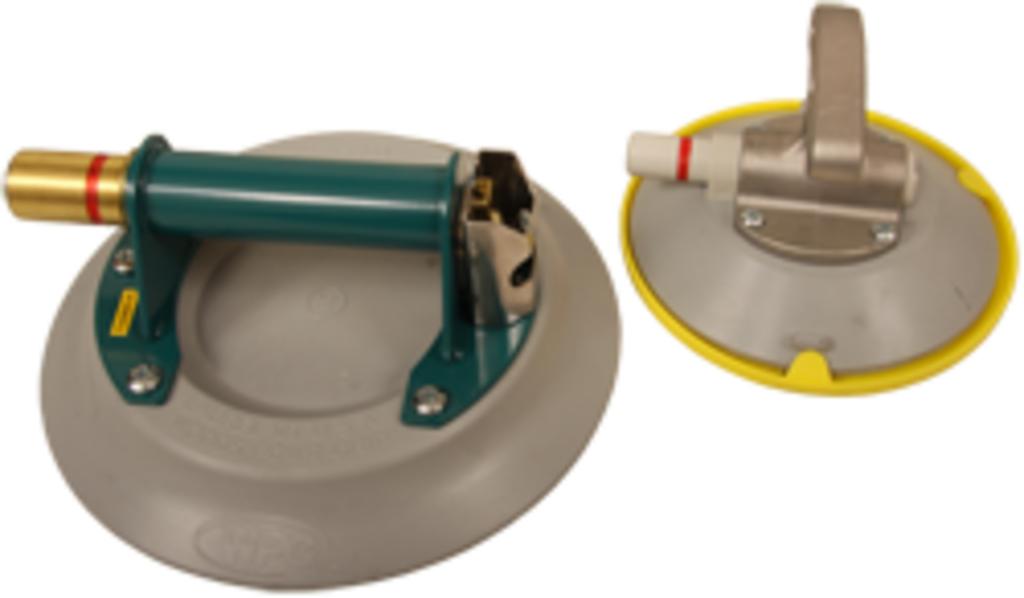

The Tronair 99-7136-6000 Hatch Installation & Removal Tool includes a set of two hand/vacuum cups (H-3800 and H-3801) used to lift and carry loads during aircraft maintenance. This CE-marked tool is specifically designed for use on the Embraer Lineage 1000 aircraft.

H-3800 Features

• Heavy-duty handle
• Flexible vacuum pad edge for easy attachment on either flat or curved, nonporous surfaces
• Red-line indicator warns the user of any significant vacuum loss
• Check valve allows repumping without the loss of the remaining vacuum
• Release valve lever permits a quick and complete release
• Protective carrying case included

H-3801 Features

• Rugged and convenient aluminum handle
• Easily lifts and positions a wide variety of items, including windshields, stone tiles, and sheet materials
• Ideal for gripping smooth, nonporous surfaces, whether curved or flat
• Red-line indicator warns the user of any significant vacuum loss
• Check valve allows repumping without the loss of the remaining vacuum
• Lift tabs on the vacuum pad edges permit instant release
• Vacuum pad protector included

Specifications

• Vacuum Pad Diameter:
  • H-3800: 9" (23 cm)
  • H-3801: 6" (15 cm)
• Minimum Radius for Curved Load:
  • H-3800: 21.5" (54.5 cm)
  • H-3801: 12" (30.5 cm)
• Load Capacity:
  • H-3800: 150 lbs. (68 kg) per vacuum cup
  • H-3801: 70 lbs. (32 kg) per vacuum cup
