USA Borescopes 4mm Borescope Camera (HD) – Pratt & Whitney Inspection Kit – PWKIT-HD-200
Need a Quote?

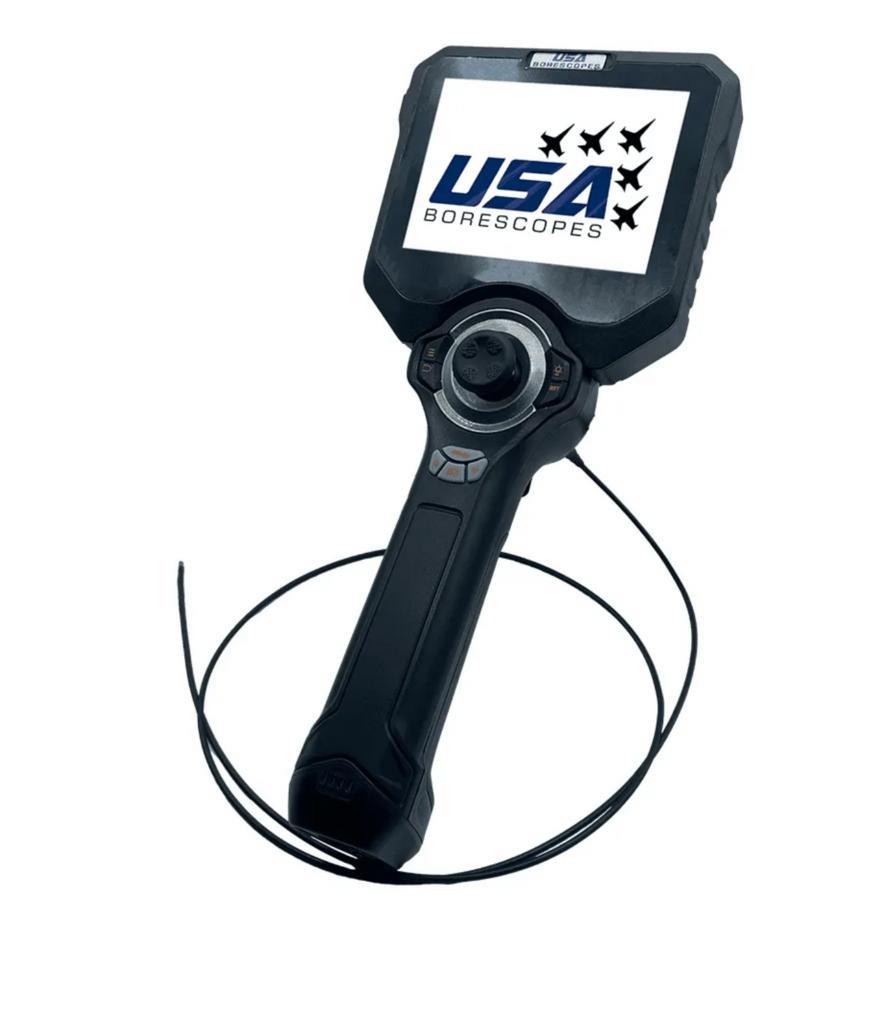

The USA Borescopes PWKIT-HD-600 is a Pratt & Whitney inspection kit that features the widely popular 4mm HD videoscope (SRV-J-4-1500) with joystick articulation (1.5m length), durable tungsten sheathing, built-in picture taking, video recording, a removable SD card, lithium-ion battery pack, and LCD viewing screen all built into a compact form. The system has undergone many improvements over the years to allow for better light output, enhanced image quality, and upgraded recording software to better serve the inspection professionals utilizing this equipment.
This borescope kit has been found especially useful for inspecting Pratt & Whitney PT6 engines, highlighting the unit's small diameter and short distal ends in order to easily navigate through the PWC34910-200 guide tube.

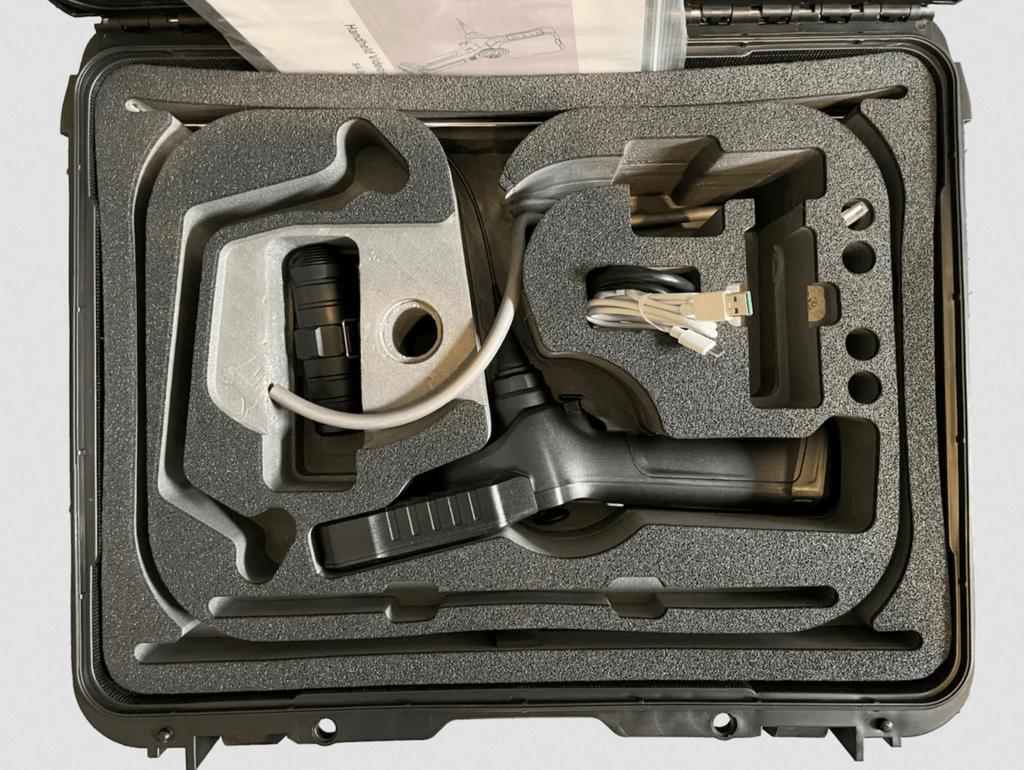

Included in this Kit:
PWC34910-200 guide tube
The kit also includes:
- Rigid sleeve set with gripping handle
- Heavy-duty carrying case
- SD card reader
- Battery charger.
The PWC34910-200 guide tube fits the following Pratt & Whitney engines:
- PT6A-10
- PT6A-11
- PT6A-11AG
- PT6A-15AG
- PT6A-20
- PT6A-21
- PT6A-28
- PT6A-34
- PT6A-36
- PT6-112
- PT6-114
- PT6-135A
- PT6A-121
- PT6B-35F
- PT6B-36
- PT6T-3
- PT6T-6
This versatile borescope snake cam can also be used for other aircraft maintenance inspections outside of engine inspections.
| General Information | |
|---|---|
| Part # | PWKIT-HD-200 |
| Manufacturer | USA Borescopes |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA Borescopes PWKIT-HD Pratt & Whitney Inspection Kit is designed for detailed engine inspections on Pratt & Whitney aircraft engines. This kit allows maintenance technicians to examine internal engine components without requiring disassembly, making it ideal for detecting cracks, corrosion, foreign object damage (FOD), and wear.
The high-definition (HD) 4mm videoscope provides clear, high-resolution images, ensuring technicians can identify potential issues with precision. Regular use of this inspection kit helps improve maintenance accuracy, ensuring aircraft engines remain safe and operational while minimizing downtime.
The 4mm HD videoscope included in the Pratt & Whitney Inspection Kit provides superior image quality, allowing technicians to identify even the smallest defects inside the engine. It features 360° joystick articulation, which enables precise navigation through tight or complex engine compartments.
The high-resolution display and real-time video recording capabilities allow maintenance crews to document findings, review footage, and share inspection results with teams or regulatory authorities. The integrated LED illumination ensures clear visibility, even in low-light conditions, making inspections more effective and reliable.
The joystick-controlled articulation in the PWKIT-HD's 4mm HD videoscope provides smooth and precise maneuverability in tight engine compartments. Unlike traditional rigid borescopes, joystick articulation allows for full 360° movement, making it easier to inspect turbine blades, combustion chambers, and other critical areas.
This feature reduces operator fatigue by allowing one-handed control, enhancing efficiency and accuracy during inspections. The ability to adjust the probe’s direction with precision ensures that technicians can thoroughly examine all areas of concern without repeated repositioning.
The integrated LED illumination in the PWKIT-HD videoscope enhances visibility inside dark or enclosed engine areas, ensuring high-quality imaging during inspections. The adjustable LED settings allow technicians to control brightness levels, reducing glare and enhancing contrast for better defect detection.
This feature is particularly useful in low-light conditions, where identifying cracks, erosion, and foreign object damage (FOD) is crucial. Proper illumination ensures that technicians can conduct thorough and accurate inspections, improving aircraft safety and maintenance efficiency.
Borescope inspections are crucial for maintaining Pratt & Whitney engines. They allow technicians to detect internal damage without requiring complete engine disassembly. This non-invasive method helps identify early signs of wear, cracking, and contamination, which, if left unchecked, could lead to engine failure and costly repairs.
Routine borescope inspections ensure regulatory compliance, extend engine life, and prevent unexpected in-flight issues. By using the USA Borescopes PWKIT-HD Inspection Kit, maintenance teams can improve efficiency and accuracy, reducing aircraft downtime while ensuring optimal engine performance.
