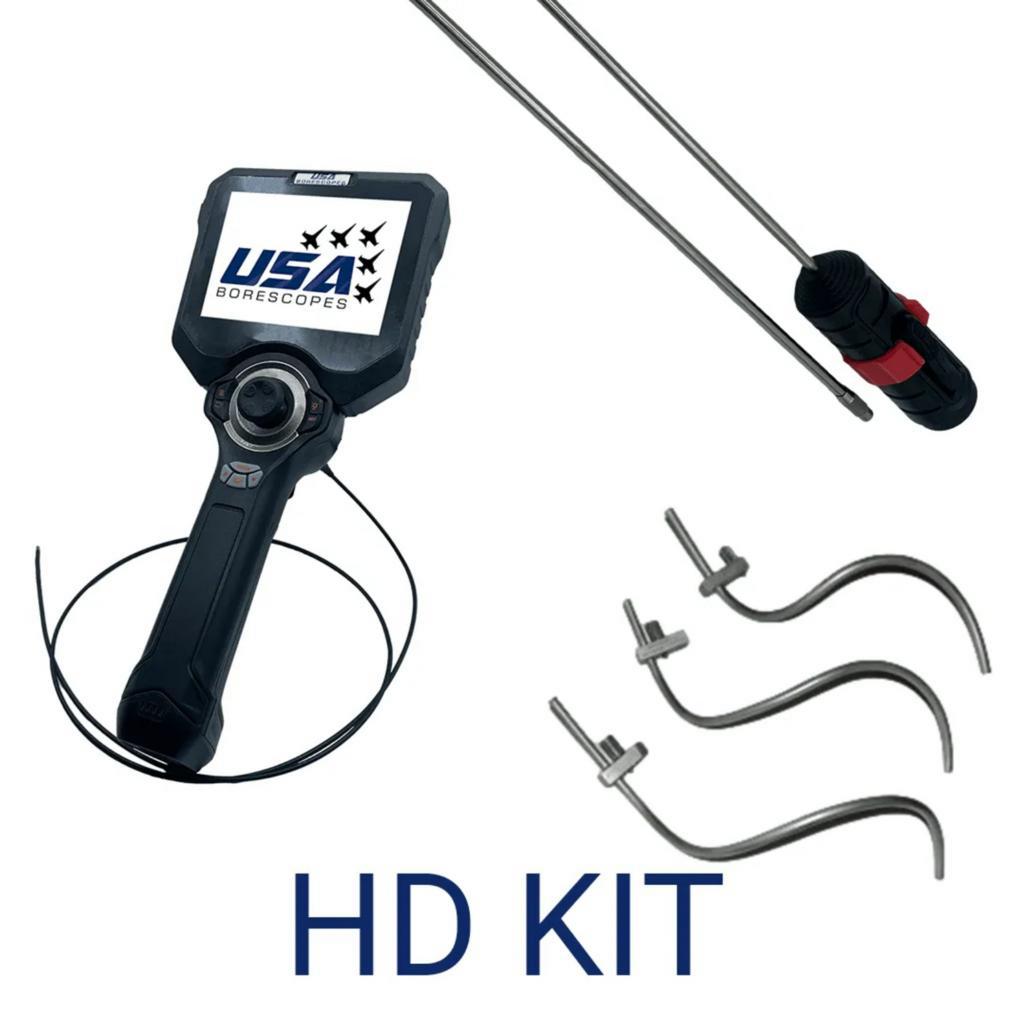

USA Borescopes PWKIT-HD-400 Pratt & Whitney Inspection Kit – 4mm HD Joystick Articulating Videoscope

The PWKIT-HD-400 is configured specifically for Pratt & Whitney turbine inspections, combining the SRV-J-4-1500 videoscope with compatible guide tubes to support structured engine inspection workflows. This configuration helps technicians access defined inspection ports while maintaining proper probe control and image clarity. By pairing the correct guide tube with a joystick articulating videoscope, the kit improves efficiency and consistency during scheduled or troubleshooting inspections.

Joystick articulation allows precise, 360° control of the 4 mm insertion tube tip, making it easier to navigate around blades, vanes, and tight internal geometries. Once positioned, the articulation can be locked to maintain a stable viewing angle during image capture. This level of control reduces inspection time and helps ensure critical engine components are viewed from the proper angle.

A 4 mm diameter provides a strong balance between maneuverability and durability in aviation borescope inspections. It is small enough to enter confined Pratt & Whitney inspection ports, yet robust enough for repeated use in demanding MRO environments. This size is especially useful for routine hot section and compressor inspections where access points are restricted.

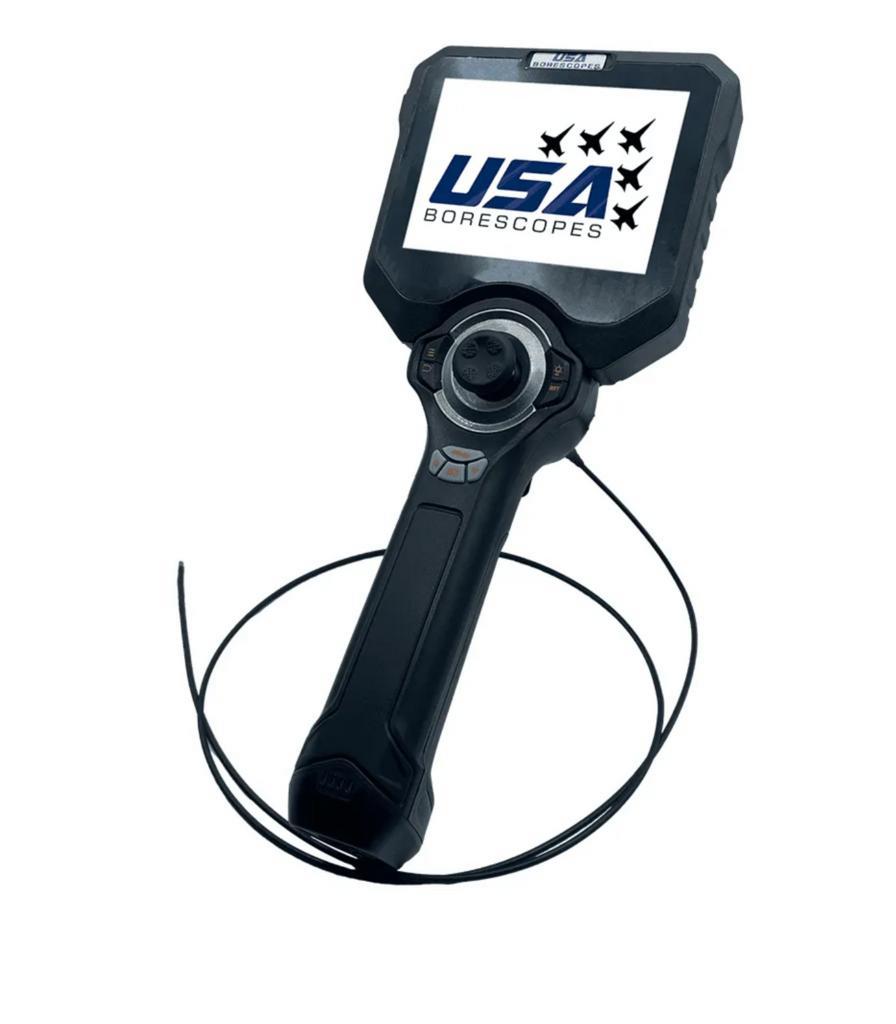

The SRV-J-4-1500 features a 5” high-resolution touchscreen LCD, as outlined in the system parameters section. A larger display allows technicians to clearly view blade edges, surface pitting, cracks, and foreign object damage without constantly zooming in and out. The responsive touch interface also enables quick adjustments to settings during live inspections.

Yes. The PWKIT-HD-400 supports Micro-SD card storage and saves photos in JPG format and videos in MP4 format, as described in the manual’s toolbar section. These digital files can be archived for maintenance tracking, warranty documentation, or trend monitoring. Built-in watermark options also allow date or custom text identification to support compliance and traceability.

EV adjustment allows the operator to fine-tune exposure levels depending on reflective engine surfaces or shadowed areas. High EV values can cause overexposure on bright metallic surfaces, while lower values enhance detail in darker zones, according to the EV adjustment section. This flexibility helps ensure accurate defect detection in varying lighting conditions inside turbine sections.

Yes. The handheld design and rechargeable lithium battery system make the kit suitable for hangar, shop, and on-wing inspections. With portable operation and HDMI output capability, technicians can also display images on external monitors when needed for collaborative review or training.

Pratt & Whitney guide tubes are engineered to help position the videoscope accurately within designated inspection ports. By stabilizing the insertion path, the guide tube reduces unnecessary probe wear and helps maintain consistent viewing angles across repeated inspections. This consistency is especially important when performing comparative inspections over time.

The insertion tube of the SRV-J series is rated IP67 waterproof, as noted in the system parameters. This protection helps safeguard the probe against moisture, oil residue, and typical conditions encountered during engine inspections. Proper cleaning and storage procedures, detailed in the maintenance section of the manual, further extend service life.

By combining a joystick articulating 4 mm videoscope with engine-specific guide tubes and digital documentation capabilities, the PWKIT-HD-400 streamlines turbine inspection workflows. Technicians can quickly capture, annotate, and store findings without additional equipment. This integrated approach reduces inspection downtime and supports faster return-to-service decisions for aircraft powered by Pratt & Whitney engines.
