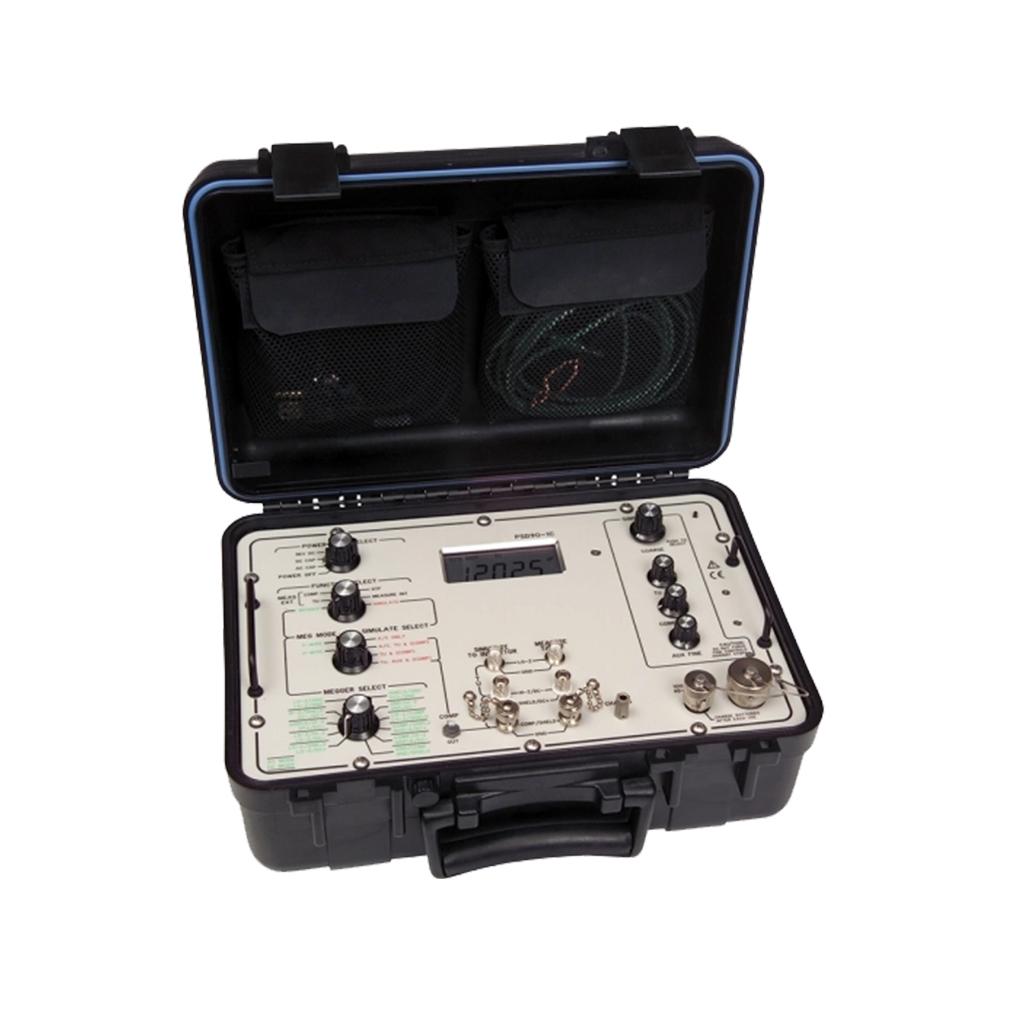

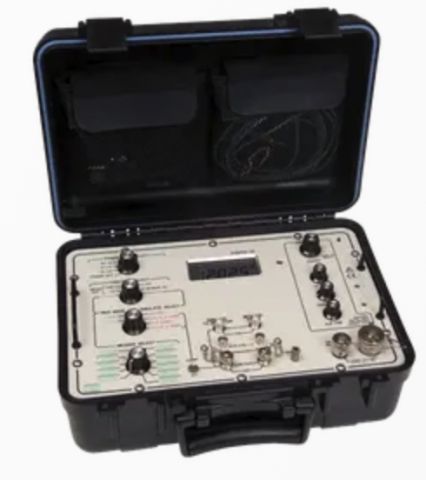

VIAVI PSD90-1C - AC/DC Fuel Capacitance Test Set

PSD90-1C Universal AC/DC Capacitance Test Set

The PSD90-1C Universal AC/DC Capacitance Test Set is designed to test any AC or DC Capacitive Fuel, Water, LOX, or Engine Oil Quantity System*. With features that allow for better troubleshooting and isolation of fuel system issues, this rugged unit can be used anywhere testing and troubleshooting are required. It is capable of operating with external power, making the PSD90-1C ideal for shop or Depot Level repair of fuel system components.

Key Features

• Easy to operate and calibrate
• Annual calibration
• Lightweight and portable
• Rechargeable battery or externally powered
• Displays percent of battery capacity
• Self-test on power-up
• Measures DC voltage (Manual or Auto Ranging)
• Supports 2 and 3 Wire Meggar
• Compliant with Boeing Spec 10-61959 Rev H
• MIL-STD-810 Method 511.4 certified
• Traceable to NIST
• Tests any AC or DC capacitive fuel, water, LOX, engine oil, or other AC capacitive systems*

*Aircraft-specific interface cables are required and must be purchased separately.

Versions

• 877 PSD90-1C/60-110 AC/DC Capacitance Test Set (110 V) PN: 01-1000-60 NSN: 4920-01-510-5628 Designed for F16 fleet
• 878 PSD90-1C/61-110 AC/DC Capacitance Test Set (110 V) PN: 01-1000-61 NSN: 4920-01-528-2230 Designed for universal non-F16 fleet

*Aircraft-specific interface cables are required and must be purchased separately.

Standard Accessories

• 57934 CBL PSD90-1C charger 110 V
• 57939 CBL PSD90-1C charger 230 V
• 75538 Operations Manual PSD90-1C
• 38647 Connector BNCF Rev. Polarity
• 38648 Connector BNCM Rev. Polarity
• 57929 GND Cable
• 57947 Interface 472844 F16 Simulator (Order Number: 877 only)

Optional Accessories

• 853 Precision Transfer Standard PTS-1 JPN: 01-0978-50 NSN: 6625-01-497-5942
