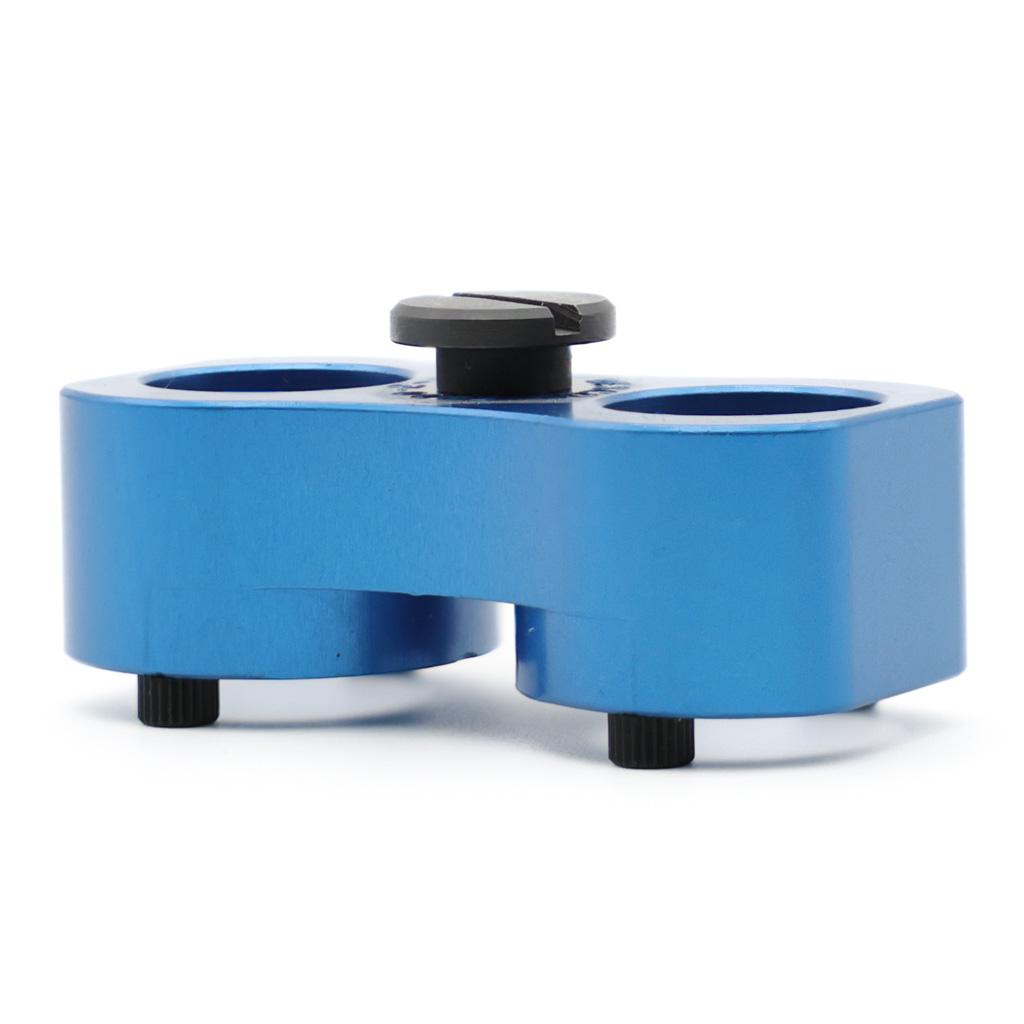

Wescon SR Type Dog Bone Drill Guide - WES5400-2-750

The SR Type Dog Bone Drill Guide (WES5400-2-750) is a Wescon SR-type dog bone drill guide engineered to keep holes straight, aligned, and repeatable in critical aircraft structures. With a hardened guide bushing and precisely controlled outer diameter, it helps technicians maintain drilling accuracy over long service life.

Key Features:

• Dog bone style guide provides a stable reference surface on curved and flat structures
• Precision guide bushing maintains drill alignment for consistent hole quality
• Ideal for repetitive hole patterns in skins, stiffeners, and brackets
• Helps reduce drill walking and surface damage on aluminum and composite structures
• Compact body geometry improves access in tight aircraft and GSE locations
• Manufactured for the rigors of aviation production and MRO environments

Use this Wescon drill guide anywhere precise, repeatable drilling is required on airframes or ground support equipment. Position the guide, clamp or hold it in place, and drill through the bushing to achieve straight, correctly located holes with greater confidence.
