Whelen 01-0690889-010 FLAPX44 - GSE Work Light - Apex - 44"
Create yours now for free.
Need a Quote?

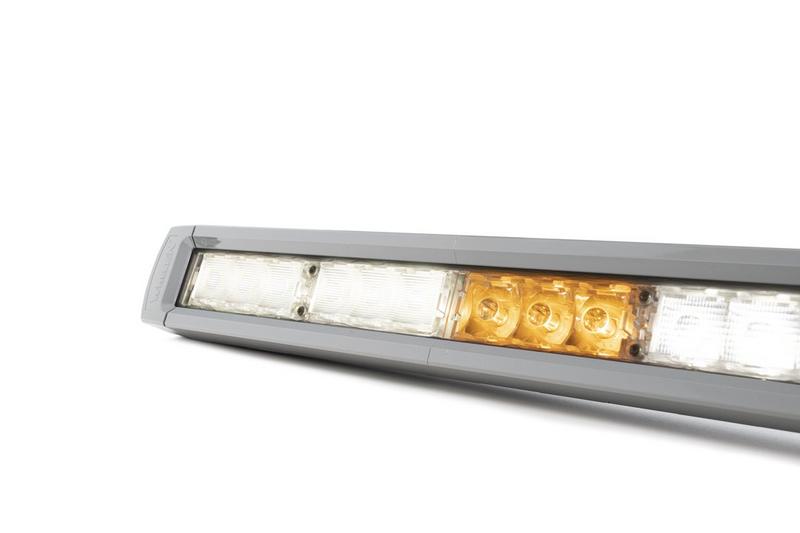

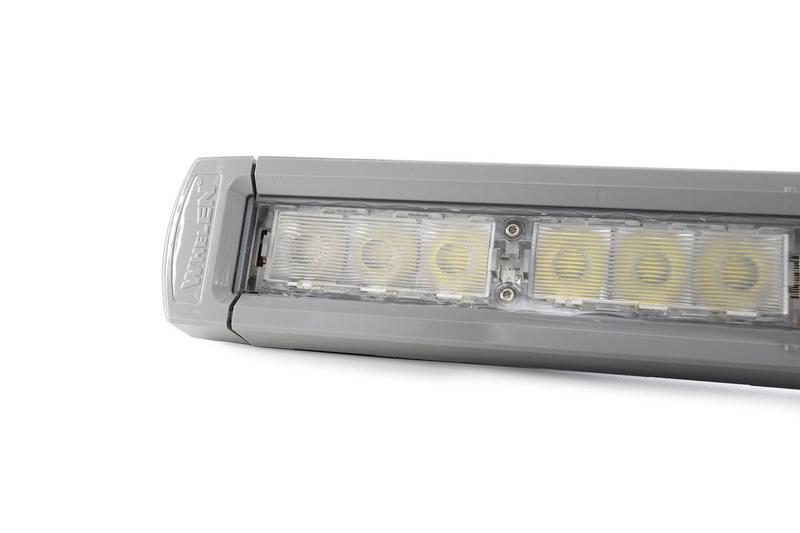

The Whelen 01-0690889-010 FLAPX44 is a 44" GSE work light.
Designed to deliver maximum light intensity, the low-profile Apex Series is available in multiple spot, flood, and scene optic combinations. Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics. The Apex Series features optional integrated warning and clearance lights for optimal illumination and visibility. Mounting brackets not included must purchase separately.
Specifications
- SPECS SAE 578 Color Temperature Certified
- Preconfigured spot, flood, or scene optics
- Available with White illumination
- Warning lights require remote flasher, purchased separately
- Individual control of each set of optics
- Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
- Extruded and die-cast aluminum powder coated housing available in gray
- Screwless lens retainer design provides a clean finish and the improved ability to adjust optic configuration 100% solid-state electronics
- Rated IP67 for dust and water resistance
- Rear mounting track for flexible mounting configurations Bail bracket mount standard
- Includes 30" cable, connector, and heat shrink tubing. Some assembly required
- Dual voltage (10-30 VDC input)
- Five-year warranty
- Module count is per 3 LEDs (each silicone optic)
- Overall size does not include mounting hardware or cable entry
- Side bail brackets add 2" to width
- Depth to cable entry is 3.22"
- The current draw is calculated at l2.8VDC

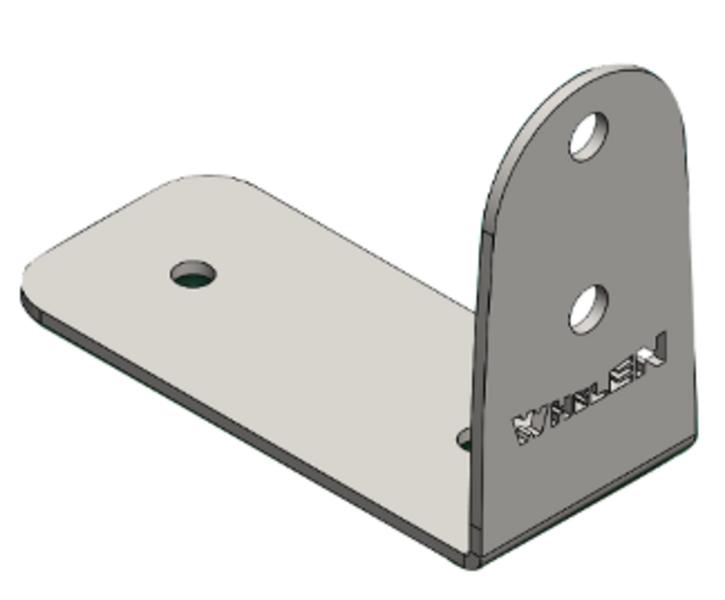

- Mounting brackets not included must purchase separately.
| Alternate Models | |
|---|---|
| FLAPX44 | Whelen Model Number |
| General Information | |
|---|---|
| Part # | 01-0690889-010 |
| Manufacturer | Whelen |
