Tronair 10-4036-0001 Complete Aircraft Lav Cart - Manual Pump - 31 Gallon Waste / 15 Gallon Fill

Tronair 10-4036-0001
Manufacturer: Tronair
Part Number: 10-4036-0001
NSN: 4510-01-385-2362
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
16 Gallon Dump / 16 Gallon Fill Tank
31 Gallon Dump, 15 Gallon Fill Tanks - Small Lavatory Cart
Lavatory Service Unit (Ce) - 30 Gallon Waste / 25 Gallon Fill Tank
Lav Service Cart - Electric Fill Pump - 31 Gallon Waste / 15 Gallon Fill Tank
Manual Pump, 68 Gallon Dump / 31 Gallon Fill

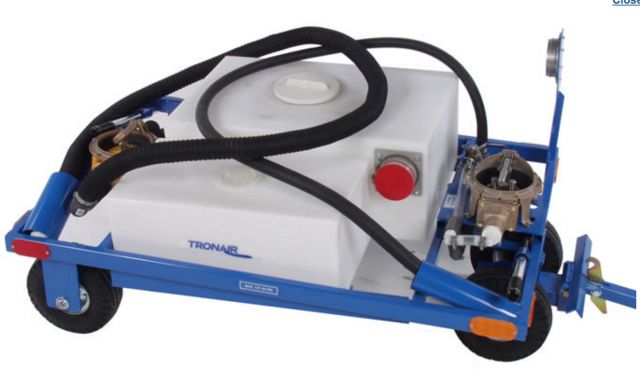

The Tronair 10-4036-0001 is a small complete aircraft lav cart with hose kits and couplings. This lav cart includes a 5 foot waste hose / Wye connector kit (K-2029) and fill coupler (K-2410) as standard.

This cart is complete with all hoses and couplings for use.
K-2029 - 5 foot waste hose with Wye coupling - Included
K-2410 - Aircraft fill coupler - Included

Standard Features

  • Sturdy welded steel construction
  • Dump and fill tanks constructed of high density polyethylene with UV inhibitors
  • 2 in (5 cm) x 10 ft (3.1 m) discharge hose with end cap
  • 1 in (2.54 cm) x 8 ft (2.4 m) fill hose
  • Manual fill and dump pumps (6 strokes per gallon)
  • Electric fill pump (5 gpm) 10-6408-0000 ONLY
  • 8 in (20 cm) pneumatic tires
  • Front wheels lock with towbar in upright position
  • Front wheel assembly for easy maneuvering
  • Finish: Durable Powder Coat Tronair Blue

Application Info

The Tronair 10-4036-0001 lav cart provides a clean, sanitary means of servicing the aircraft lavatory system and transporting the waste fluid to the dump station.

Some important features are:
  • Easily maneuverable with towbar
  • Drain back system on fill hose to prevent fluid spillage
  • Storage tubes for storage of fill and dump hoses
  • Heavy duty fill and dump pumps
  • Fill and dump tanks made of non-corroding HD polyethylene material with UV inhibitor
  • Permanent connection of dump hose to dump tank

Technical Specifications

  • Dimensions: 54 inches long x 36 inches wide x 29 inches high
  • Weight: 280 pounds

Fill System

  • 15 gallon tank capacity; HD Polyethylene
  • One (1) gallon per six (6) strokes fill pump
  • Three (3) inch tank fill port with cover
  • Eight (8) foot fill hose
  • 20 psi max fill pump pressure

Dump System

  • 31 gallon tank capacity; HD Polyethylene
  • 30 gpm manual diaphragm pump
  • Six (6) inch tank clean out port with cover
  • Four (4) inch aluminum tank flange for aircraft dump hose connection
  • 10 foot dump tank hose

Mechanical

  • Eight (8) inch pneumatic tires; 50 psi tire pressure maximum
  • Roller bearings in wheels
  • 10 mph maximum towing speed
Compatible Aircraft*
ATR42, 72
Airbus Military (CASA)212-100, 212-200, C-295, CN-235/HC-144A
BAeJetstream 41
Bombardier (Business)Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Global 5000, Global 6000, Global Express, Global Express XRS, Learjet 45, Learjet 60, Learjet 70, Learjet 75
Bombardier (Regional)Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
CessnaCitation 560 XL, Citation 560 XLS, Citation 650, Citation III, Citation IV, Citation Sovereign 680, Citation VI, Citation VII, Citation X 750, Latitude 680A
DassaultFalcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 900, Falcon 900EX
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Phenom 300
Fairchild/DornierDornier DO328, Dornier DO328 Jet
GulfstreamG100 (Astra SPX), G150, G200 (Galaxy), G350, II, III
Hawker BeechcraftBeechjet 400A, Diamond, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, Premier, T-1 Jayhawk, T-400
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
LockheedC-130
Saab2000, 340
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight450 lbs.
Pkg. 1 Dimensions70 in. x 50 in. x 38 in.
Pkg. 1 TypeCarton
Freight Class150
Freight NMFC188560-4
Schedule B8716.39.0020
Servicing

We service the 10-4036-0001 and other items like it at our facility.

A few of the common services we offer for this item are:
• Complete Overhaul
• Pump Replacement
• Hose / Diaphragm / Coupler Replacement
How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight.
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 10-4036-0001. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Casters / Wheels
• Fill Pump
• Waste Pump
• Fill Pump Diaphragm
• Waste Pump Diaphragm
• Fill Hose
• Waste Hose
• Waste Couplers (Straight or WYE Coupler)
• Fill Coupler
• T-Handles
• PDF Manual
Renting

We provide short-term and long-term rentals for the 10-4036-0001. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 10-4036-0001 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
