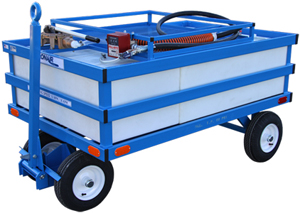

Tronair 10-6401-0010 Aircraft Lav Cart - Manual Fill Pump

Tronair 10-6401-0010
Manufacturer: Tronair
Part Number: 10-6401-0010
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Electric Lavatory Cart - 136 Gallon Dump / 68 Gallon Fill
Potable Water 100 Gallon (Ce) - Electric Fill Pump - No Heater
Manual Pump, 68 Gallon Dump / 31 Gallon Fill
Lavatory Service Unit
Electric Pump, 68 Gallon Dump / 31 Gallon Fill

The Tronair 10-6401-0010 lavatory service unit provides a clean, sanitary means of servicing the aircraft lavatory system and transporting the waste fluid to the dump station.

Standard Features

  • Easily maneuverable with Towbar
  • Drain back system on fill hose to prevent fluid spillage
  • Storage tubes for storage of fill and dump hoses
  • Heavy duty fill and dump pumps
  • Fill and dump tanks made of non-corroding HD polyethylene material with UV inhibitor
  • Permanent connection of dump hose to dump tank

Fill (Fresh) System

  • 68 gallon tank capacity; HD polyethylene
  • Three inch (3") tank fill port with cover
  • One (1) gallon per six (6) strokes fill pump
  • Eight foot (8 ft) fill hose
  • 20 psi max fill pump pressure

Dump System

  • 136 gallon tank capacity; HD polyethylene
  • 30 gpm manual diaphragm pump
  • Five inch (5") tank clean out port with cover
  • Four inch (4") aluminum tank flange for aircraft dump hose connection
  • 18 inch long and three inch (3") I.D. dump tank hoses with 45 connector

Mechanical

  • Steering, pneumatic tire, front wheels with tapered roller bearings (Tire size 4.80/4.00 x 8)
  • Pneumatic tire rear wheels with tapered roller bearings (Tire size 4.80/4/00 x 8)
  • Towing speed - 10 mph maximum
Specifications
Length72 (183) in (cm)
Fill PumpManual
Height45 (114) in (cm)
Width46 (117) in (cm)
Weight700 (318) lb (kg)
Fill Tank68 (257) gal (l)
Dump Tank136 (515) gal (l)
Compatible Aircraft*
AirbusA300, A310, A318, A319, A320, A321
Boeing717, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-80, P-8 Poseidon
Bombardier (Regional)CS100, CS300
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-11, MD-80
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight870 lbs.
Pkg. 1 Dimensions93 in. x 60 in. x 60 in.
Freight Class150
Freight NMFC188560-4
Schedule B8716.39.0020
Servicing

We service the 10-6401-0010 and other items like it at our facility.

A few of the common services we offer for this item are:
• Complete Overhaul
• Pump Replacement
• Hose / Diaphragm / Coupler Replacement
How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight.
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 10-6401-0010. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Casters / Wheels
• Fill Pump
• Waste Pump
• Fill Pump Diaphragm
• Waste Pump Diaphragm
• Fill Hose
• Waste Hose
• Waste Couplers (Straight or WYE Coupler)
• Fill Coupler
• T-Handles
• PDF Manual
Renting

We provide short-term and long-term rentals for the 10-6401-0010. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 10-6401-0010 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
