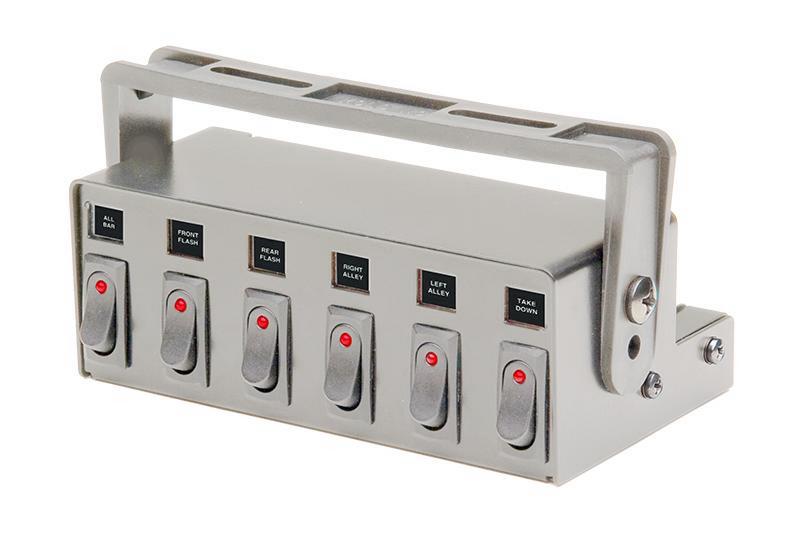

Whelen 01-0690892-000 FLSWl6 - GSE Auxiliary Control Switch

The Whelen 01-0690892-000 FLSWl6 is a 6 port GSE auxiliary control switch for LEDs and lights.

The compact and economic Control Switch is engineered for complete control of numerous auxiliary light functions. Designed for simplistic usage, all models are equipped with LED indicators and include press-on labels for customization.

Specifications

• Complete control of four, or six, auxiliary light functions 25 amp switches
• Rocker-style single pole/single throw switches with 'active' LED indicators
• Individual spade-type fuses conveniently located on rear-mounted fuse strip
• Ignition controlled backlighted legend windows for easy visibility in any light
• Backlight circuit can be connected to vehicle dimmer switch to control backlight intensity
• 72 press-on legend tabs for customization
• Gray epoxy-finished steel housing
• Common ground post for ease of installing
• 12VDC
• Two-year warranty

4 Port Unit

• Terminal block for easy installation
• One 10 amp momentary switch in the last position in place of the standard On/Off switch
• Includes an adjustable two position universal bail bracket strap mounting kit for over or under dash mounting
• Dimensions: 3-3/8" (86mm) H x 6" 052mm) W x 3-9/16" (91mm) D
• Adjustable bracket overall heights: 3-3/8" (86mm) H (lower bracket position}, 3-3/4" (96mm) H (higher bracket position)
