Used Tronair 20-4500-7000 Oxygen Booster – High-Pressure Manual Oxygen Booster Pump for Aircraft

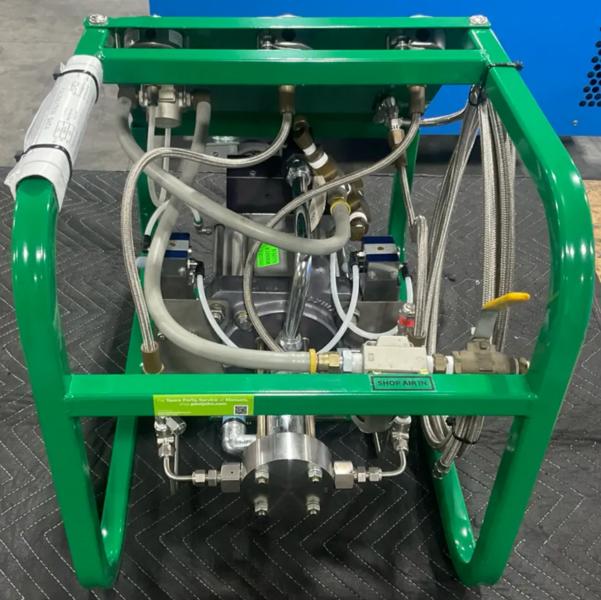

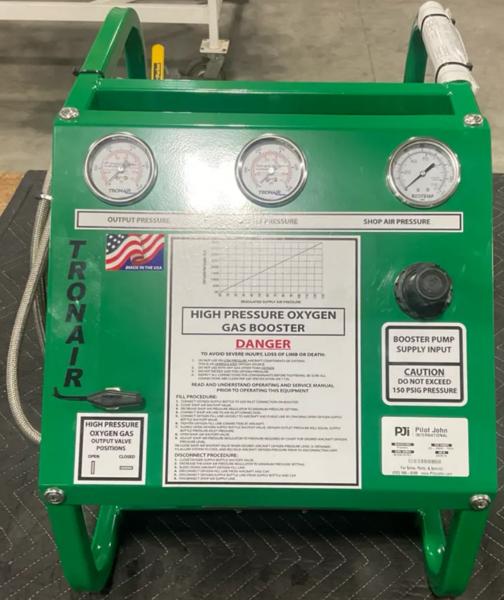

Used Tronair 20-4500-7000 Oxygen Booster

Maximize Oxygen Refill Efficiency with High-Pressure Performance

The Tronair 20-4500-7000 Oxygen Booster is a robust, high-performance unit designed for efficient and safe transfer of oxygen gas from standard supply tanks into high-pressure aircraft oxygen cylinders. Built to meet the rigorous demands of the aviation industry, this booster enables maximum refill capacity—even in remote or mobile environments where full cylinder replacements are not feasible.

Ideal for fixed-base operators (FBOs), maintenance teams, and field operations, the Tronair oxygen booster provides a critical solution for keeping aircraft oxygen systems pressurized, flight-ready, and compliant.

Key Features

• Fills aircraft oxygen cylinders up to 4500 psi

• Portable cart-mounted design with heavy-duty wheels for easy maneuvering

• Dual-stage compression for high-efficiency gas transfer

• Manual operation – requires no external power

• Built-in safety relief valves for overpressure protection

• Compatible with standard aviation oxygen cylinders

• Oxygen-clean components ensure safety and compliance

Specifications

• Model Number: 20-4500-7000

• Maximum Output Pressure: 4500 psi (310 bar)

• Input Pressure Range: 200–1000 psi (13.8–68.9 bar)

• Gas Compatibility: Aviation-grade oxygen (O₂)

• Operation Type: Manual hand-powered booster

• Mounting: Steel-frame rolling cart

• Hose Assembly: Oxygen-rated hoses included

• Weight: Approx. 60–80 lbs (depending on configuration)

• Dimensions: ~36" H × 20" W × 18" D

Typical Applications

• Fixed-Base Operators (FBOs)

• Aircraft maintenance repair and overhaul (MRO) facilities

• General and corporate aviation operations

• Remote airfields and off-grid hangars

• Emergency aviation and military deployment support
